9.5.4 MT-02-02 For North America
The mold plug of the tool is a Han 10 E
®
male insert with Han 10 B
®
double
level housing. See Figure 9-10.

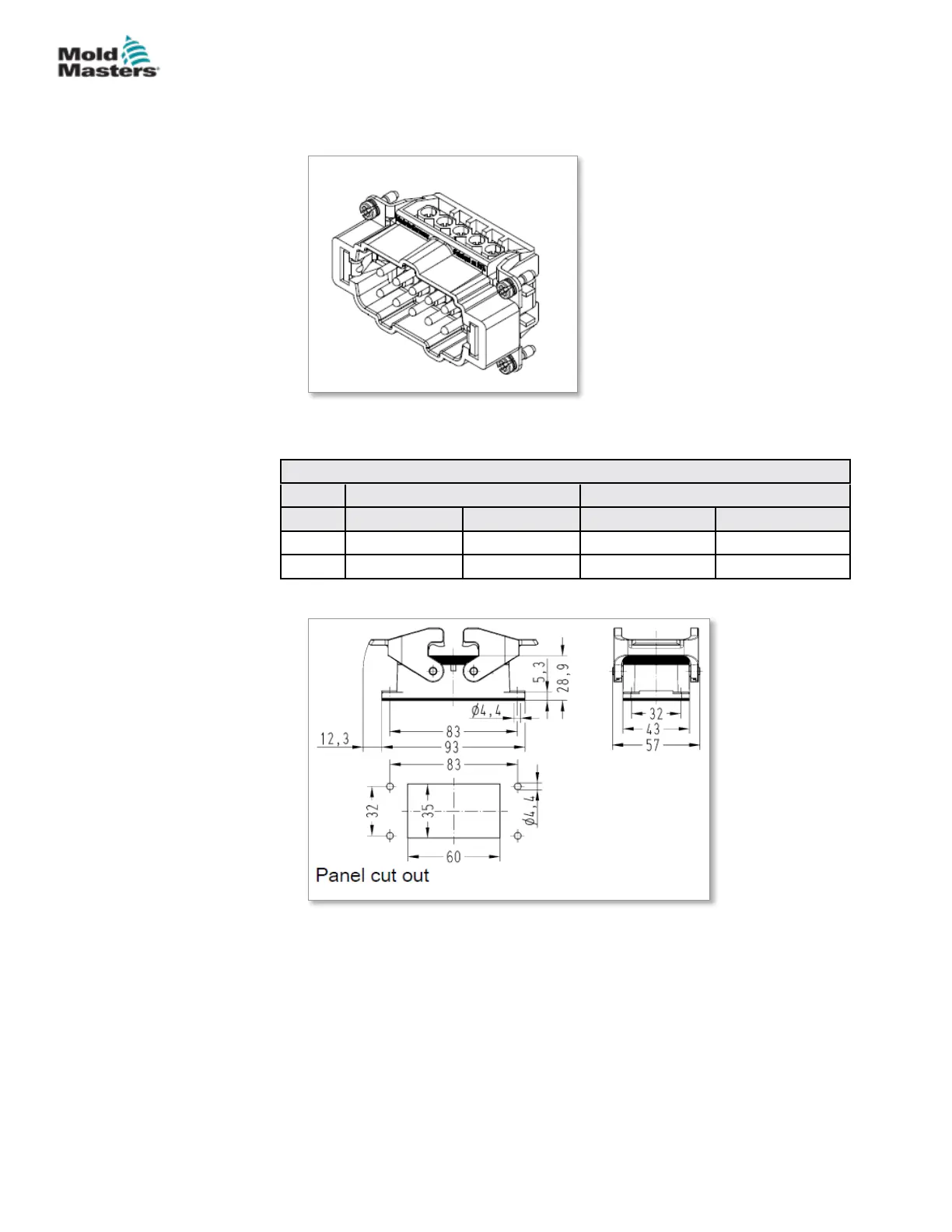

Figure 9-10 Harting Han 10 E
®
insert for MT-02-02
The pin conguration can be found in Table 9-7.
Table 9-7 MT-02-02 Pin Conguration for North America
Power Thermocouple
Zone Supply Return Thermocouple + Thermocouple -
1 Pin 1 Pin 2 Pin 6 Pin 7
2 Pin 4 Pin 5 Pin 9 Pin 10
The cut out dimensions are shown in Figure 9-11.
Figure 9-11 Harting Han 10 E
®
cut out dimensions
Maximum voltage: 220VAC - 10A.
