Mold-Masters TempMaster MT - 9.5.5 MT-04-04; Table 9-8 MT-04-04 Pin Configuration

9.5.5 MT-04-04
One tool connection conguration is used with MT-04-04 system.

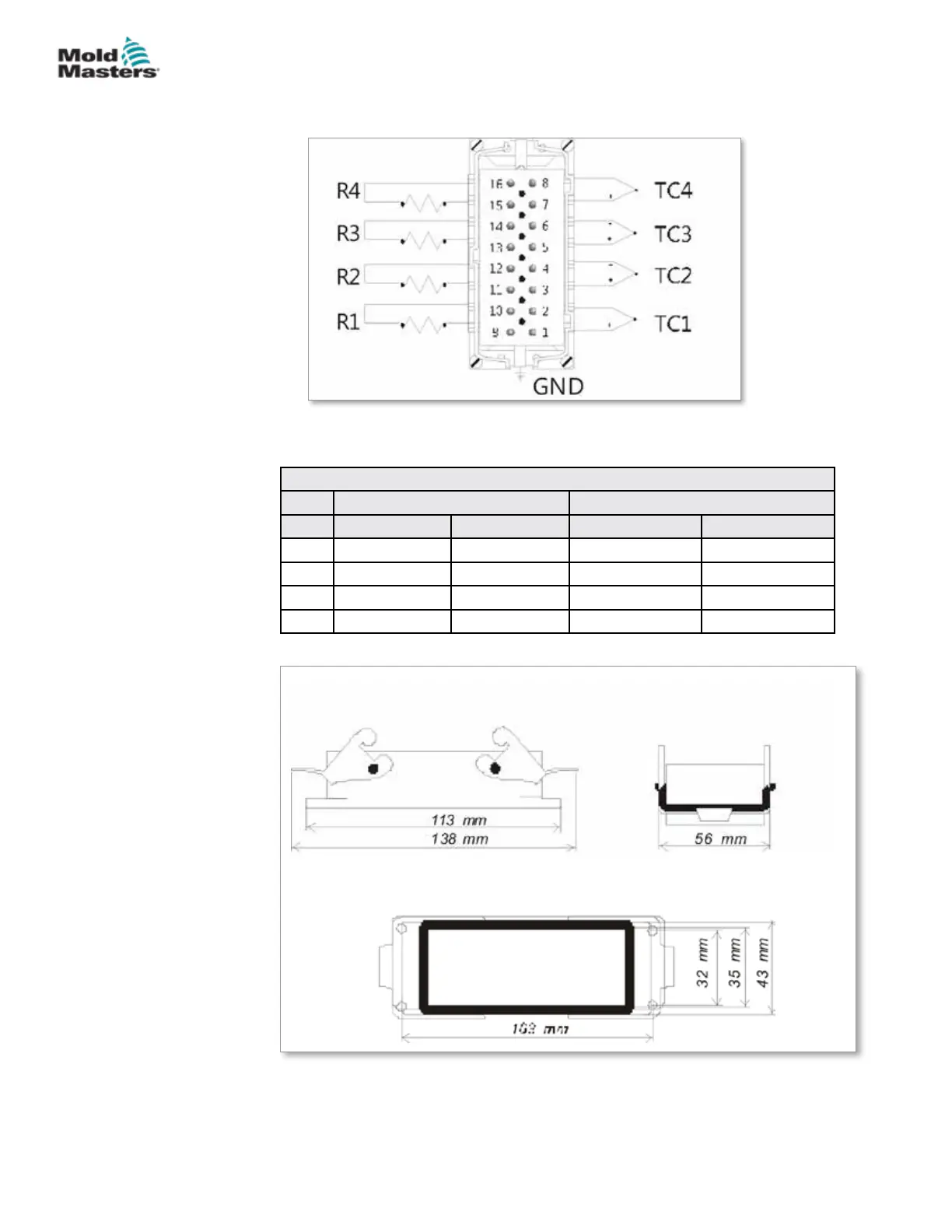

Figure 9-12 Insert for MT-04-04
The pin conguration can be found in Table 9-8:
Table 9-8 MT-04-04 Pin Conguration
Power Thermocouple
Zone Supply Return Thermocouple + Thermocouple -
1 Pin 9 Pin 10 Pin 1 Pin 2
2 Pin 11 Pin 12 Pin 3 Pin 4
3 Pin 13 Pin 14 Pin 5 Pin 6
4 Pin 15 Pin 16 Pin 7 Pin 8
The cut out dimensions are shown in Figure 9-13.
Figure 9-13 MT-04-04 cut out dimensions
Maximum voltage: 230VAC - 16A
