Mold-Masters TempMaster MT - Table 9-10 MT-12-12; MT-18-xx Pin Configuration for UK and Europe

The pin conguration can be found in Table 9-10:
Table 9-10 MT-12-12 / MT-18-xx Pin Conguration for UK and Europe
Power Thermocouple
Zone Supply Return Thermocouple + Thermocouple -
1 Pin 1 Pin 13 Pin 1 Pin 13
2 Pin 2 Pin 14 Pin 2 Pin 14
3 Pin 3 Pin 15 Pin 3 Pin 15
4 Pin 4 Pin 16 Pin 4 Pin 16
5 Pin 5 Pin 17 Pin 5 Pin 17
6 Pin 6 Pin 18 Pin 6 Pin 18
7 Pin 7 Pin 19 Pin 7 Pin 19
8 Pin 8 Pin 20 Pin 8 Pin 20
9 Pin 9 Pin 21 Pin 9 Pin 21
10 Pin 10 Pin 22 Pin 10 Pin 22
11 Pin 11 Pin 23 Pin 11 Pin 23
12 Pin 12 Pin 24 Pin 12 Pin 24

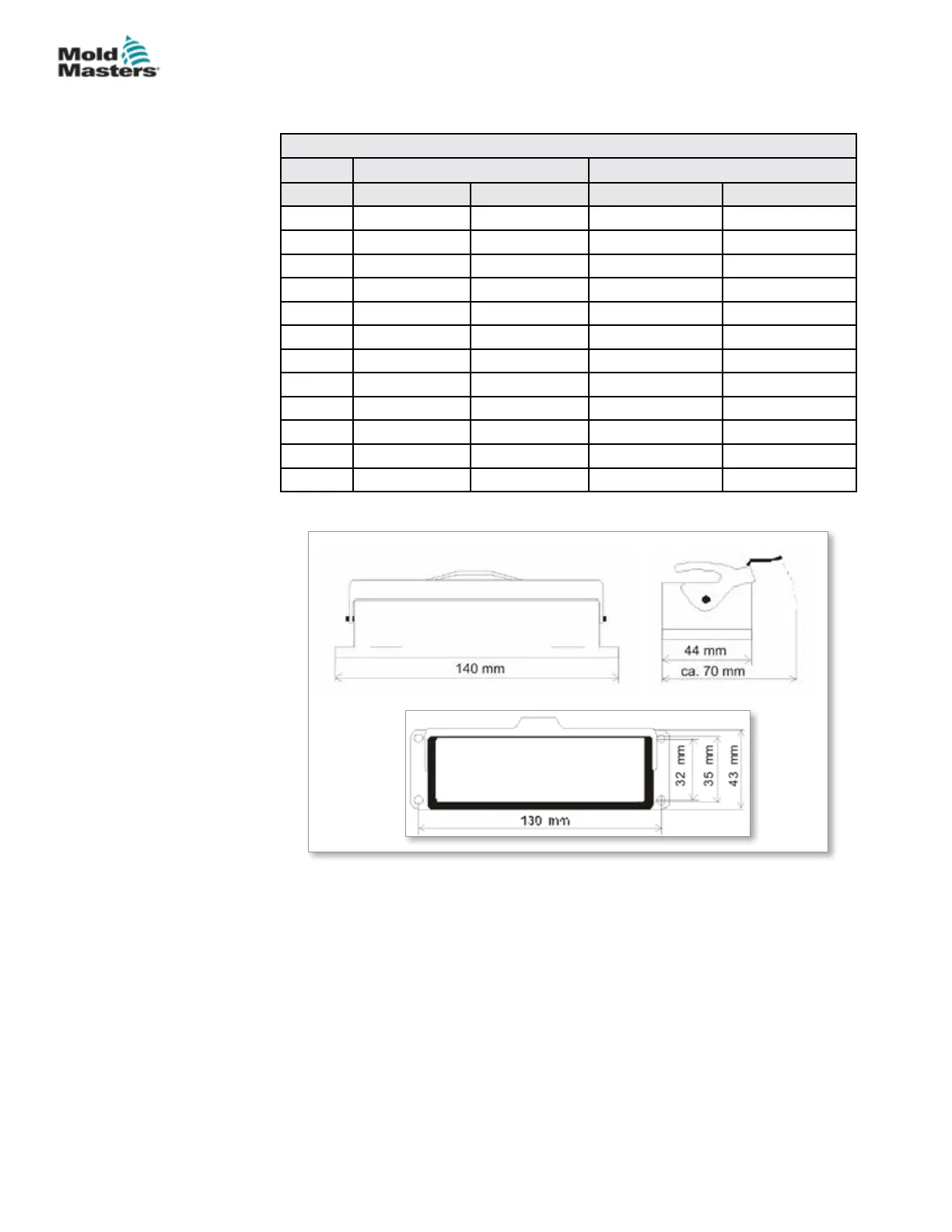

The cut out dimensions are shown in Figure 9-17.
Figure 9-17 MT-12-12 AND MT-18-xx cut out dimensions - UK and Europe
Maximum voltage: 230VAC - 16A
MT-12-12 and MT-18-xx for UK and Europe - continued
