9.5.9 MT-12-12 and MT-18-xx for North America

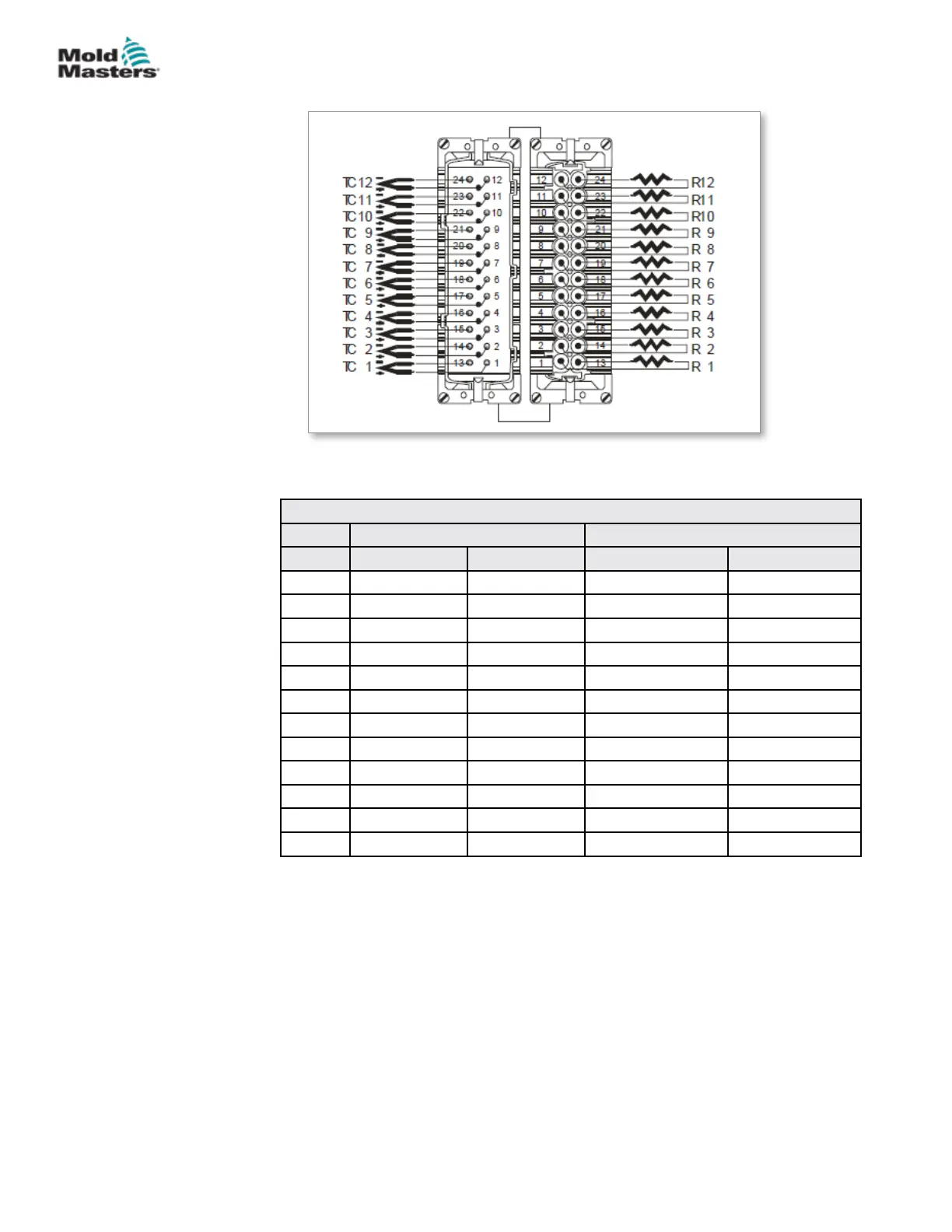

Figure 9-18 MT-12-12 and MT-18-xx inserts (Plug 1 and Plug 2)

The pin congurations for the male insert can be found in Table 9-11:

Table 9-11 MT-12-12 / MT-18-xx Pin Conguration for North America (Plug 1)

Power (Male) Thermocouple (Female)

Zone Supply Return Thermocouple + Thermocouple -

1 Pin 1 Pin 13 Pin 1 Pin 13

2 Pin 2 Pin 14 Pin 2 Pin 14

3 Pin 3 Pin 15 Pin 3 Pin 15

4 Pin 4 Pin 16 Pin 4 Pin 16

5 Pin 5 Pin 17 Pin 5 Pin 17

6 Pin 6 Pin 18 Pin 6 Pin 18

7 Pin 7 Pin 19 Pin 7 Pin 19

8 Pin 8 Pin 20 Pin 8 Pin 20

9 Pin 9 Pin 21 Pin 9 Pin 21

10 Pin 10 Pin 22 Pin 10 Pin 22

11 Pin 11 Pin 23 Pin 11 Pin 23

12 Pin 12 Pin 24 Pin 12 Pin 24
