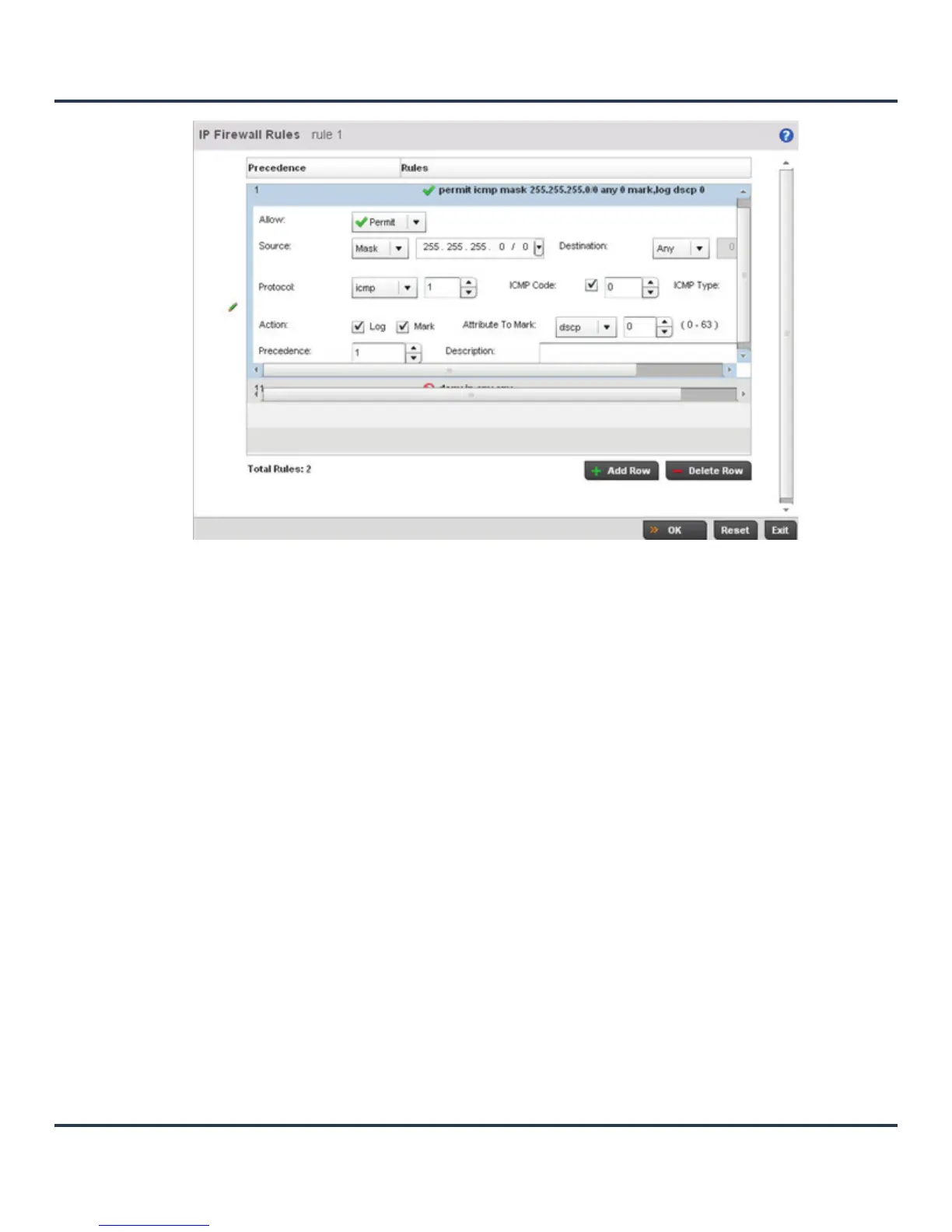

Figure 8-4 IP Firewall Rules Add screen
4. If adding a new rule, provide a name up to 32 characters in length.
5. Define the following parameters for the IP Firewall Rule:
Allow Every IP Firewall rule is made up of matching criteria rules. The action
defines what to do with a packet if it matches the specified criteria. The
following actions are supported:
Deny— Instructs the Firewall to not to allow a packet to proceed to its
destination.
Permit—Instructs the Firewall to allow a packet to proceed to its
destination.
Source Enter both Source and Destination IP addresses. The Access Point uses
the source IP address, destination IP address and IP protocol type as basic
matching criteria. The access policy filter can also include other
parameters specific to a protocol type (like source and destination port for
TCP/UDP protocol. Provide a subnet mask if needed.
Protocol Select the protocol used with the IP rule from the drop-down menu. IP is
selected by default. Selecting ICMP displays an additional set of ICMP
specific Options for ICMP Type and code. Selecting either TCP or UDP
displays an additional set of specific TCP/UDP source and destinations port
options.
