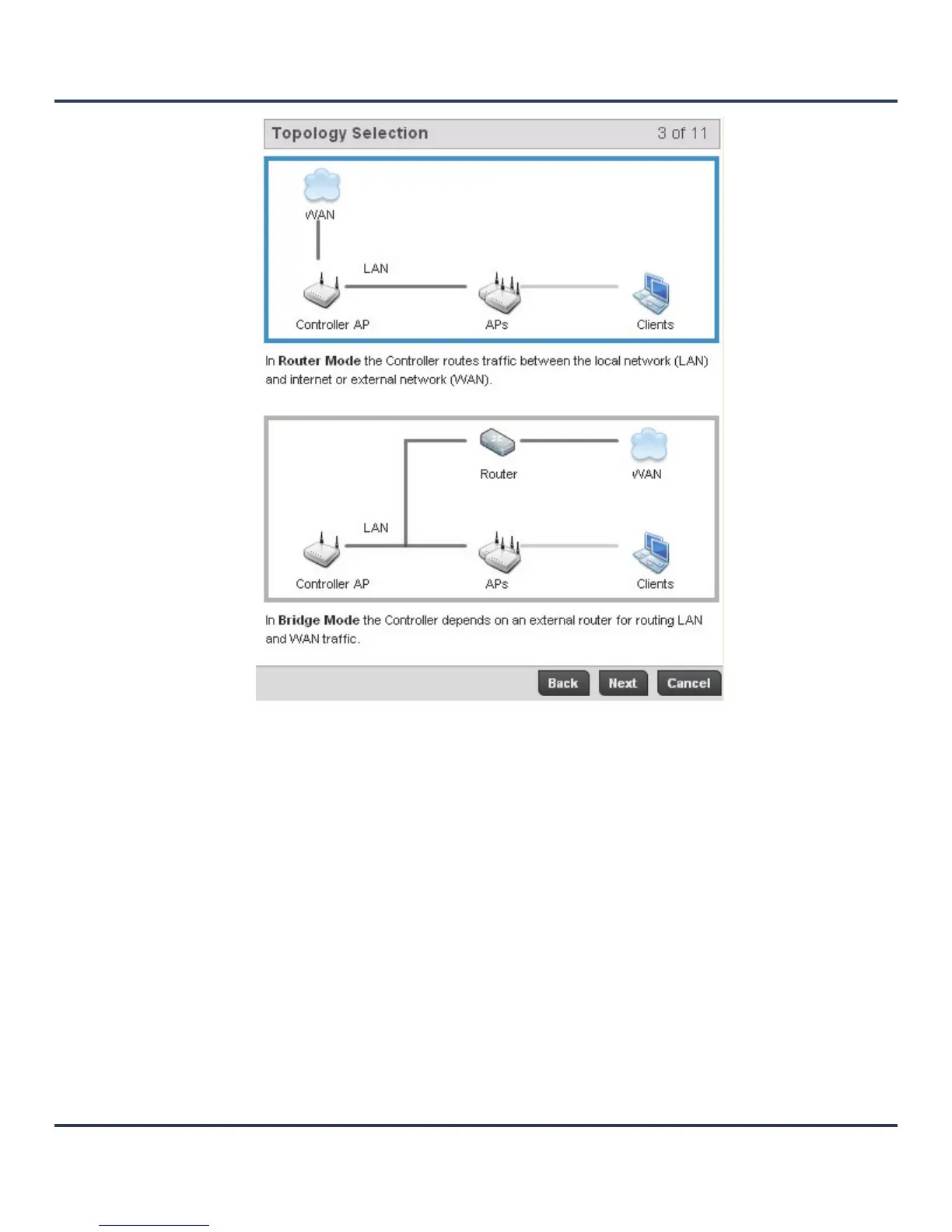

Figure 3-5 Initial Setup Wizard - Topology Selection
11. Select a network topology based on your network’s configuration. The network topology mode
determines which options are available in subsequent screens.
For the purposes of this example select Router Mode.
12. Click the Next button to continue to the LAN Configuration screen.
Router Mode In Router Mode the AP-6511 routes the traffic between the local network (LAN)
and internet or external network (WAN).
Bridge Mode Displays the device’s factory assigned MAC address used as hardware
identifier. The MAC address cannot be revised with the device’s configuration.
