Getting Started
3-7

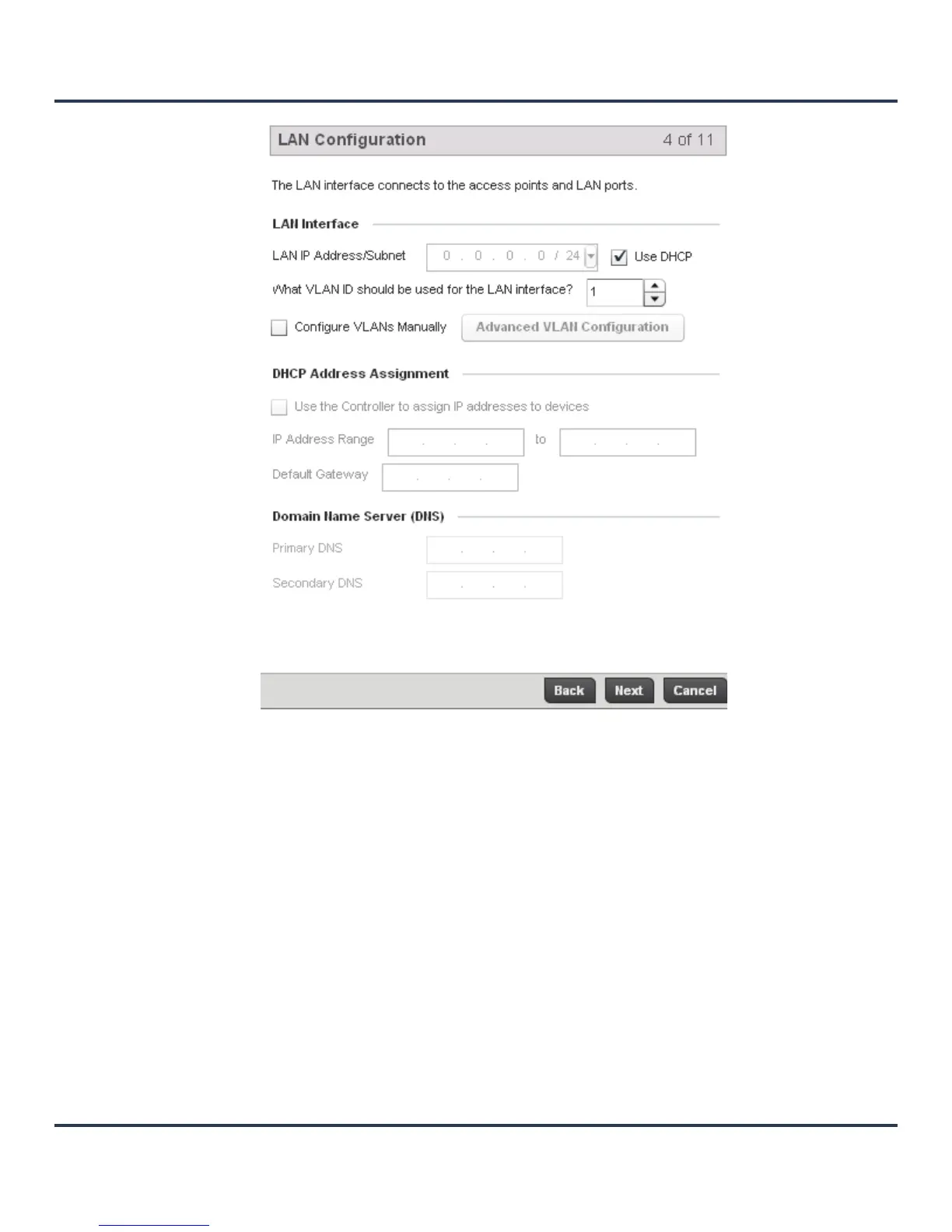

Figure 3-6 Initial Setup Wizard - LAN Configuration
13. The LAN Configuration screen is partitioned into LAN Interface, DHCP Address Assignment and
Domain Name Server (DNS).
The LAN Interface section contains configuration for the LAN IP Address and Subnet as well as VLAN
configuration.
LAN IP Address /
Subnet
Enter an IP Address and a subnet for the LAN interface. If the Use DHCP
checkbox is selected this field is not configurable.
Use DHCP To enable automatic network configuration using a DHCP Server select the Use
DHCP checkbox. If this option is enabled the LAN IP Address/Subnet, DHCP
Address Assignment and Domain Name fields are populated by the DHCP
server.
What VLAN ID should
be used for the LAN
interface
Select the VLAN ID to associate with the LAN Interface. The default setting is
VLAN 1.
