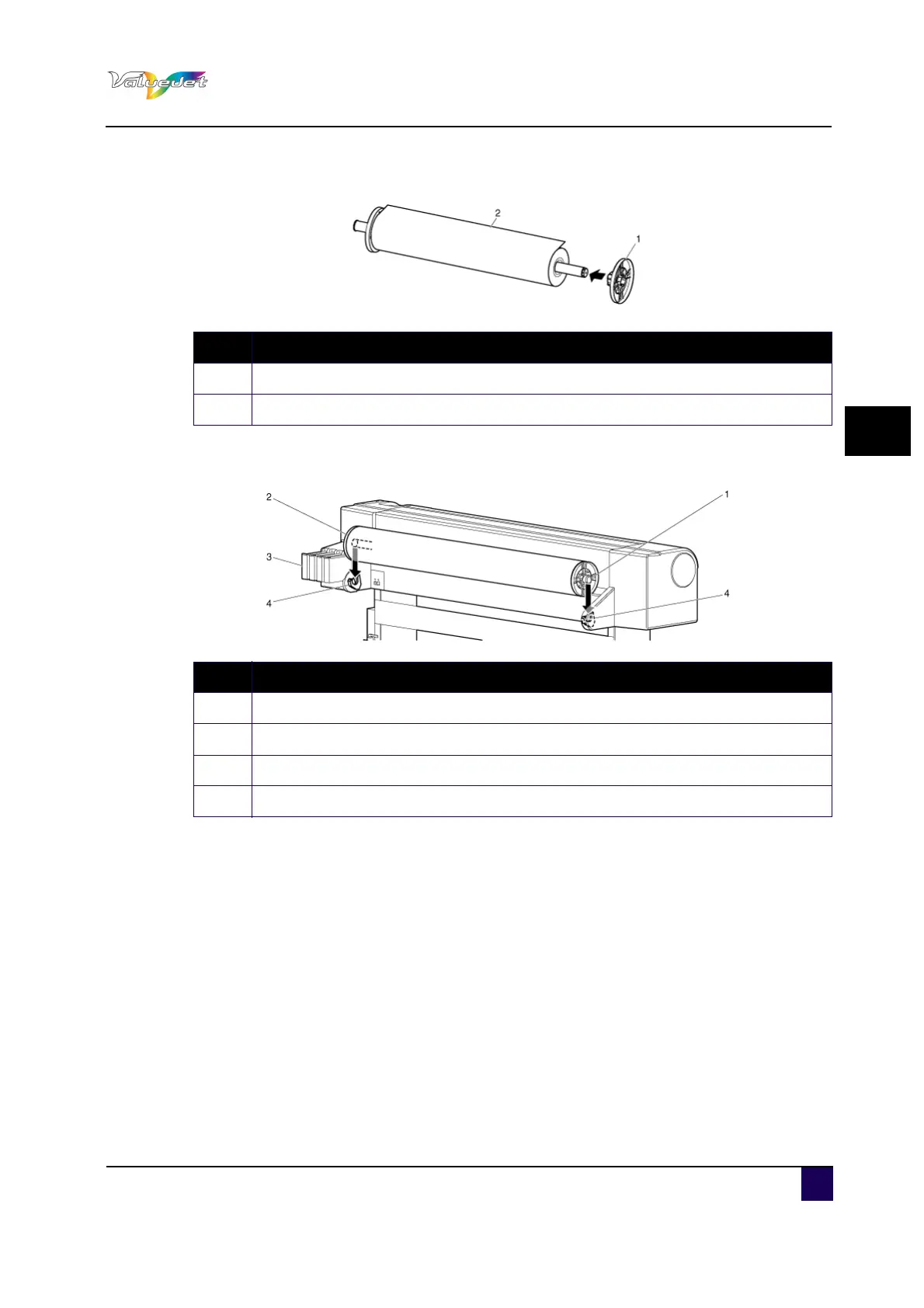

Step 3: Attach the movable flange firmly to the roll media core.
Step 4: Set the scroller to the scroller receiver facing the fixed flange to the side of the ink
cartridge slot.
N° Description
1 Movable flange
2 Roll media
N° Description
1 Scroller
2 Fixed flange
3 Ink cassette slot
4 scroller receiver
