Before using VJ-1624X/1624WX/1924WX OPERATION MANUAL
130 3.6 Print quality adjustment
• The confirmation pattern will be printed.
• After the confirmation pattern is printed, Operation panel returns to “Adj. 1: Confirm Ptn.”.

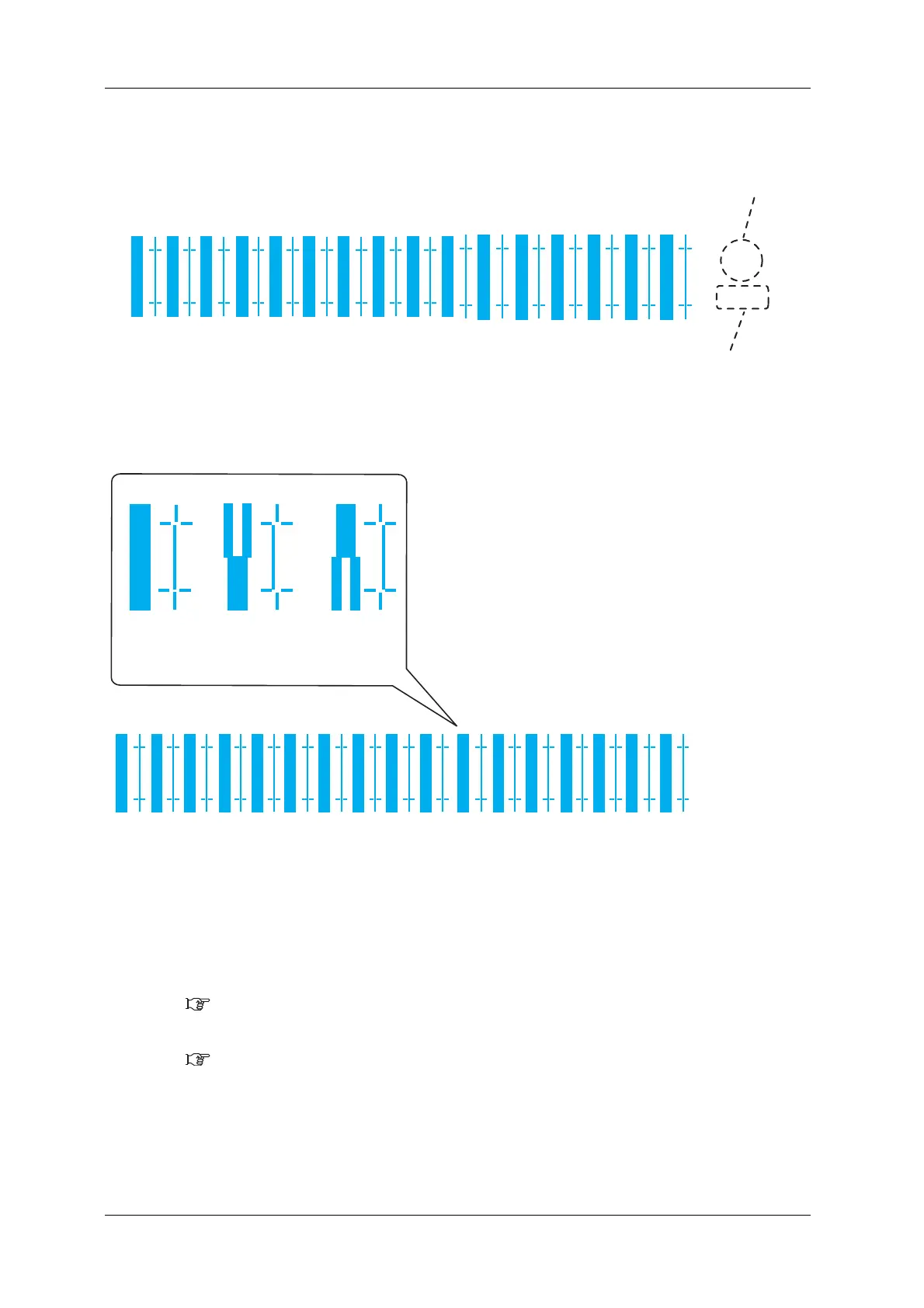

4. Confirm that the confirmation pattern printing result is as follows.
a. When the printing result is Adequate;
You do not need perform print quality adjustment.
The procedure for print quality adjustment is complete.
b. When the printing result is Not adequate;
You need to perform print quality adjustment.
• Perform rough adjustment when the degree of misalignment is big.
3.6.1.2 Standard rough adjustment pattern
• Perform micro adjustment when the degree of misalignment is small.
3.6.1.3 Standard micro adjustment pattern
Q3/Q4
B
Pattern name
Current Print Mode
Q3/Q4
B
Adequate Not adequate Not adequate
