58 3.3 Filling ink

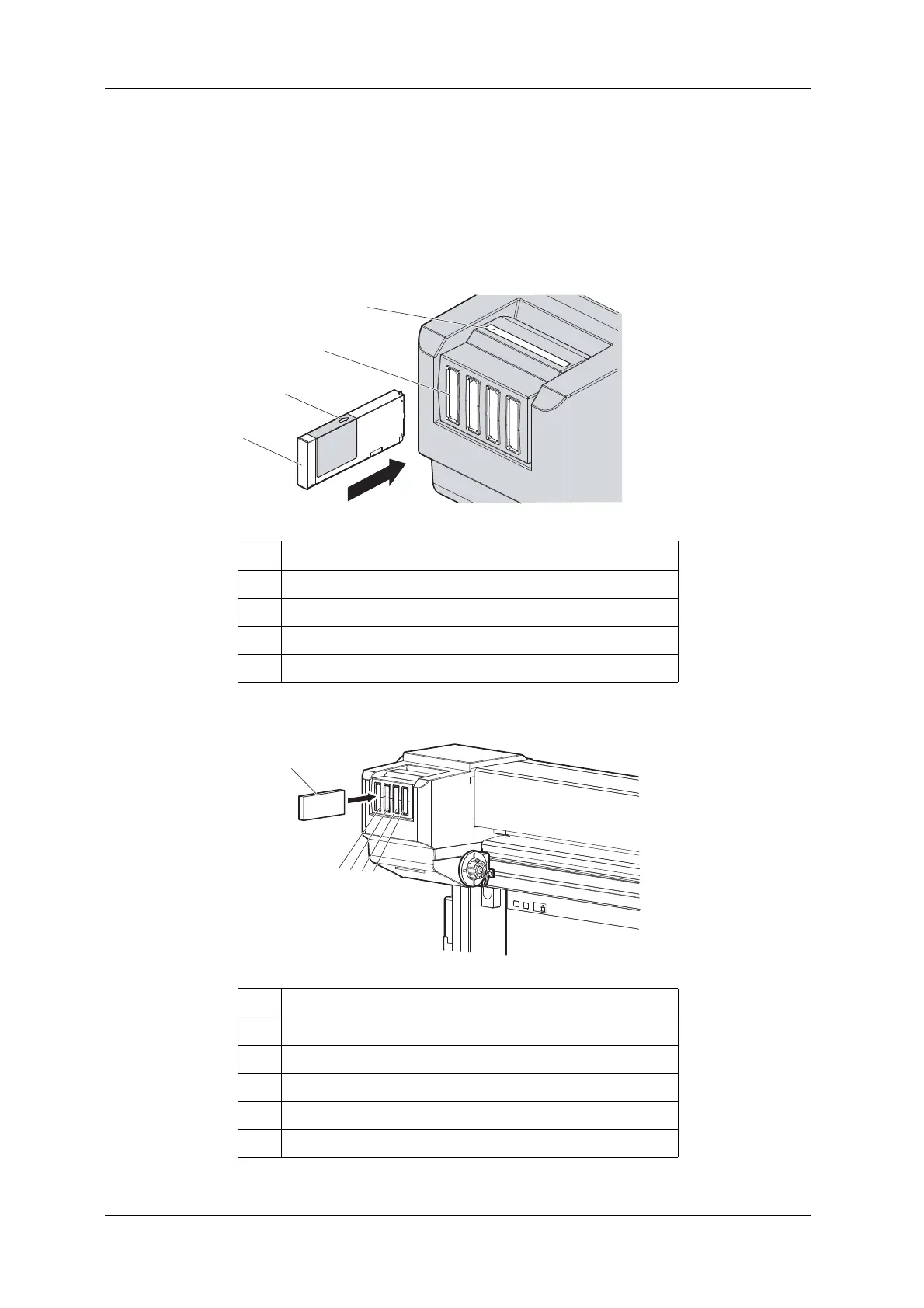

9. Install Ink cartridges (K, C, M, Y) in Ink cartridge slots on the back of the printer.
• Shake Ink cartridges 2 to 3 times lightly before installing them into Ink cartridge slots.
• Make sure that Ink cartridges are inserted into the correct Slots.
Match the ink color label with the ink color before inserting Ink pack.
• Keep the arrow of Ink cartridge facing up and insert it into the printer.
• Insert Ink cartridges all the way in Ink cartridge slots.
No. Name
1 Ink cartridge
2Arrow
3 Ink cartridge slots
4 Ink color labels
No. Name
1 Ink cartridge
2 Ink cartridge slot K
3 Ink cartridge slot C
4 Ink cartridge slot M
5 Ink cartridge slot Y
