96 3.4 Loading media

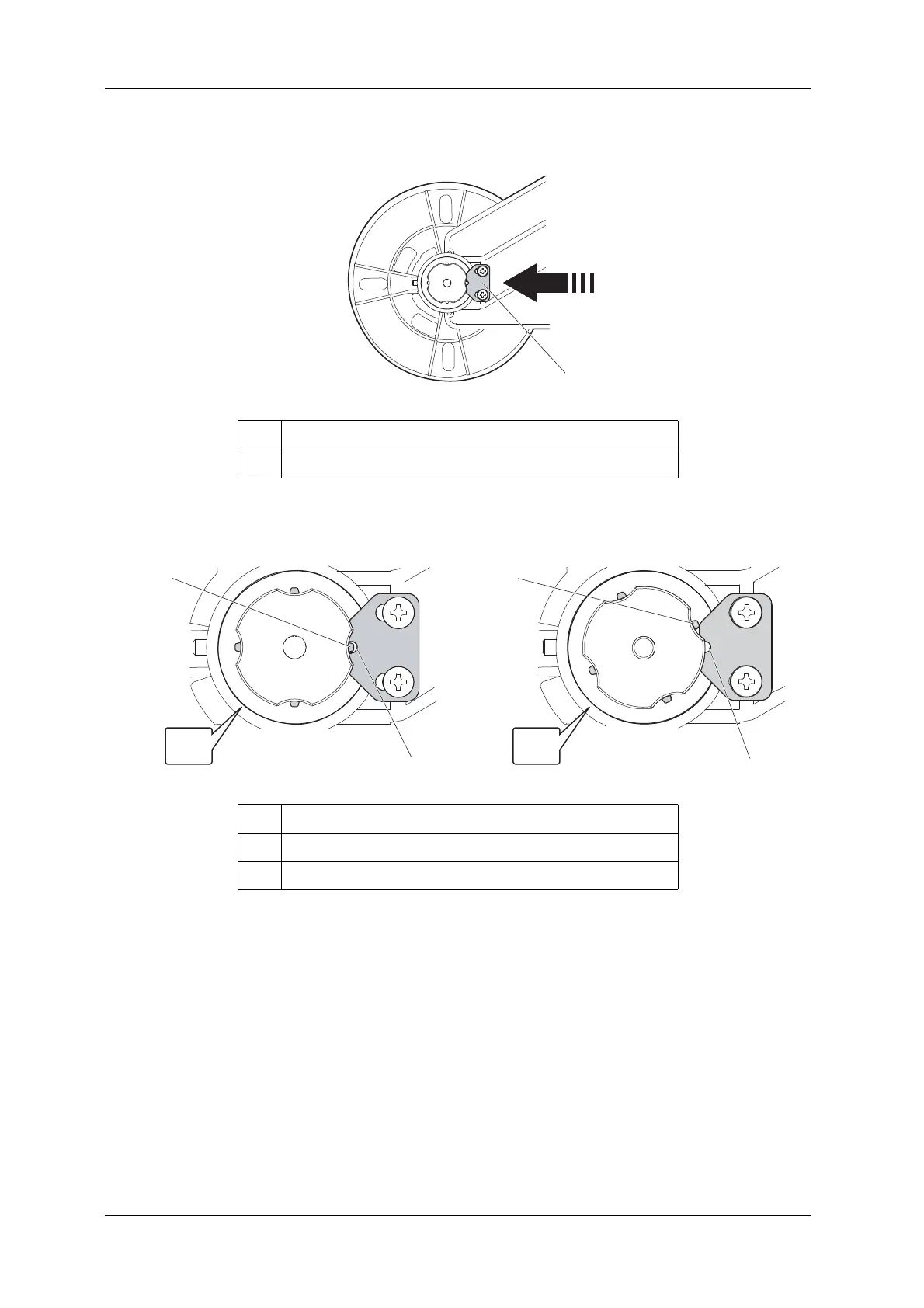

b. Slide Damper drive switching plate fully in the direction of the arrow in the illustration below.
c. Make sure that the protruding portion of Damper stopper is in the groove of Damper drive
switching plate.
No. Name
1 Damper drive switching plate
No. Name
1 Protruding portion of Damper stopper
2 Groove of Damper drive switching plate
1
2
1
2
NGOK
1
