VJ-1624X/1624WX/1924WX OPERATION MANUAL Before using
3.4 Loading media 97

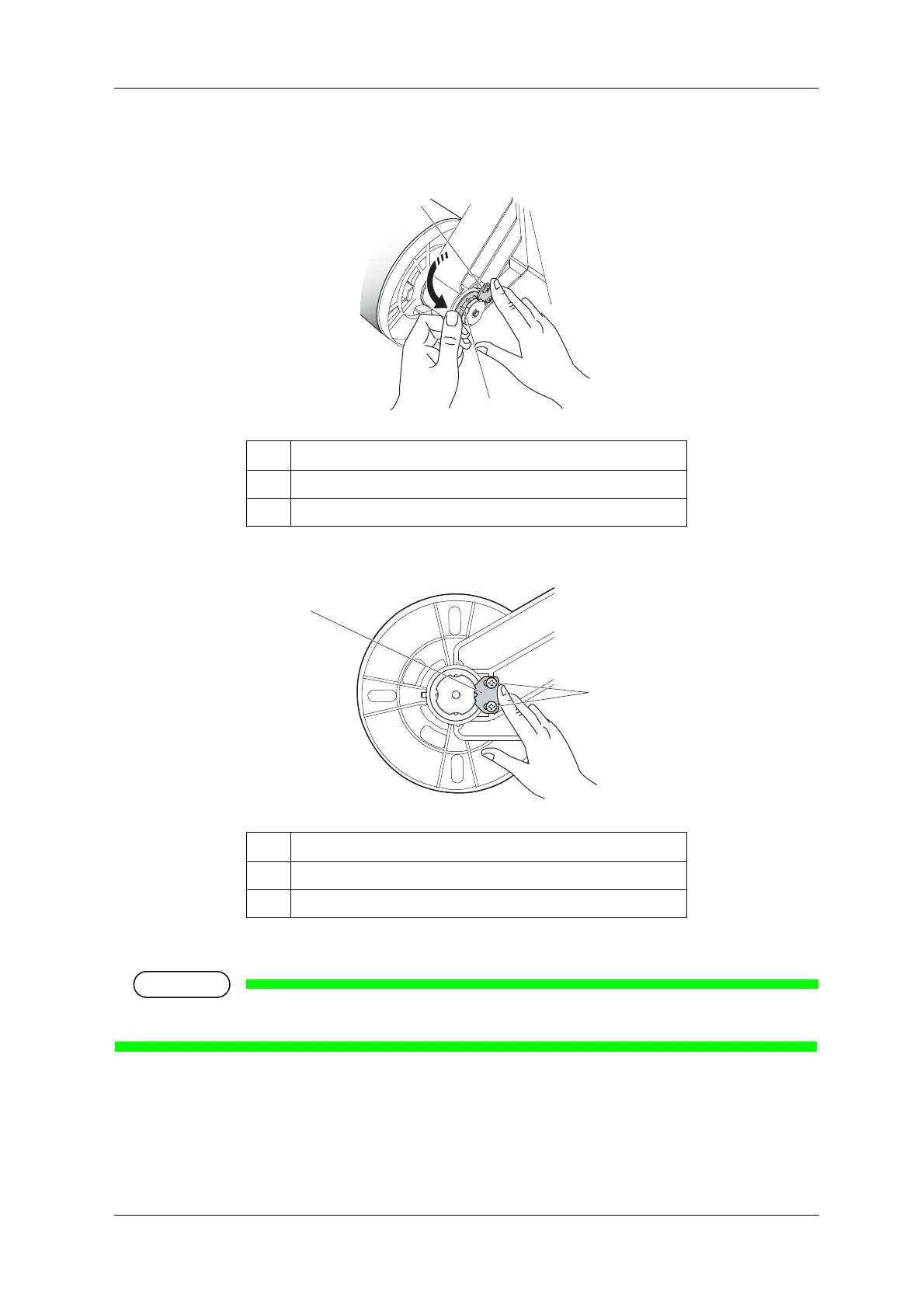

d. If it is not in the groove, hold Damper drive switching plate and rotate Damper stopper, and then
put the protruding portion in Damper drive switching plate.
e. Hold Damper drive switching plate and tighten the screws (2 pieces).
f. Make sure that Damper stopper does not rotate.
Once Damper stopper is fixed, the torque can be changed by simply using Damper lug (Step 2).
No. Name
1 Damper drive switching plate
2 Damper stopper
No. Name
1 Damper drive switching plate
2Screw
