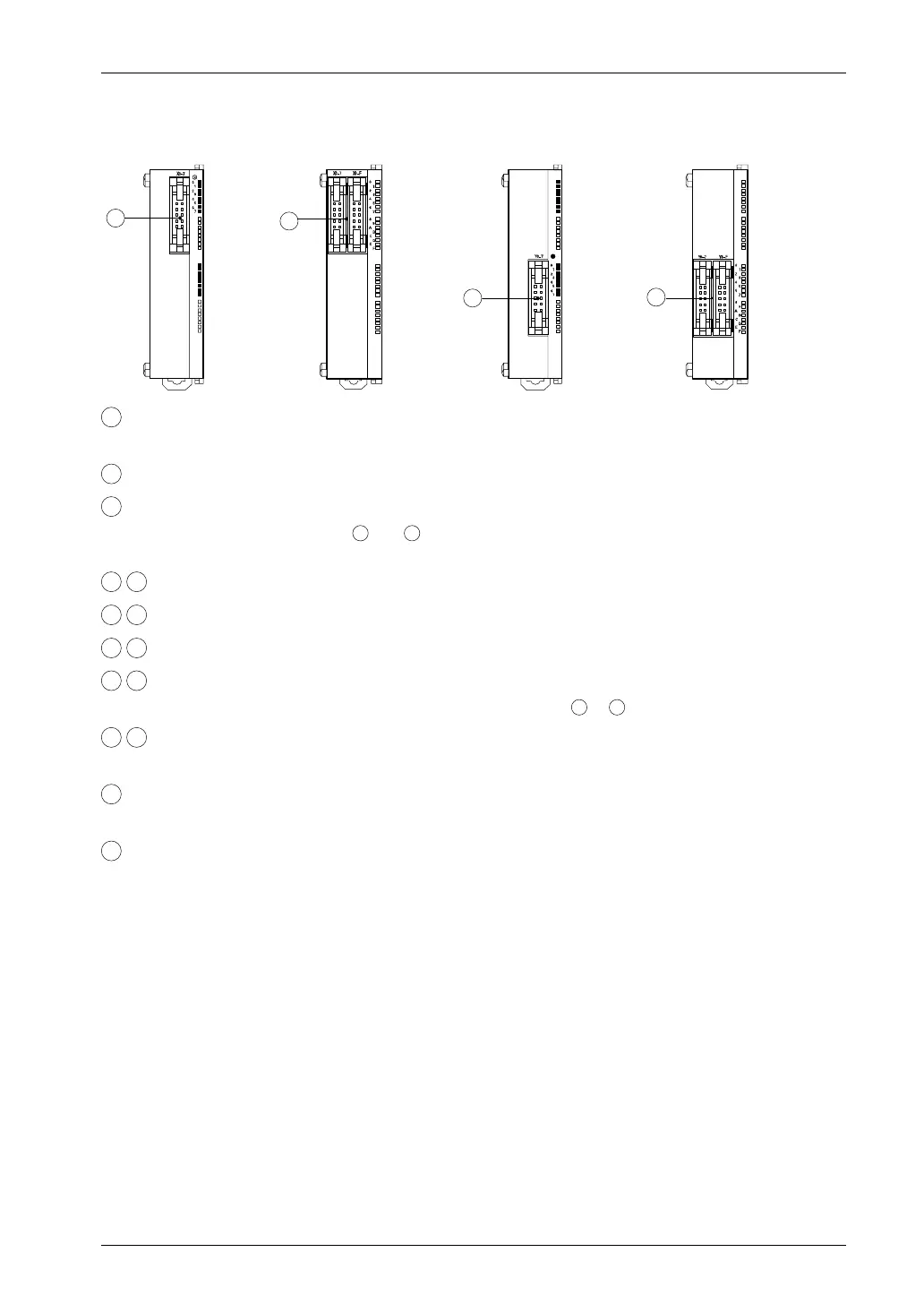

FP0 Hardware 3.1 Parts and Terminology
3-3Matsushita Electric Works (Europe) AG
E16XE8X
E8YT/E8YP
E16YT/E16YP
12
13
14
15
1
Power supply connector
Supply 24V DC. It is connected using the power supply cable (AFP0581) that comes with the unit.
2
Input terminal (9-pin)
3
Output terminal (9-pin)
The input and output terminals (
2
and
3
) use a terminal block socket made by Phoenix Contact Co.
(product number: 1840434) (see page 9 - 12).
4
12
Input connector (10-pin)
5
14
Output connector (10-pin)
6
13
Input connector (10-pin 2)
7
15
Output connector (10-pin 2)
Use a MIL type connector for the input and output connectors (
4
to
15
) (see page 9 - 14).
8
11
Expansion hook
is used to secure expansion units.
9
Expansion connector
connects an expansion unit to the internal circuit of the expansion I/O unit (see page 8 - 5).
10
DIN rail attachment lever
16
allows simple attachment to a DIN rail.
The lever is also used for installation on FP0 slim type mounting plate (AFP0803).
