FP0 HardwareExpansion I/O Units
3-4
Matsushita Electric Works (Europe) AG

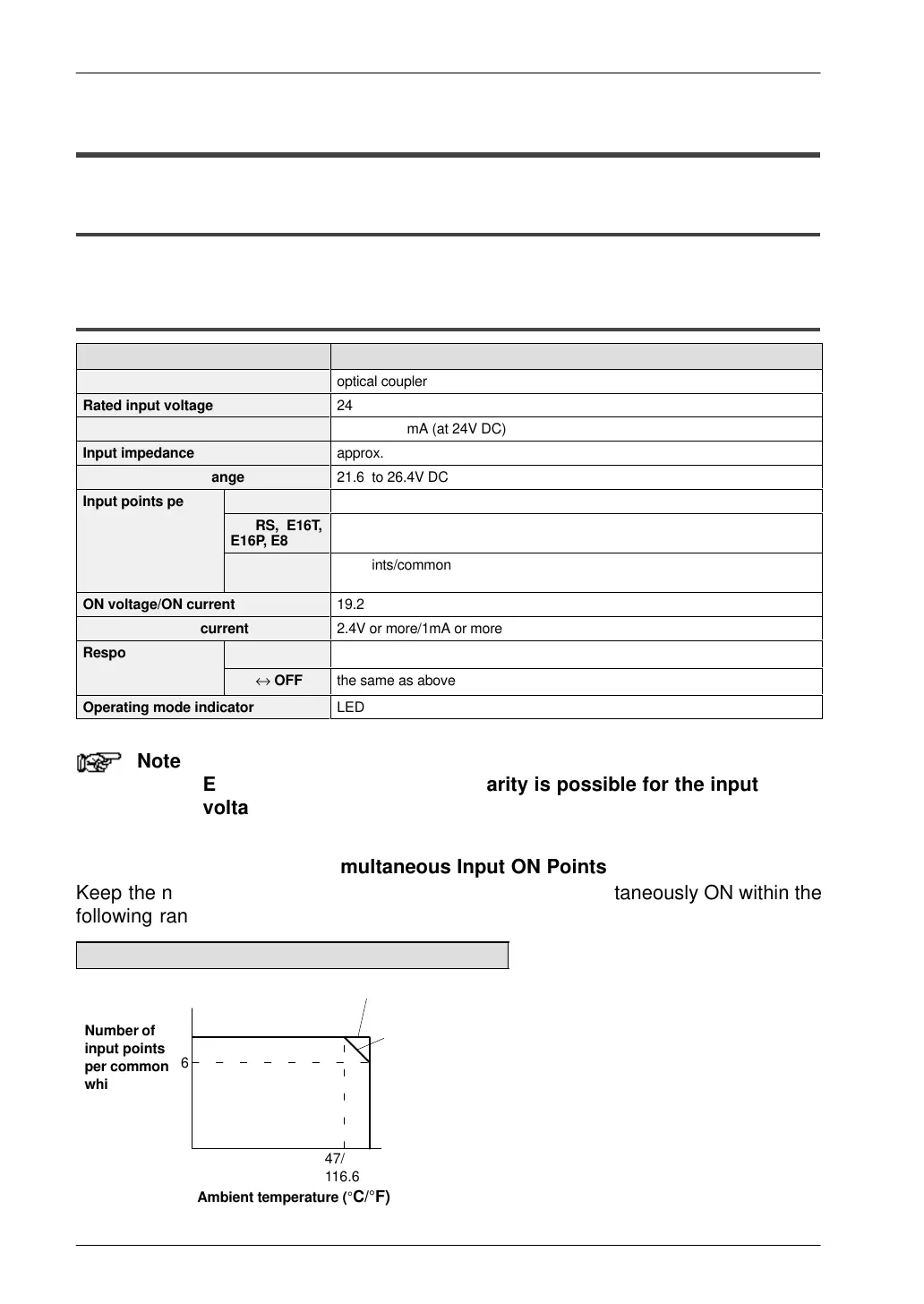

3.2 Specifications
3.2.1 General Specifications
For more details on the general specifications, see page 2-5.
3.2.2 Input Specifications
Item Description
Insulation method
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
optical coupler
Rated input voltage
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
24V DC
Rated input current
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
approx. 4.3mA (at 24V DC)
Input impedance
approx. 5.6kΩ
Operating voltage range
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
21.6 to 26.4V DC
Input points per E8RS
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
4 points/common
common (see note)
E16RS, E16T,
E16P, E8X
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
8 points/common
E32T, E32P,
E16X
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
16 points/common
ON voltage/ON current
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
19.2V or less/3mA or less
OFF voltage/OFF current
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
2.4V or more/1mA or more
Response time OFF ↔ ON
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
2ms or less
(at 24V DC and
25°C/66°F)
ON ↔ OFF
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
the same as above
Operating mode indicator
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
LED
Note
Either positive or negative polarity is possible for the input
voltage supply.
Limitations on Number of Simultaneous Input ON Points
Keep the number of input points per common which are simultaneously ON within the
following range as determined by the temperature.
FP0–E16RS
Number of
input points
per common
which are
simultaneously
ON
8
at 26.4V DC
at 24V DC
Ambient temperature (C/F)
6
47/
116.6
55/
131
