NEC SL1100 - Figure 1-17 Automatic Night Service

Night Group
Mode
Time pattern Set Time No. Start End Night Mode
1 1 3 1900 0000 2
19:00 - 06:00
Power OFF
(PKG 2)
KSU
Power ON
(PKG 3)
2 F
1 F

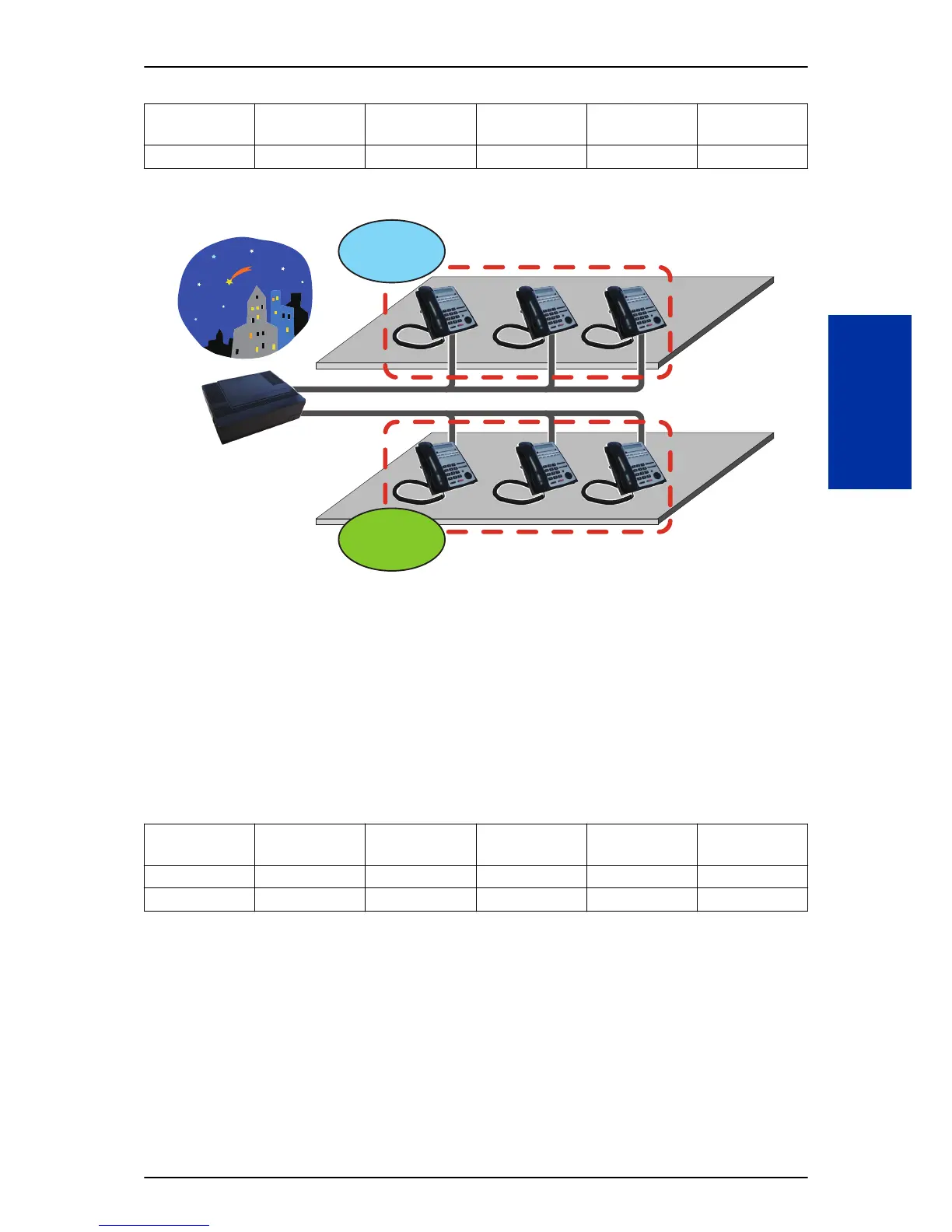

Figure 1-17 Automatic Night Service
To cut the power for package 2 and 3 only on Sunday
<Program>
PRG 20-42-01: PKG 2 Night Mode Service Group No. 1
PRG 20-42-01: PKG 3 Night Mode Service Group No. 1
PRG 20-43-01: PKG 2 Night Mode 1, Eco Mode 1 / Night Mode 2, Eco Mode 0
PRG 20-43-01: PKG 3 Night Mode 1, Eco Mode 1 / Night Mode 2, Eco Mode 0
PRG 12-02: Automatic Night Service Patterns
Night Group
Mode
Time pattern Set Time No. Start End Night Mode
1 1 1 0100 0100 1
1 2 1 0100 0100 2
PRG 12-03: Weekly Night Service Switching
Night Group Mode 1;
• Sunday Time pattern 2
• Monday Time pattern 1
• Tuesday Time pattern 1
• Wednesday Time pattern 1
• Thursday Time pattern 1
