NEC SL1100 - Figure 1-34 Webpro End User Screen

WebPro End User Programming
WebPro has an End User Login for which extensions can program functions for their own extension.
They can program Function keys, Virtual Extension ringing assignment, Station Speed Dial, InMail
features, Station Name, Call Forwarding, Display Language, Ring Tone and End User Password.
To login to the WebPro End User Programming, input the system IP (default: 192.168.0.10) or
NetBIOS Address (default: http://SL1100) like you would logging into WebPro. Use the extension
number as User Name and Password is assigned in PRG 90-28-01 (default: 1111).

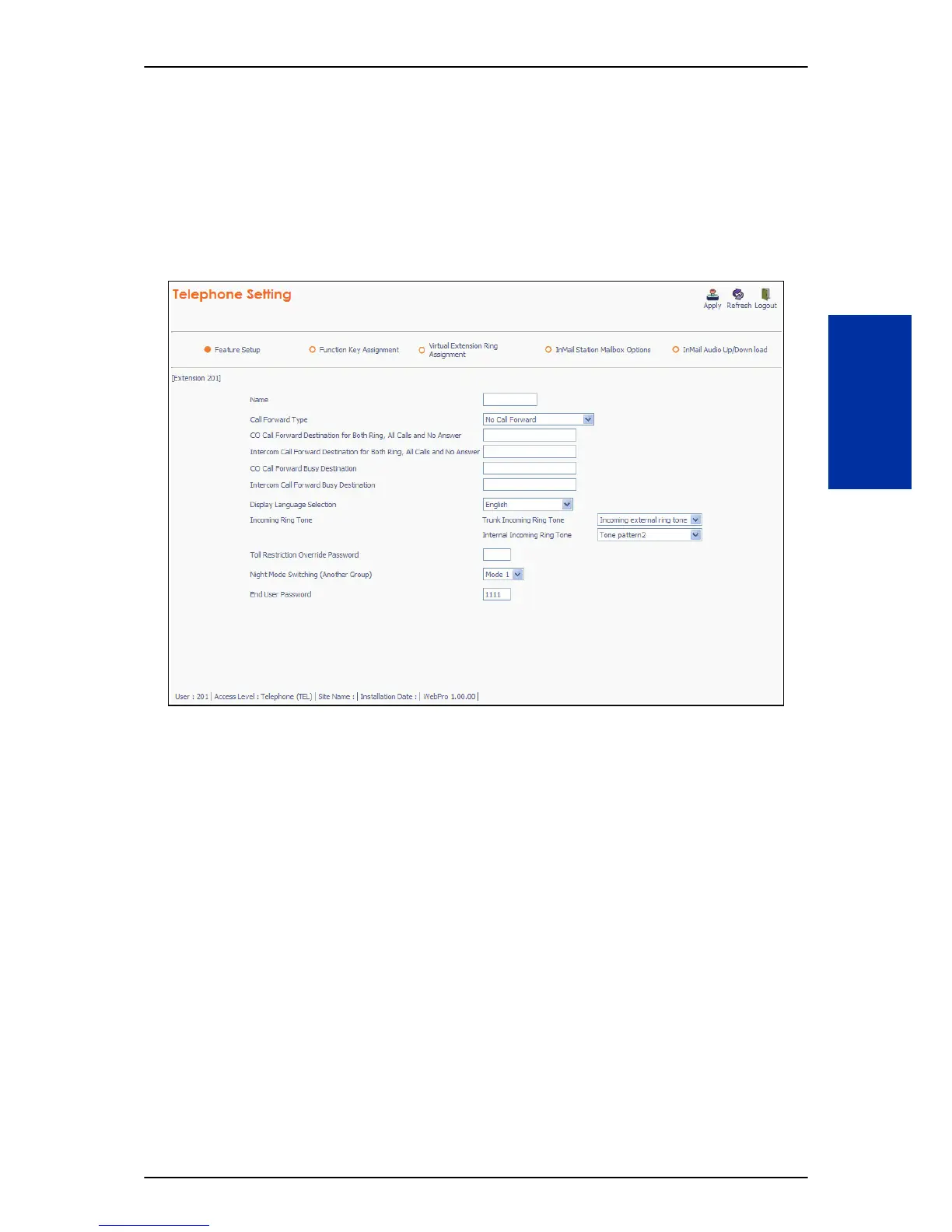

Figure 1-34 WebPro End User Screen
Conditions
• When connecting via a dial up connection, a Dial Up Connection (PPP) must be configured in
Windows Network Connections.
• When uploading via a Dial Up connection, uploading card configuration (Hardware Upload) is not
supported.
ISSUE 2.0 SL1100
Features and Specifications Manual 1-579
P
