NEC SL1100 - Figure 1-27 Example - SIP Terminal

Program
Number
Program Name Default
15-05-02 IP Telephone Terminal Basic Data Setup - IP
Phone Fixed Port Assignment
00-00-00-00-00-00
15-05-07 IP Telephone Terminal Basic Data Setup - Using
IP Address
0.0.0.0
15-05-15 IP Telephone Terminal Basic Data Setup - CO-
DEC Type
1 (Type 1)
15-05-16 Authentication Password None
15-05-18 IP Telephone Terminal Basic Data Setup - IP Du-
plication Allowed Group
0
15-05-40 Calling name display info via trunk for standard
SIP
0
15-05-43 Video Mode 0

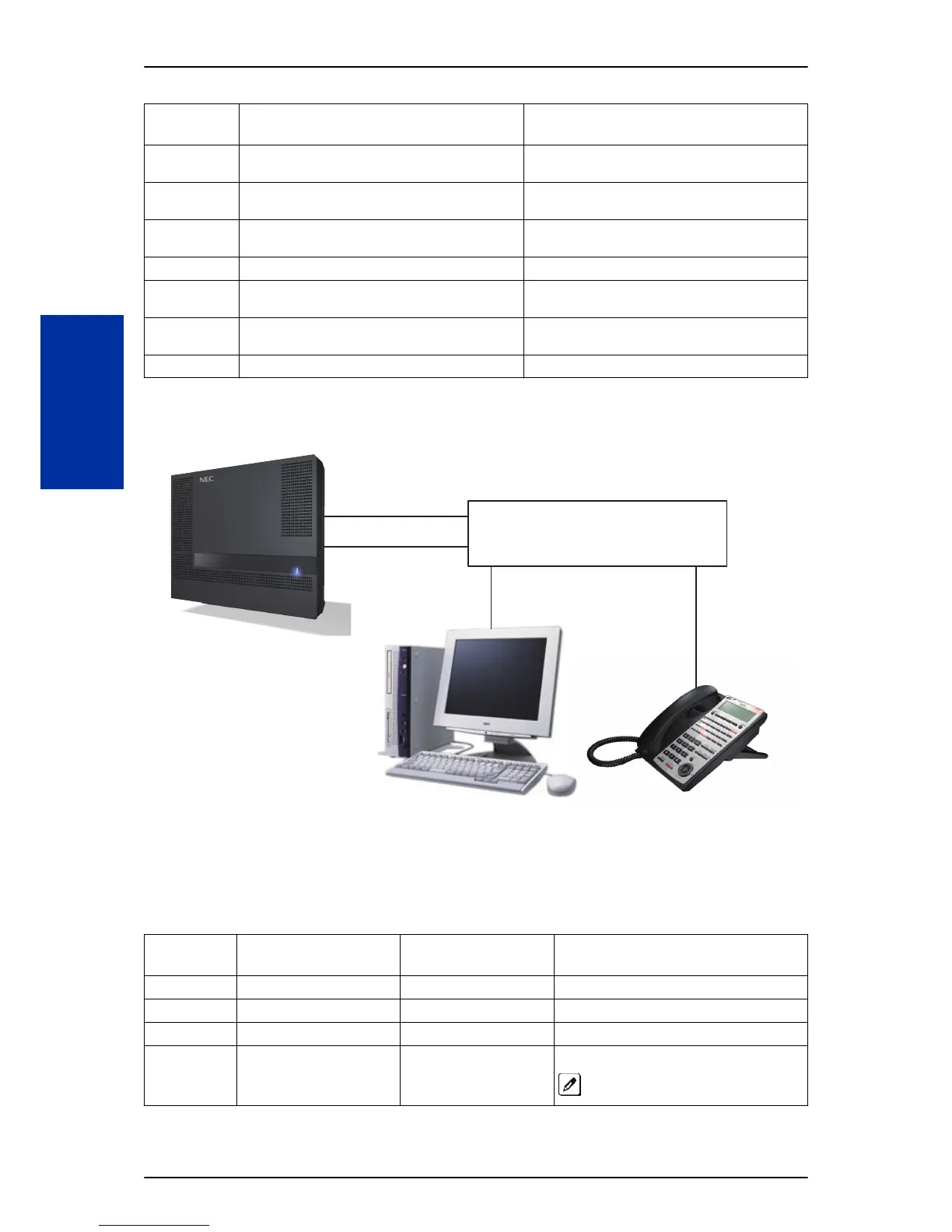

SIP Terminal Example
V
oIPDB :
Subnet Mask :
Default Gateway :
192.168.1.20
255.255.255.0
192.168.1.254
SIP Softphone
SIP Terminal
VoIPDB
Switch/Hub
Figure 1-27 Example - SIP Terminal
The following menu items require programming in your SIP IP Terminal (consult SIP Terminal vendor
specific documentation):
Program/
Item No.
Description/Selection Default Assigned Data Comments
1 IP Address 0.0.0.0 Enter a Static IP Address for the SIP Terminal.
2 Subnet Mask 0.0.0.0 Enter the Subnet Mask Address.
3 Default Gateway 0.0.0.0 Enter the Default Gateway address.
4 VoIPDB Address 0.0.0.0 Enter the VoIPDB IP Address.
This information can be located in PRG
10-12-09 SL1100 Network Setup IP Address.
SL1100 ISSUE 2.0
1-450
IP Single Line Terminal (SIP)
