GS108T Smart Switch Software Administration Manual
Getting Started with Switch Management 1-7
v1.0, May 2007
If you are starting with an “out of the box” switch and are not using the SmartWizard Discovery
utility, you must initially configure your host PC to be on a network segment to match the default
parameters of the switch, which are:
• IP address: 192.168.0.239
• Subnet Mask: 255.255.255.0
Later, you may want to change the network parameters to match those of your network (this
procedure is described in Chapter 3, “Managing System Settings” in “Setup” on page 3-6). Your
host PC network parameters must then also be set back to match your network.

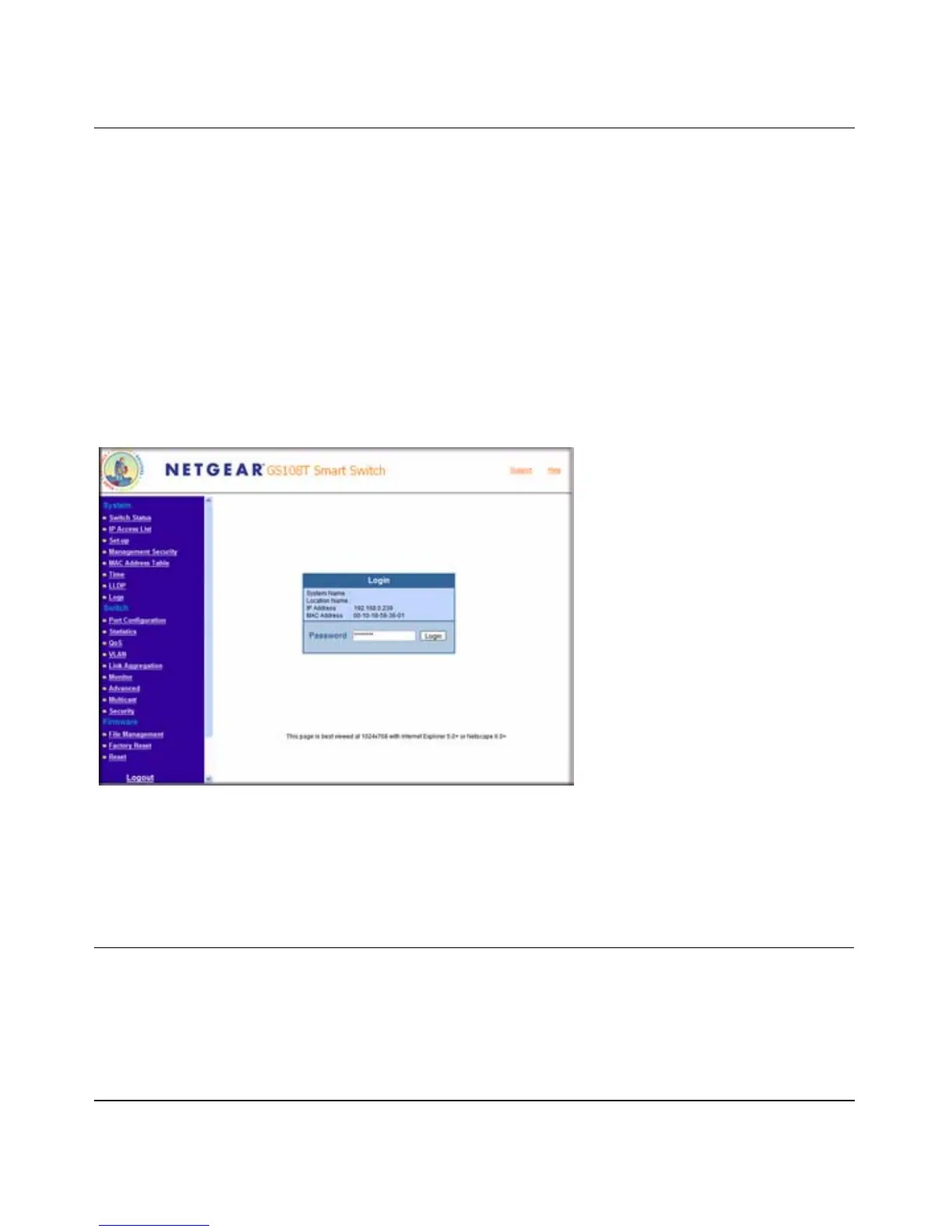

Clicking Web Access on the SmartWizard Discovery utility or accessing the switch directly
displays the page shown below.
.
Use this page to proceed to management of the switch covered in Chapter 2, “Introduction to the
Web Browser Interface”.
Additional Utilities
Alternatively, from the main page shown on Figure 1-1 on page 1-3 you can access these
additional functions:
• “Password Change”
Figure 1-5

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
