GS108T Smart Switch Software Administration Manual
Managing System Settings 3-19
v1.0, May 2007
• Number of Deletes: Total number of deletes.
• Number of Drops: Total LLDP frames dropped.
• Number of Ageouts: Total LLDP Ageouts occurred.
• Tx Frames: Total number of LLDP frames transmitted from a given port.
• Rx Frames Discarded: Total number of received and discarded LLDP frames on a given port.
• Rx Frames Errors: Total number of error LLDP frames received, on a given port.
• Rx Frames Total: Total number of LLDP frames received on a given port.
• Rx Frames TLVs Discarded: Total number of TLVs discarded in received LLDP frames on a
given port.
• Rx Frames TLVs Unrecognized: Total number of TLVs unrecognized in received LLDP
frames, on a given port.
• Rx Frames Ageouts: Total Ageouts of received LLDP frames on a given port.
Local Information

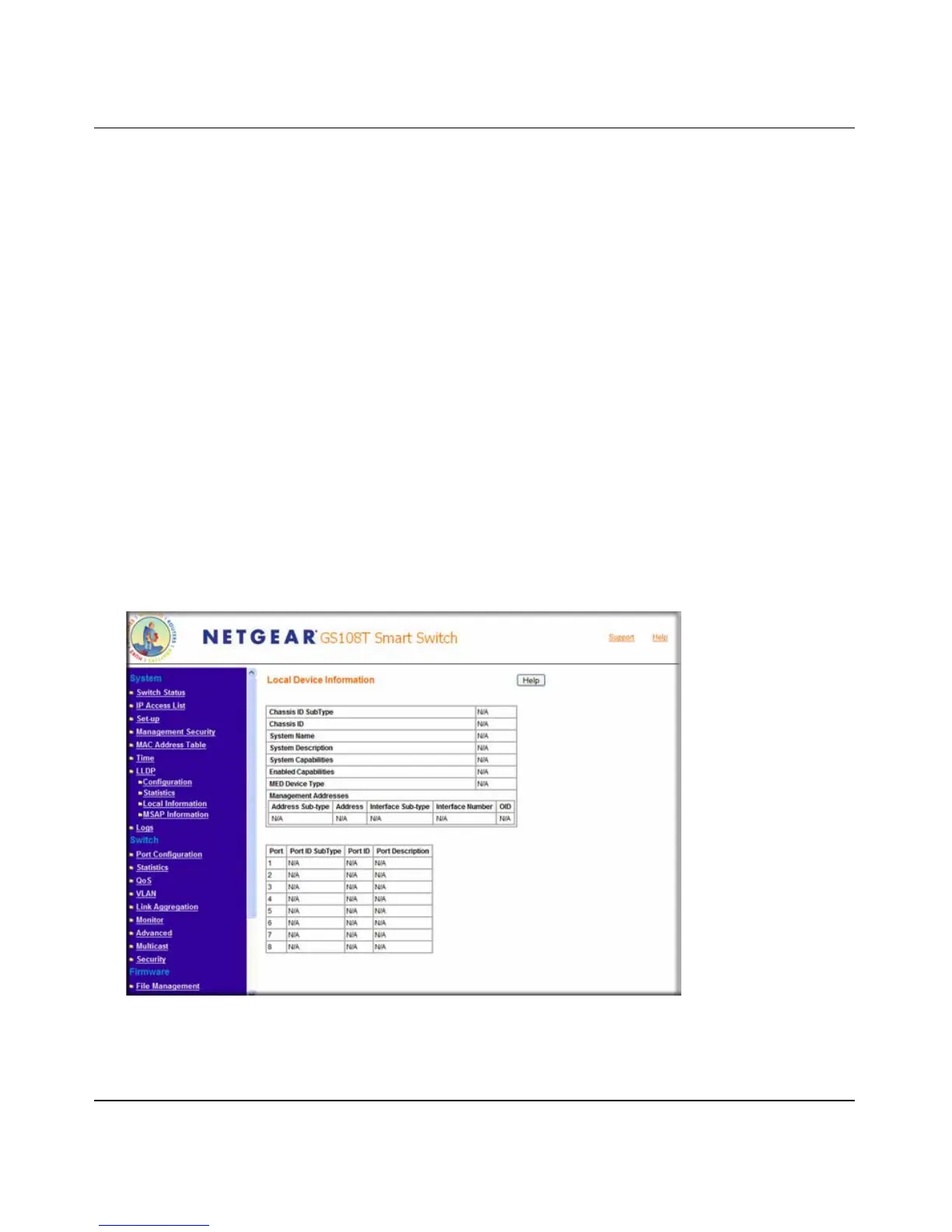

1. Click Local Information in the blue navigation panel. A screen similar to that shown below
appears.
.
The following LLDP local information is displayed:
Figure 3-17

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
