NETGEAR ProSafe GS108 User Manual

GS108T Smart Switch Software Administration Manual
3-8 Managing System Settings
v1.0, May 2007
Management Security
Click File Management in the upper part of the blue navigation panel to expand the item to
Password and RADIUS.
Password
The Password page enables you to change the authentication type and password for the switch.

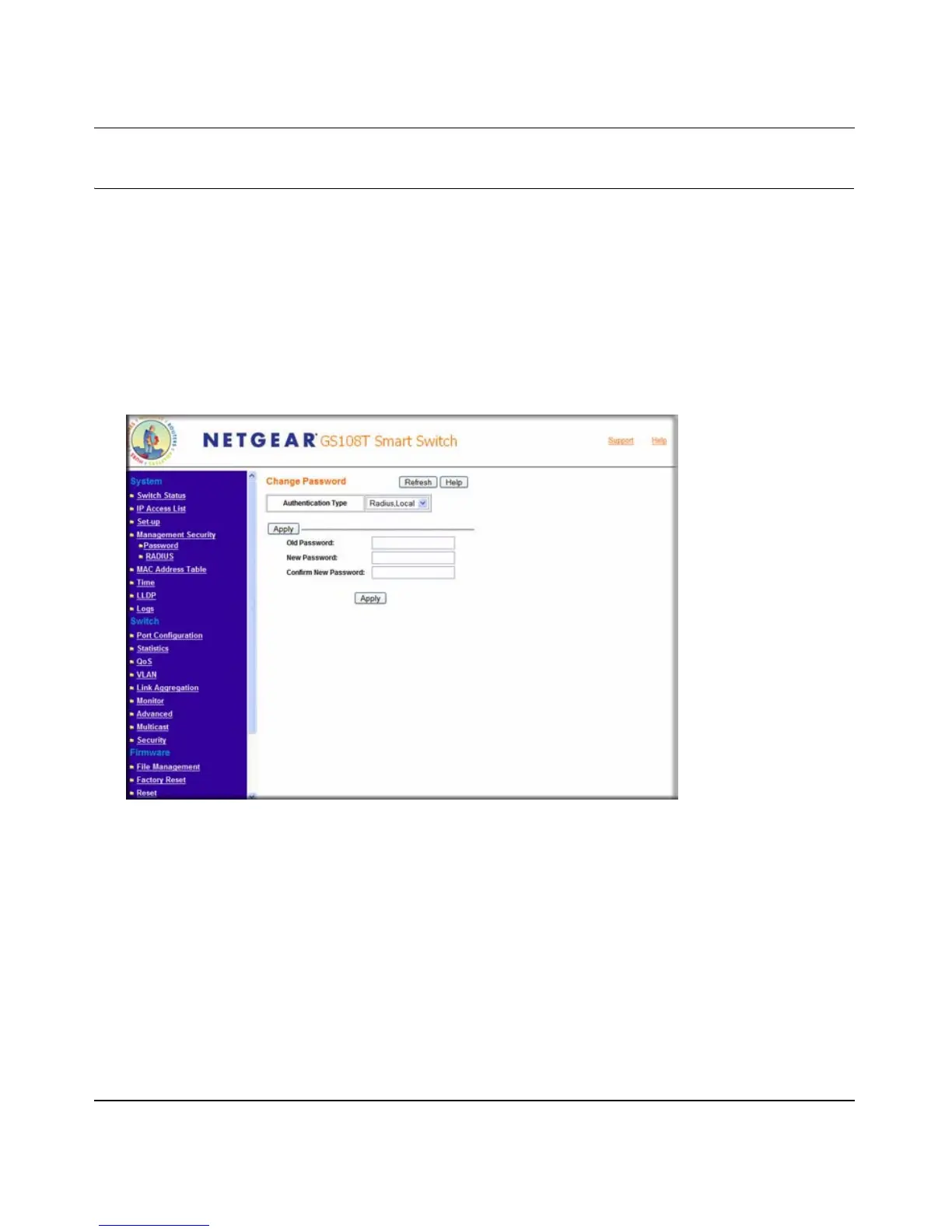

1. Click Password in the blue navigation panel. A screen similar to that shown below appears.
.
2. Specify the authentication procedure:
a. Select the authentication type from the pulldown menu. The possible field values are:
• Local: Authentication occurs locally.
• Radius: Authentication occurs at the RADIUS server.
• None: No authentication type is applied. A user is allowed to login without any
authentication.
The authentication procedure shows the order by which authentication is performed. If the
first authentication type is not available, the second authentication type is used.
Figure 3-8

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
