GS108T Smart Switch Software Administration Manual
4-4 Configuring the Switch
v1.0, May 2007
• Port Description: Indicates the description for the port.
4. Click Next Port to set the configuration settings of the next port.
5. Click Apply to update the port configuration settings.
Statistics
This page shows information from each port's internal counters.

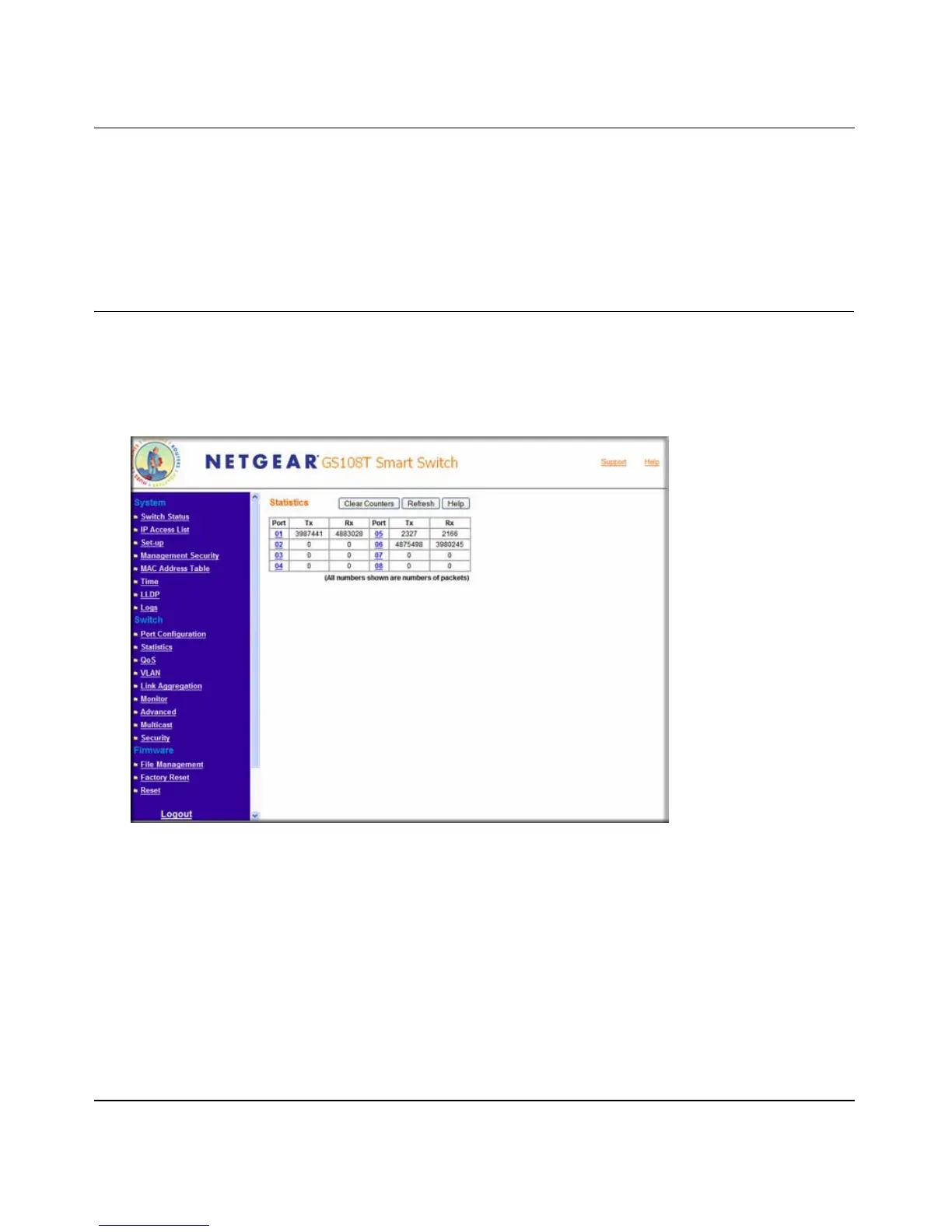

1. Click Statistics in the blue navigation panel. A screen similar to that shown below appears.
.
The following statistics are displayed for all of the ports:
• Tx indicates total packets transmitted from a port.
• Rx indicates total packets received from a port.
Clear Counters resets all counters to zero.
Refresh retrieves current count from the device and updates the page.
2. To view an individual port in detail, click that port number. A screen similar to that shown
below appears.
Figure 4-26

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
