NETGEAR ProSafe GS108 User Manual

GS108T Smart Switch Software Administration Manual
Configuring the Switch 4-29
v1.0, May 2007
Multicast
Click Multicast in the middle part of the blue navigation panel to expand the item to IGMP
Snooping, Unknown Multicast, and Static Multicast Group.
IGMP Snooping
IGMP specifies how a host can register to a router in order to receive specific multicast traffic.
Configure the switch to use IGMP snooping in subnets that receive IGMP queries from either
IGMP or the IGMP snooping querier. IGMP snooping constrains multicast traffic at Layer 2 by
configuring Layer 2 LAN ports dynamically to forward multicast traffic only to those ports that
want to receive it. IGMP is a standard defined in RFC1112 for IGMPv1 and in RFC2236 for
IGMPv2.

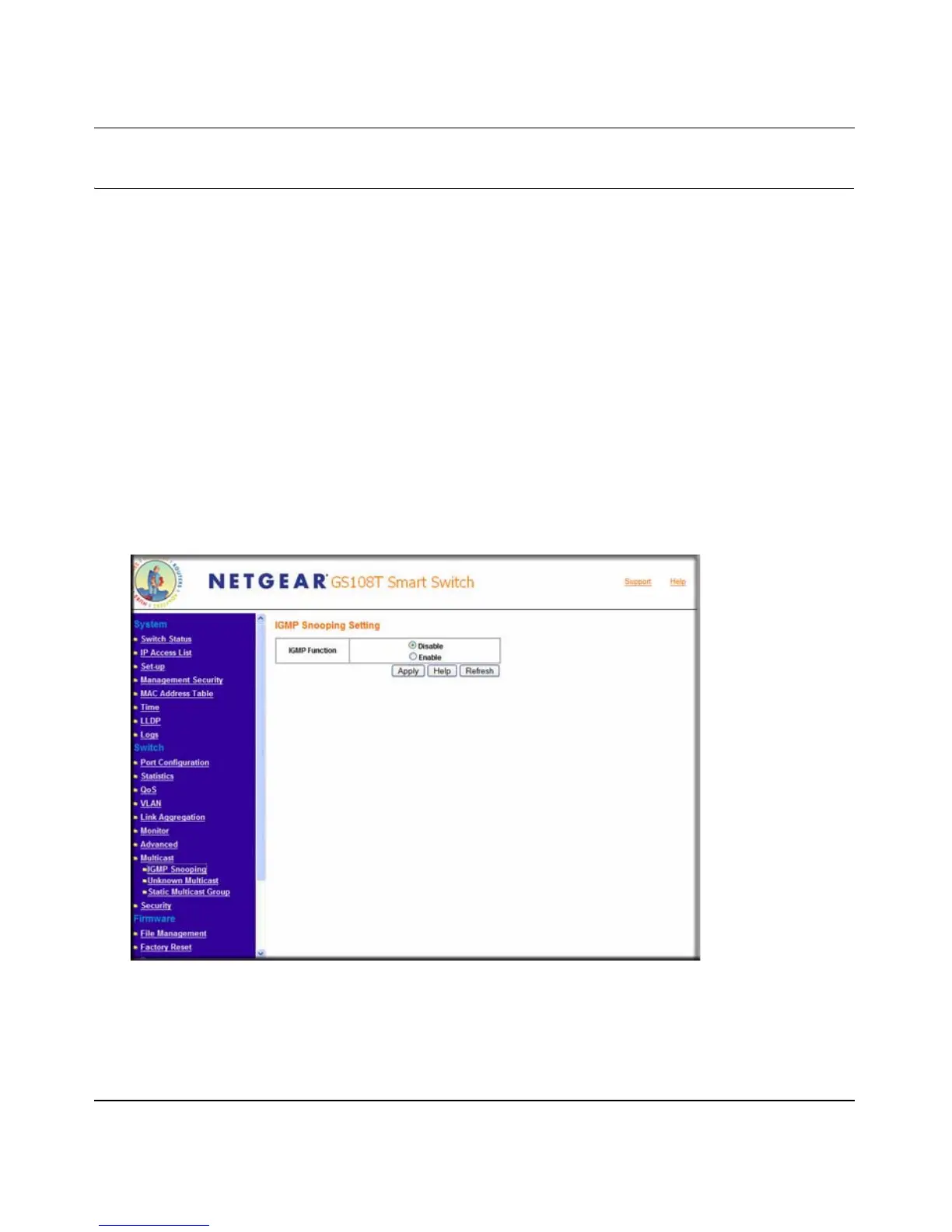

1. Click IGMP Snooping in the blue navigation panel. A screen similar to that shown below
appears.
.
2. View or configure the IGMP settings as desired:
Figure 4-48

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
