NETGEAR ProSafe GS108 User Manual

GS108T Smart Switch Software Administration Manual
4-40 Configuring the Switch
v1.0, May 2007
.

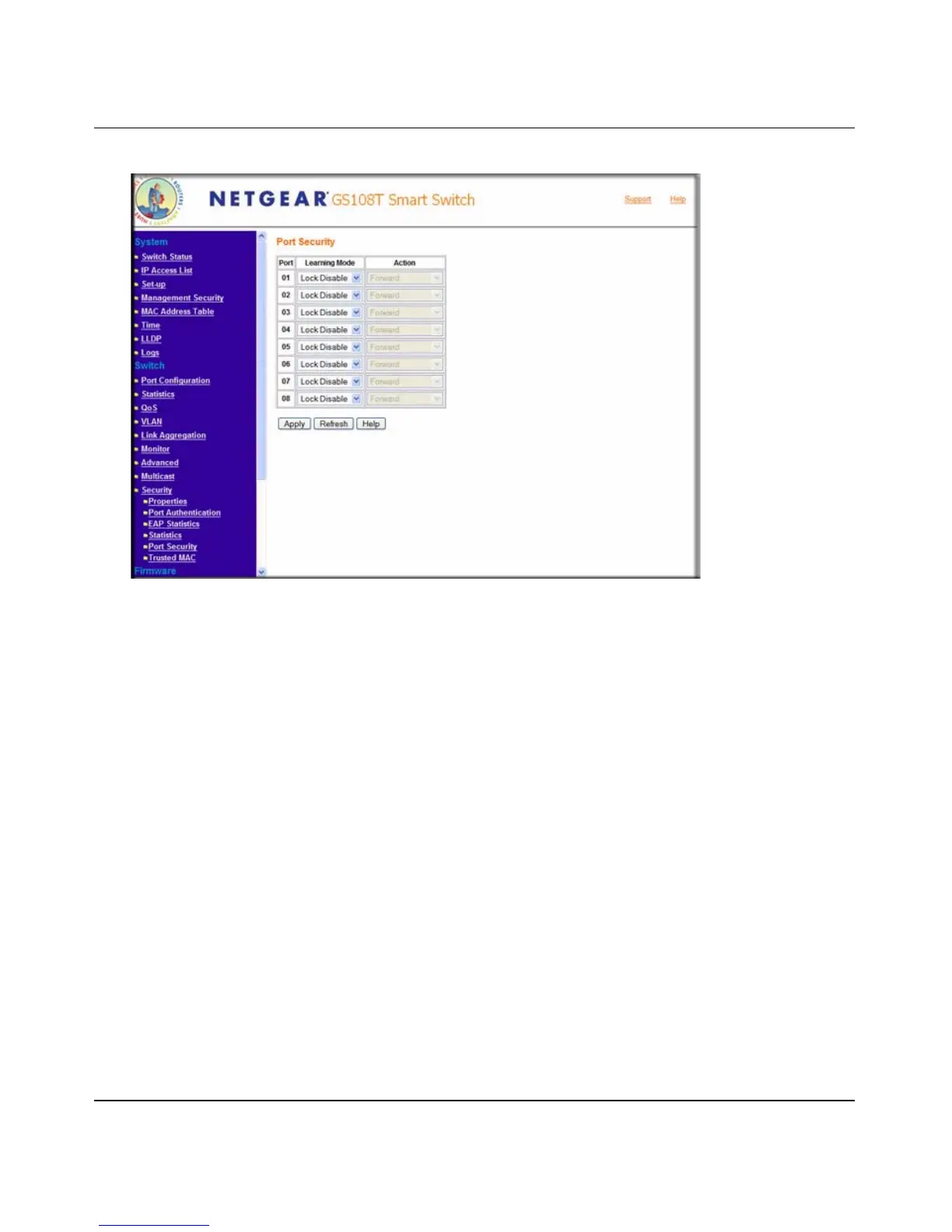

2. The Port Security page contains the following fields:
• Port: Indicates the port number.
• Learning Mode: Allows to enable/disable learning on the port.
• Action: Specifies the action to Forward or Discard unknown source mac address packets.
Limited Learning dynamically learns 16 MAC addresses and stop learning hereafter.
• Trap: Specifies whether to send trap notification to logging servers when security
violation occurs.
3. Click Apply.
Trusted MAC
The Trusted MAC protects the device from untrusted intruder invade the system. Only the SA of
the packet in the trusted MAC table can be switched to the destination port. The trusted MAC is
configured by the user; it is per port based; and total 100 trusted MACs can be added.
Click Trusted MAC in the blue navigation panel. A screen similar to that shown below appears.
Figure 4-56

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
