GS108T Smart Switch Software Administration Manual
Configuring the Switch 4-25
v1.0, May 2007
.

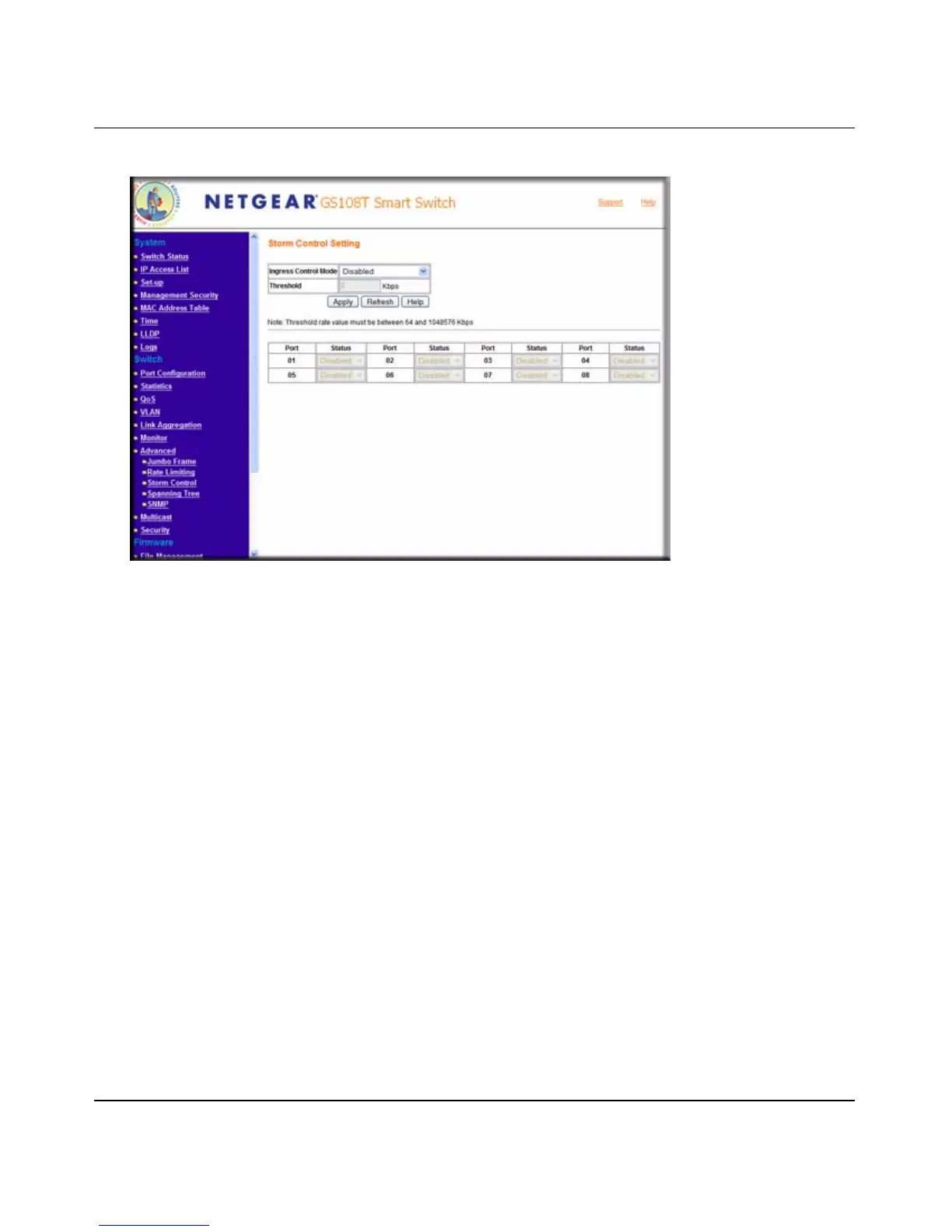

2. Specify the storm control settings:
• Ingress Control Mode: Selects the type of the packet storm. The available options
include:
– Disabled
–DLF
– Broadcast
– Multicast & Broadcast
• Storm Control Rate: Used to enter the threshold limit for storm control.
• Per Port Setting: Enable or disable the control type for every particular port.
3. Click Apply.
Spanning Tree
The Rapid Spanning Tree Protocol (RSTP) provides rapid convergence of the spanning tree by
assigning port roles and by determining the active topology. The RSTP builds upon the IEEE
802.1D STP protocol to select the switch with the highest switch priority as the root switch.
Reconfiguration of the spanning tree can occur in less than 1 second.
Figure 4-45

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
