GS108T Smart Switch Software Administration Manual
4-26 Configuring the Switch
v1.0, May 2007

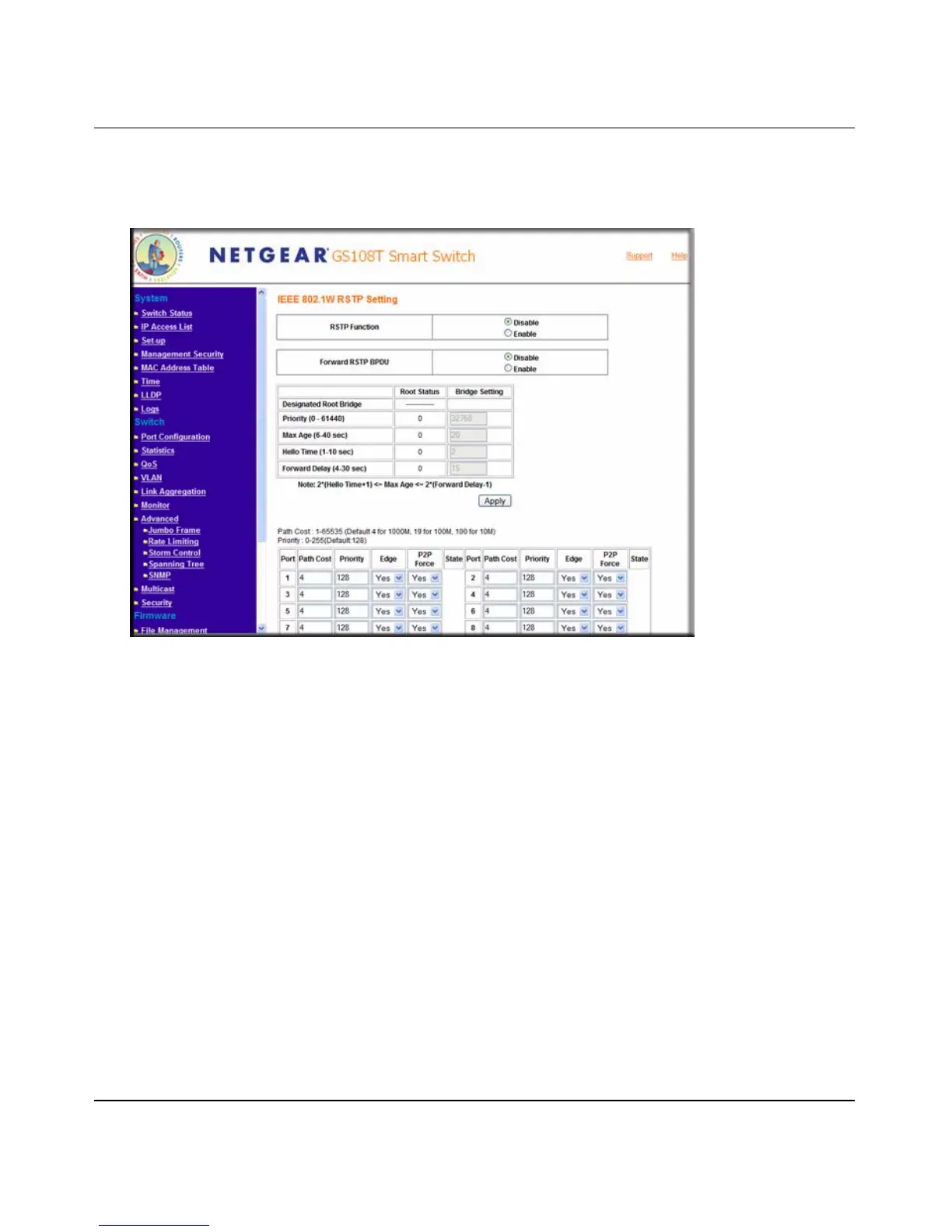

1. Click Spanning Tree in the blue navigation panel. A screen similar to that shown below
appears.
.
2. View and change the spanning tree settings as desired:
• BPDU: When Spanning tree is disabled, BPDU flooding is a configurable option. If
BPDU flooding is enabled, the BPDU will be forwarded to all the linkup ports
• RSTP Switch Setting: The RSTP switch settings allow you to control the RSTP
parameter from the bridge point of view.
• Designated Root Bridge: The bridge identifier of the root of the spanning tree is
determined by the RSTP protocol as executed by this node. The bridge identifier value is
used as the Root Identifier parameter in all configuration bridge PDUS originated by this
node.
• Priority: configures the priority of the current bridge.
• Max Age: configures the maximum age of the current bridge. This is the maximum age of
spanning tree protocol information learned from the network on any port before it is
discarded, in units of hundredths of a second. This is the actual value that this bridge is
currently using.
Figure 4-46

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
