NETGEAR ProSafe GS108 User Manual

GS108T Smart Switch Software Administration Manual
4-32 Configuring the Switch
v1.0, May 2007
Properties
The Network Authentication Properties page allows network managers to configure port
authentication parameters. Guest VLANs are also enabled from the Network Authentication
Properties page.

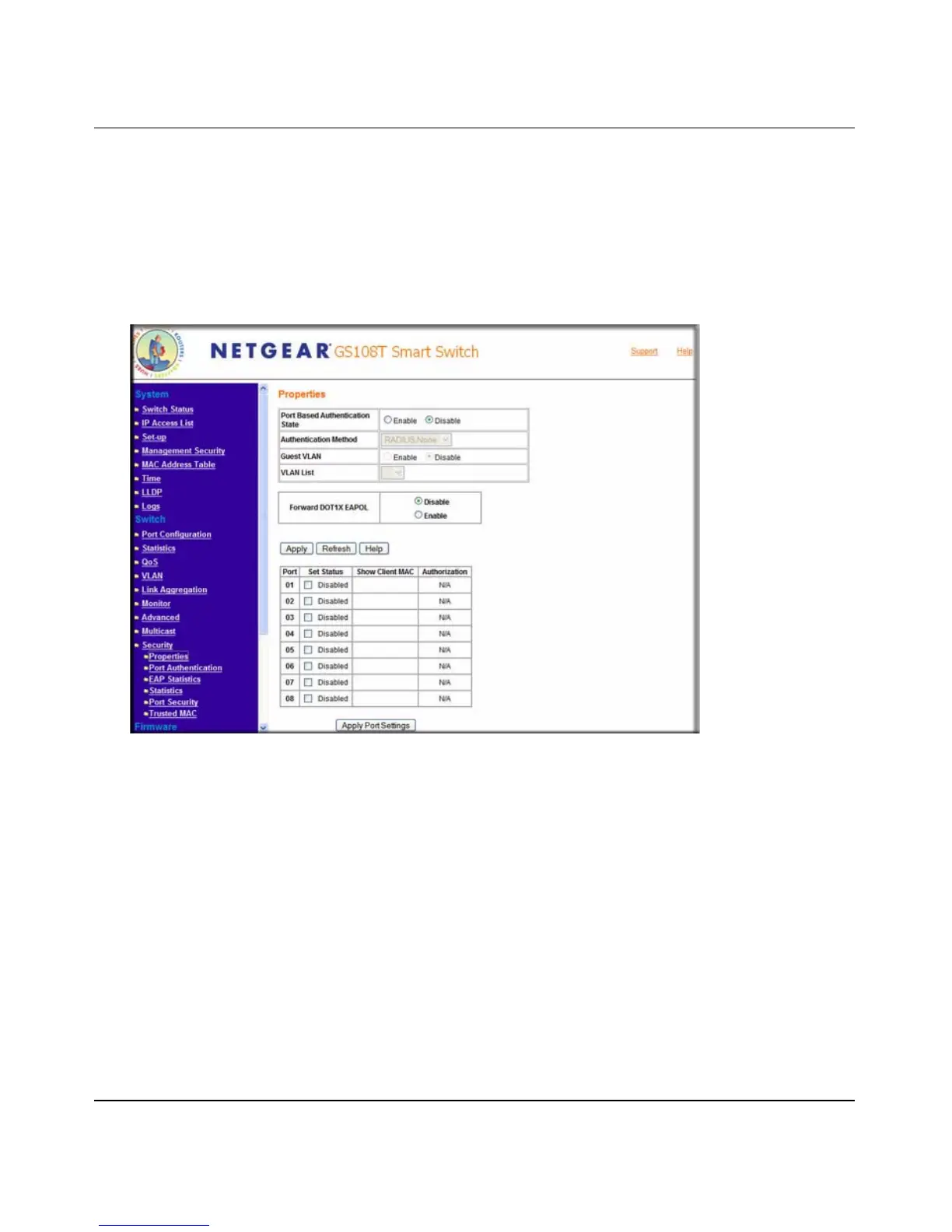

1. Click Properties in the blue navigation panel. A screen similar to that shown below appears.
.
2. The Port Authentication Properties Page contains the following fields:
• Port-based Authentication State: Indicates if Port Authentication is enabled on the
device. The possible field values are:
– Enable: Enables port-based authentication on the device.
– Disable: Disables port-based authentication on the device.
• Authentication Method: Specifies the authentication method used for port
authentication. The possible field values are:
– None: Indicates that no authentication method is used to authenticate the port.
– RADIUS: Provides port authentication using the RADIUS server.
Figure 4-51

NETGEAR ProSafe GS108 Specifications

General

MAC address table	8000 entries
Maximum data transfer rate	1 Gbit/s
Full duplex	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Latency	20 μs
Dimensions (WxDxH)	235.5 x 100.8 x 27 mm
Power requirements	5 V @ 2.8 A DC
Networking features	Ethernet, Fast Ethernet, Gigabit Ethernet
Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Noise level	0 dB
Mean time between failures (MTBF)	91.500 h
Power consumption (typical)	14 W
Safety	UL (UL 1950), CUL, C-Tick
LED indicators	Link, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	760 g
