Nikon Z 9 - Page 35

35

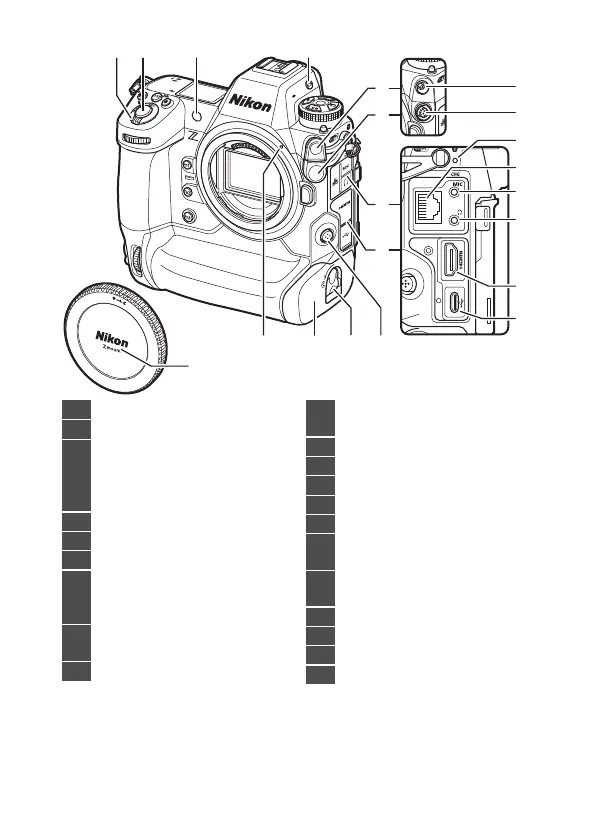

Parts of the Camera
21
12 3 4
10 912 11
7
5
6
8
15
16
17
13
14
18
19
20
1
Power switch (
0
85, 88)
2
Shutter-release button (
0
88)
3
AF-assist illuminator (
0
90, 609)
Red-eye reduction lamp
(
0
429)
Self-timer lamp (
0
152)
4
M
button (
0
50, 713)
5
Flash sync terminal cover
6
Ten-pin remote terminal cover
7
Cover for microphone,
headphone, and Ethernet
connectors
8
Cover for USB and HDMI
connectors
9
Focus-mode button (
0
110)
10
Battery chamber cover latch
(
0
77)
11
Battery chamber cover (
0
77)
12
Lens mounting mark (
0
83)
13
Flash sync terminal (
0
425)
14
Ten-pin remote terminal
15
Charge lamp (
0
75)
16
Ethernet connector (
0
346,
382)
17
Connector for external
microphone (
0
845)
18
Headphone connector (
0
590)
19
HDMI connector (
0
300)
20
USB connector (
0
323, 744)
21
Body cap (
0
83)
