Service ManualY100250-4 6-13
6.7.2 CONNECTOR PIN-OUTS AND FUSE
J2
(MAIN BOARD POWER SUPPLY)
1 VAC
2 GND
3 VAC
J1
(EXTERNAL POWER SUPPLY)
1 ROUT
2 -12V
3 +12V
4 +5V
5 GND
6 GND
7 GND
8 35V
9 35V
6.7 ALIPR2E CARD
Two codes can be assigned to the ALIR2 card depending on the line voltage supported (115 V or
230 V). Also the value of fuse F1 varies according to the line voltage.
6.7.1 CARD VIEW AND LOCATION OF CONNECTORS

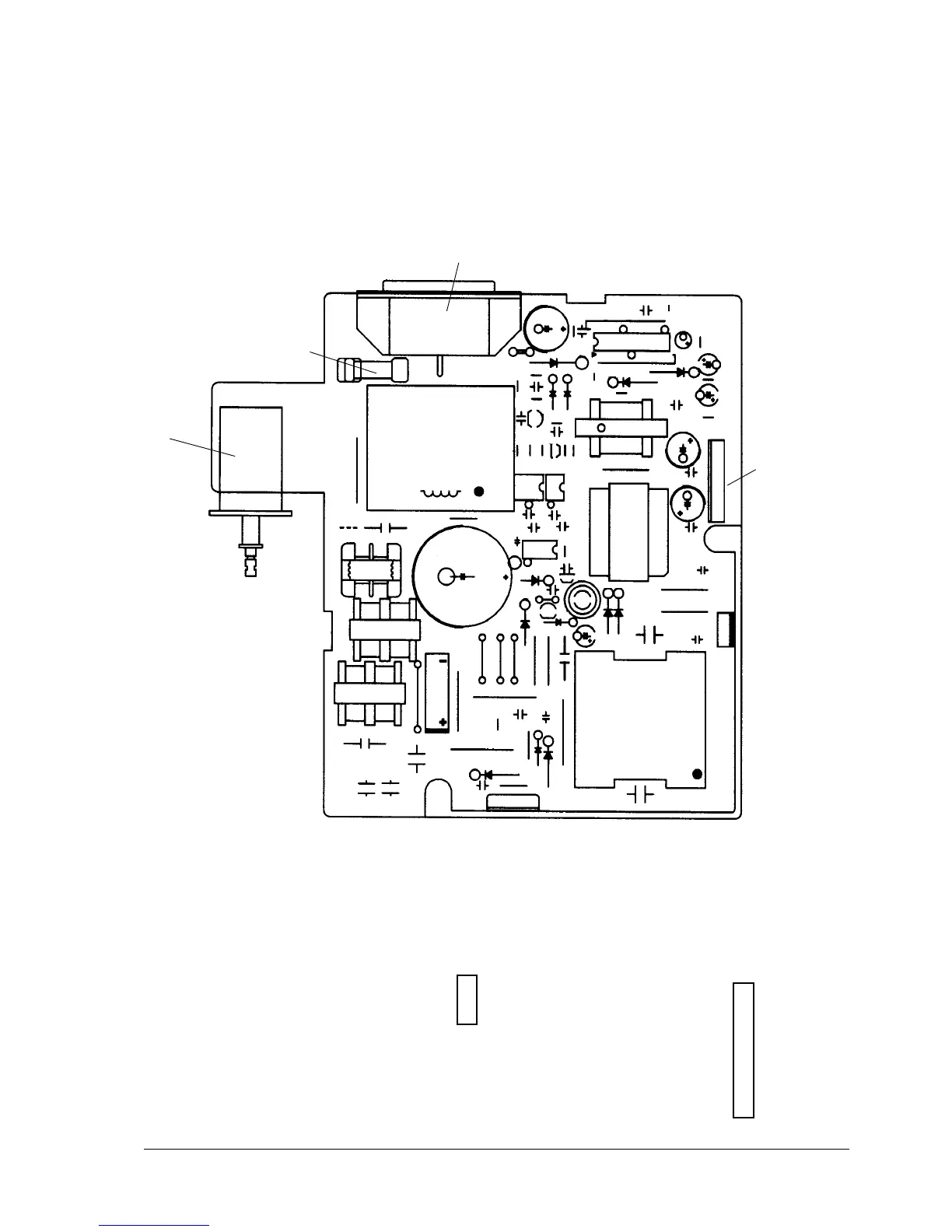

Fig. 6-8 ALIPR2 Card
S1
J1
F1
J2
F1 Fuse: 250V 3.15A
J2
J1
S1
F1
■
