Service ManualY100250-4 8-3
8.2 PRINT BAR ADJUSTMENT
MACHINE CONDITION:
Testina di stampa posizionata coassiale con l'asse della vite su cui si compie la regolazione.
OBJECTIVE ADJUSTMENT:
A distance of 0.4/0.5 mm must be measured between the frame's lower shield (1) and the head of
screw (2).
PROCEDURE:
While holding the printhead carriage on the axis, adjust screw (2) until measuring the required distance.
Repeat this procedure on the other screw located on the opposite side of the frame.

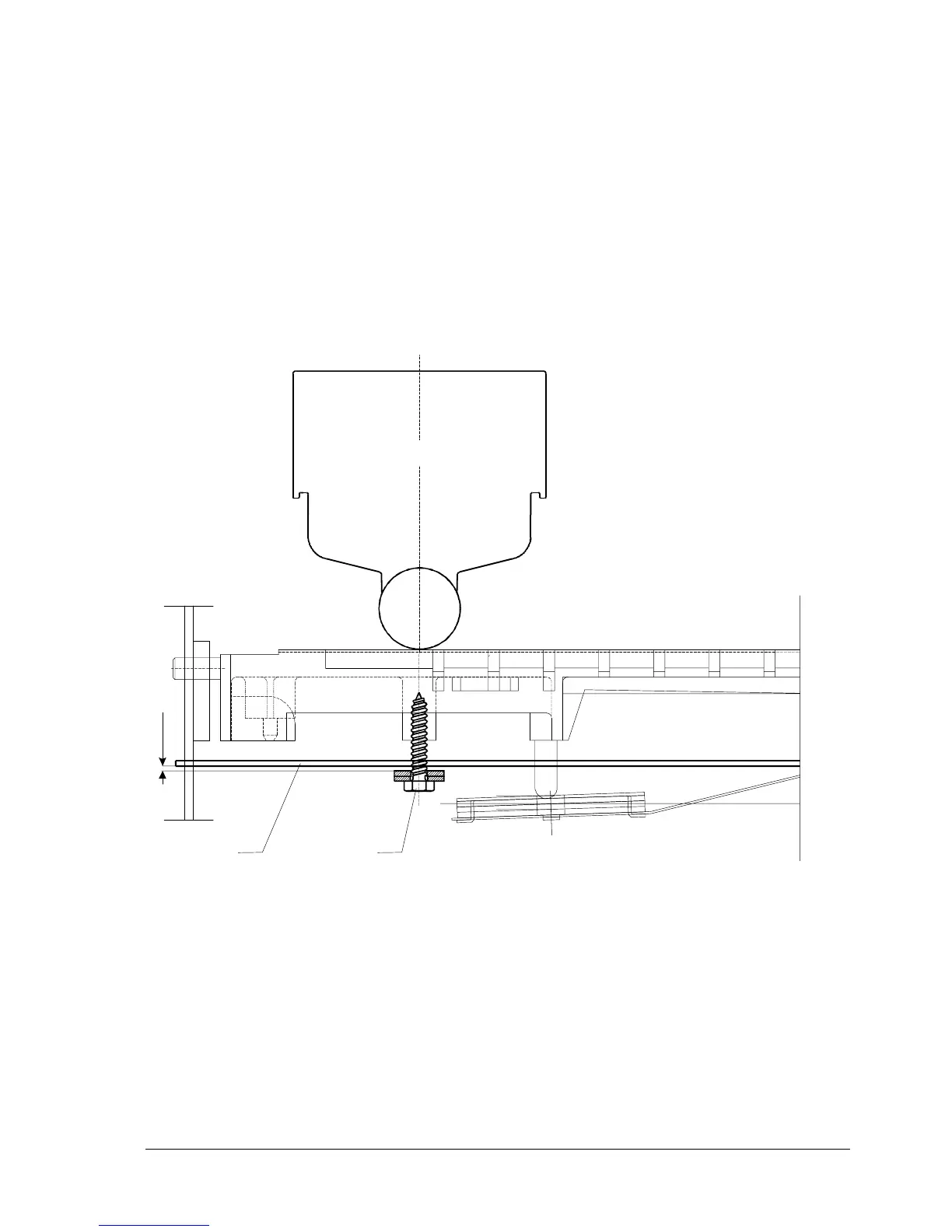

Fig. 8-2
21
0,4/0,5
PRINTHEAD
