Olivetti PR2 E - MAGNETIC DEVICE;MICR HEAD ASSY DISASSEMBLY

9-24
Y100250-4
9.3.3 HORIZONTAL MAGNETIC DEVICE/MICR HEAD ASSY DISASSEMBLY/
REASSEMBLY
- Remove the printer case (section 9.3.1).
- Remove the horizontal magnetic device/MICR (section 9.3.1).
- Loosen screw (1) to free the signals cable.
- Loosen screws (2) and remove the MICR head (3).
2
2
1
3

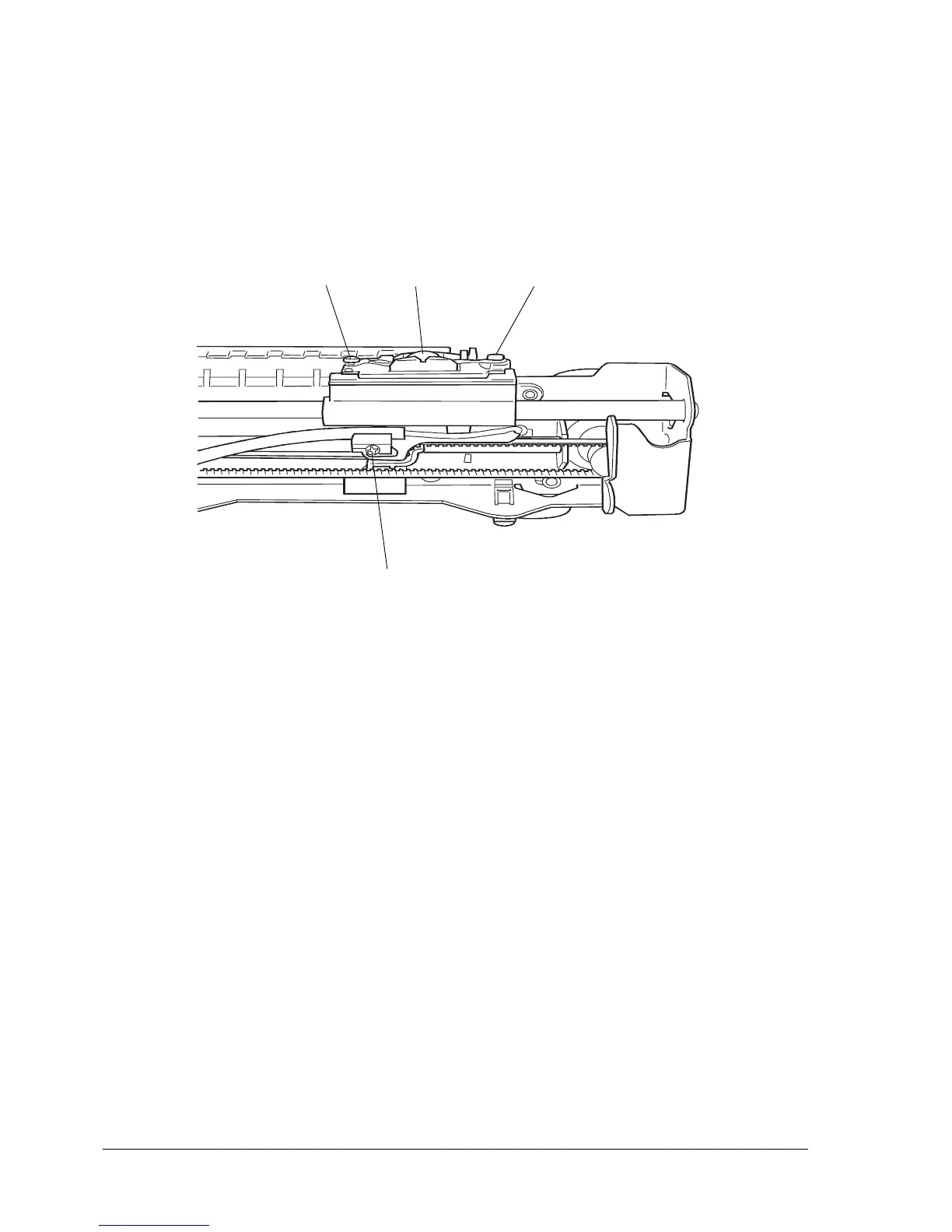

Fig. 9-25
■
