Olivetti PR2 E - PRINT BAR, MAIN BOARD, AND POWER SUPPLY DISASSEMBLY

Service ManualY100250-4 9-19
9.2.14 PRINT BAR DISASSEMBLY/REASSEMBLY
- Remove the printer case (section 9.2.1)
- Lift the front part of the mechanical assembly off the base of the printer, partly rotating it until you are
able to reach the connectors on the main board.
- Unplug all the cables with the exception of the printhead cables.

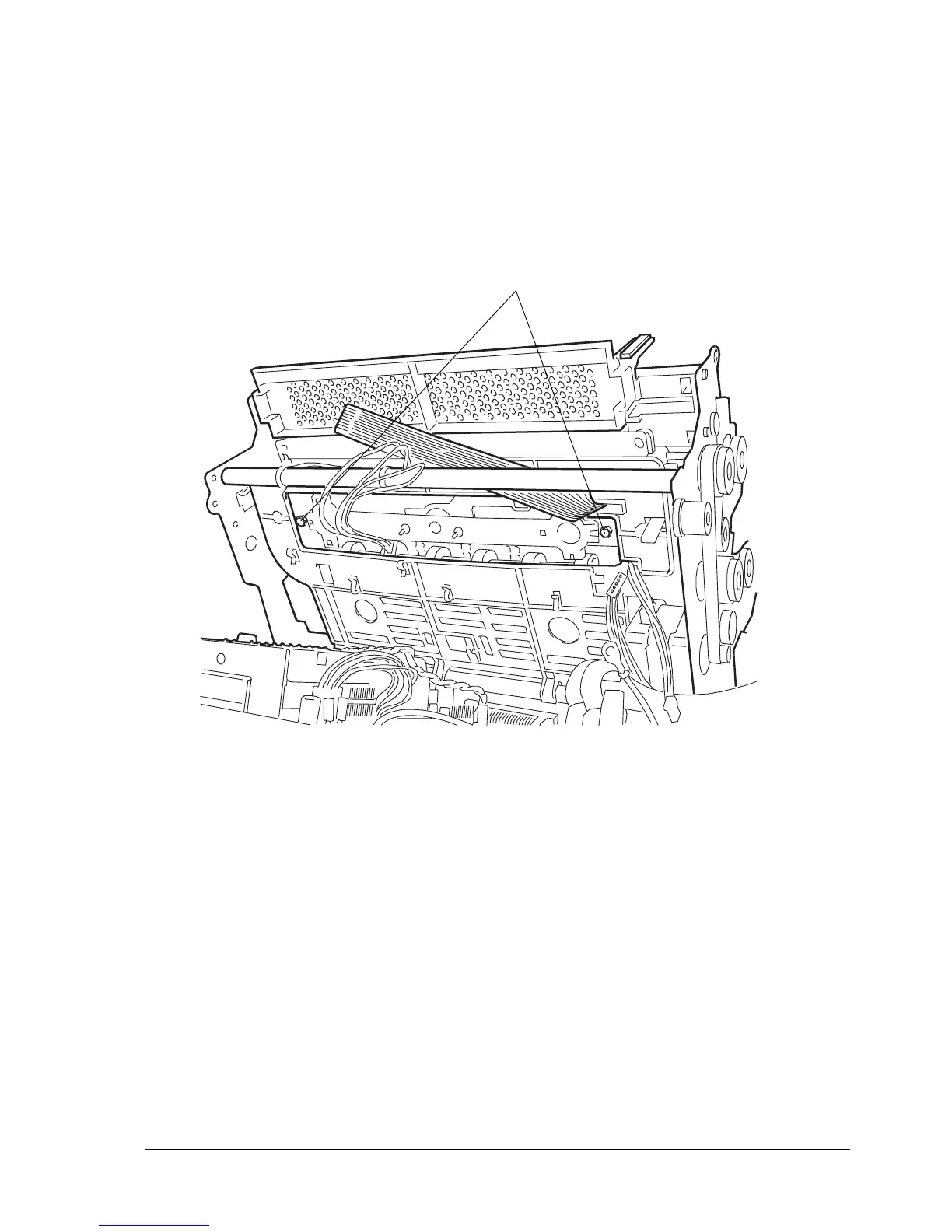

- Unscrew the two nuts (1) that secure the print bar and then slide it off from the top.
Fig. 9-20
Note: After reassembly, adjust the distance between the printhead and print bar (section 8.2).
1
