9.2.8 PAPER FEED MOTOR DISASSEMBLY/REASSEMBLY
- Remove the mechanical assembly (section 9.2.3)
- Loosen the two nuts (1) that secure the motor and then release the document feed belt.
- Remove the nuts and extract the motor.
1
Note: After reassembly, adjust the tension of the document feed belt (section 8.6).

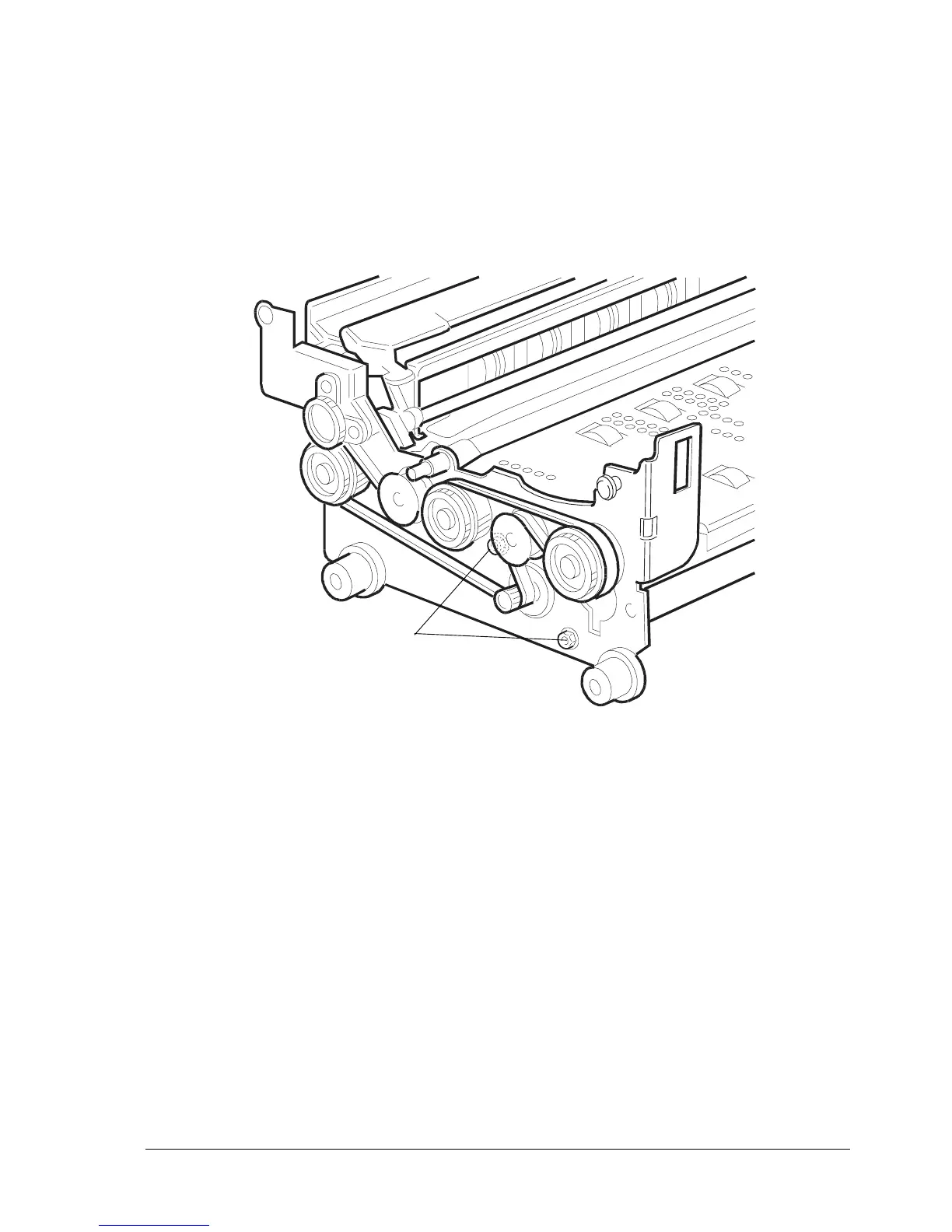

Fig. 9-9
