Olivetti PR2 E - DOCUMENT FEED BELT AND PRINT BAR ADJUSTMENTS

Y100250-48-2
8.1 DOCUMENT FEED BELT ADJUSTMENT
MACHINE CONDITION:
Unimportant.
OBJECTIVE ADJUSTMENT:
The tension of timing belt (1) must sag 2.9 + 2 mm when applying 200 gr + 2 gr at the center of the lower
span.
PROCEDURE:
Loosen the motor securing nuts (2), tighten the belt accordingly and then tighten nuts (1) again.

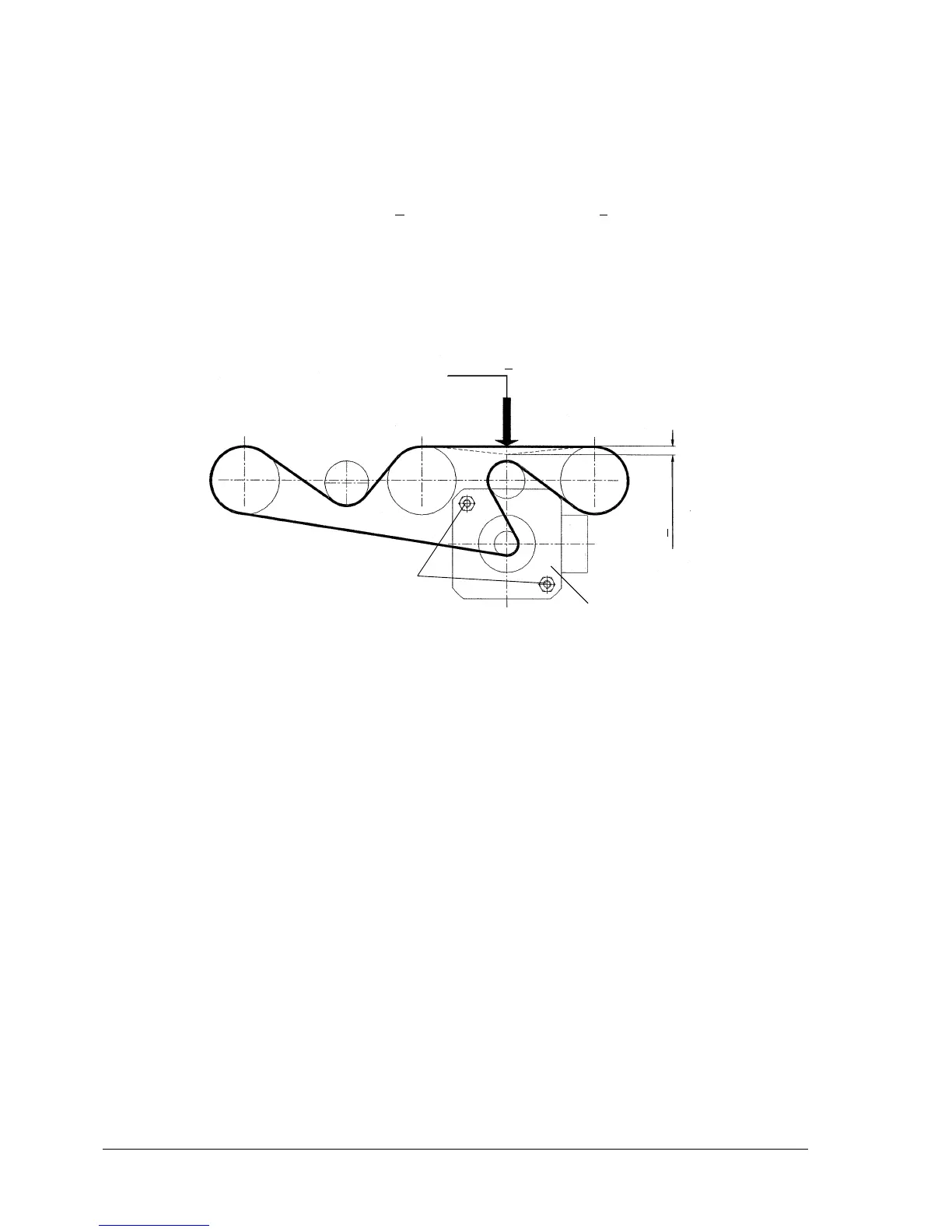

Fig. 8-1
2
1
P=200 g +10 g
2.9 + 0.2 mm
