Olivetti PR2 E - BASIC MACHINE OPTIONS DISASSEMBLY

9-22
Y100250-4
9.3 BASIC MACHINE OPTIONS DISASSEMBLY/REASSEMBLY
9.3.1 HORIZONTAL MAGNETIC DEVICE/MICR DISASSEMBLY/REASSEMBLY
- Remove the printer case (section 9.2.1).
- Lift the front part of the mechanical assembly off the base of the printer, partly rotating it until you are
able to reach the connectors on the main board (1).
- Unplug the cables connected to the magnetic options card.
- Remove the two screws (2) that secure the assembly to the machine frame and then remove this
option.

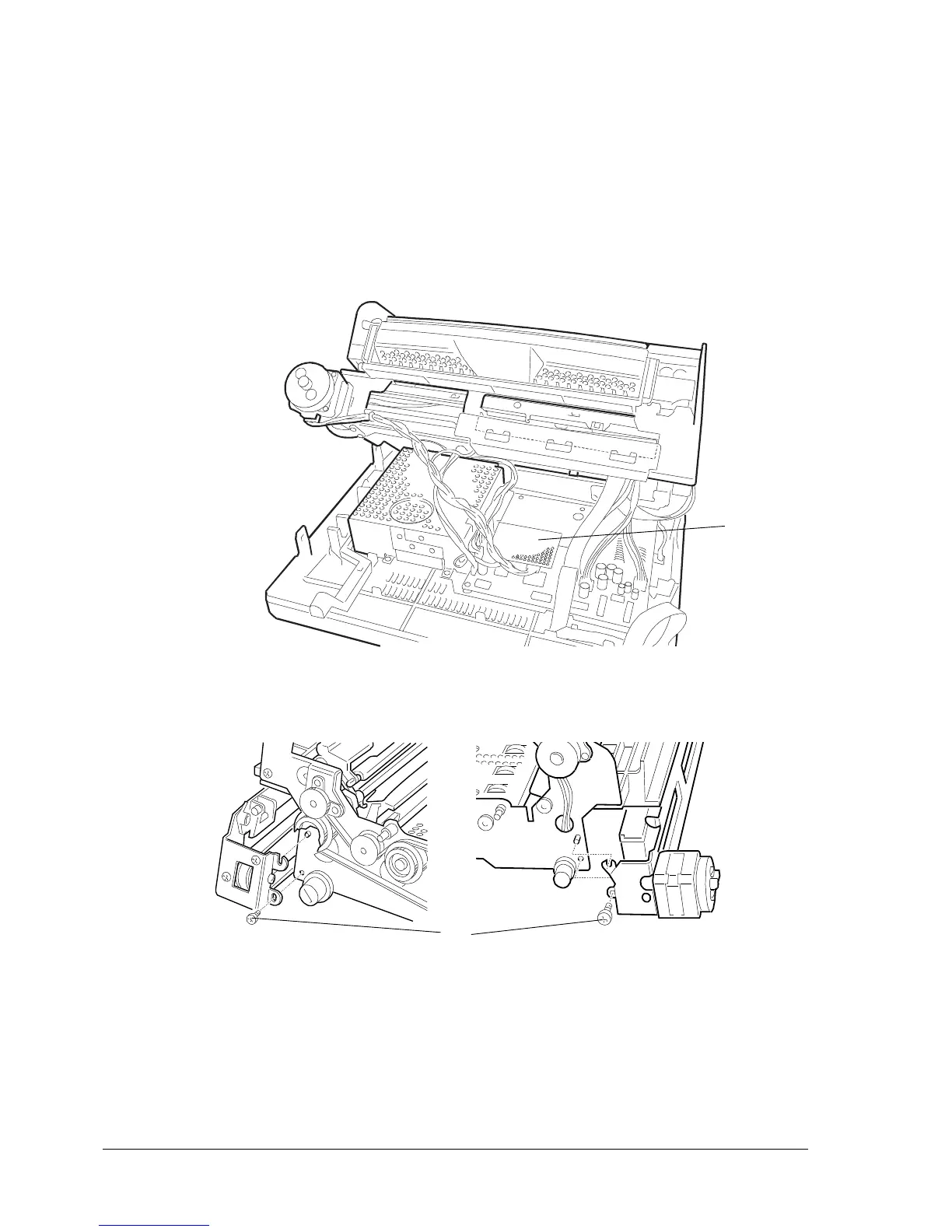

Fig. 9-23
Note: When refitting the assembly, adjust its position on the frame (section 8.12).
2
1
