9.2.2 CONSOLE DISASSEMBLY/REASSEMBLY
- Remove the printer case (section 9.2.1).
- Loosen screws (1) and turn sideways the securing plates of the mechanical assembly rubber stops
so as to release the front of the mechanical assembly from their slots.
- Lift the front part of the mechanical assembly off the base of the printer, partly rotating it until you are
able to reach console connector (2) on the main board.
- Remove the board's protection.
- Remove the console by unplugging its flat cable connector from the main board (2) and then
releasing the flat cable from its securing tabs (3) on the base.

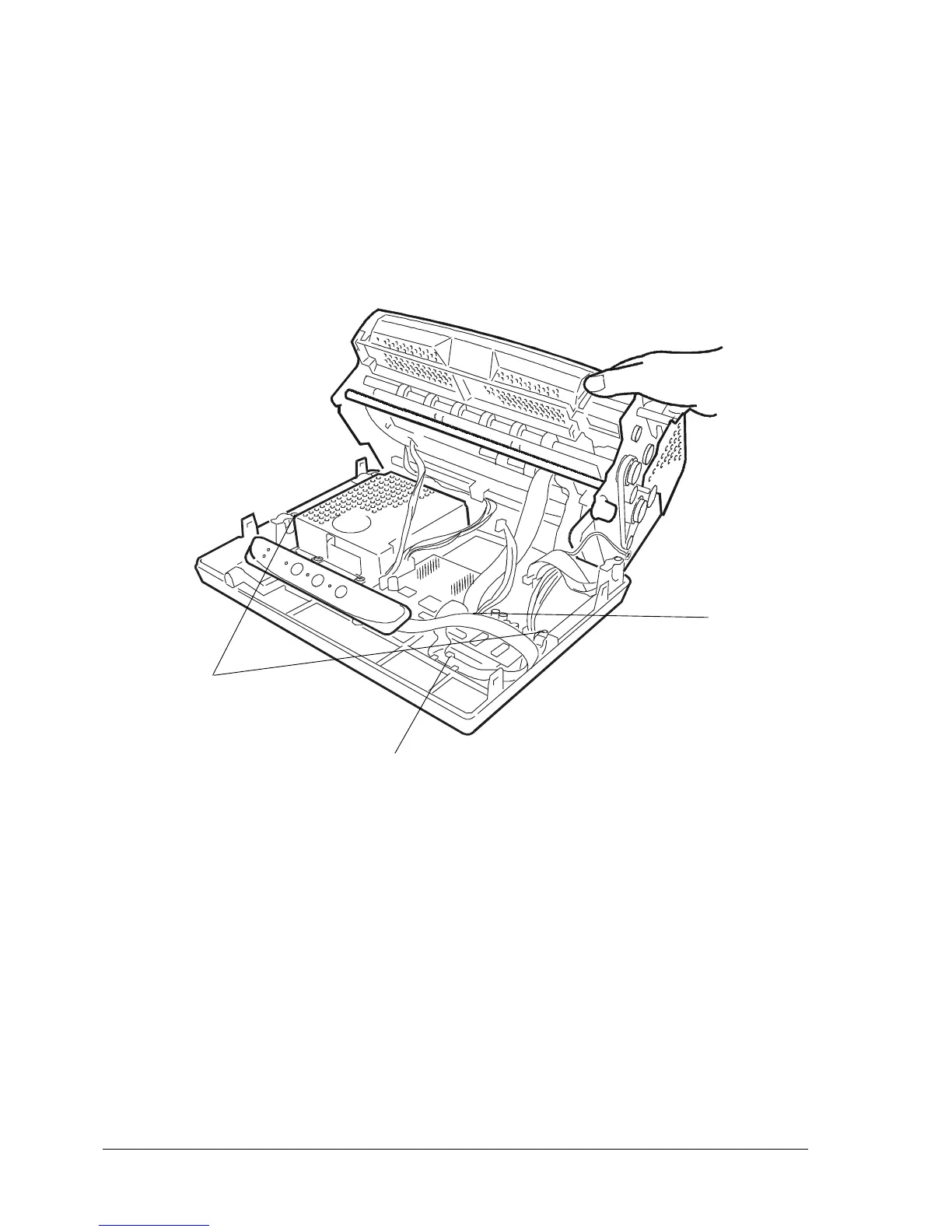

Fig. 9-2
2
1
3
