Y100250-48-10
8.9 HORIZONTAL MAGNETIC DEVICE/MICR OPTION CARRIAGE FEED BELT
TENSION ADJUSTMENT
MACHINE CONDITION:
Read/write carriage in its reset position (end-of-stroke at the motor side).
OBJECTIVE ADJUSTMENT:
The tension of timing belt (1) so that a 5 mm sag is obtained when a force of 60 gr. is applied at the center
of the carriage. Measure with the carriage in its reset position (left-hand end-of-stroke - motor end).
PROCEDURE:
Loosen the securing screws and then move motor (2) until the objective adjustment is reached; tighten
the screws again.

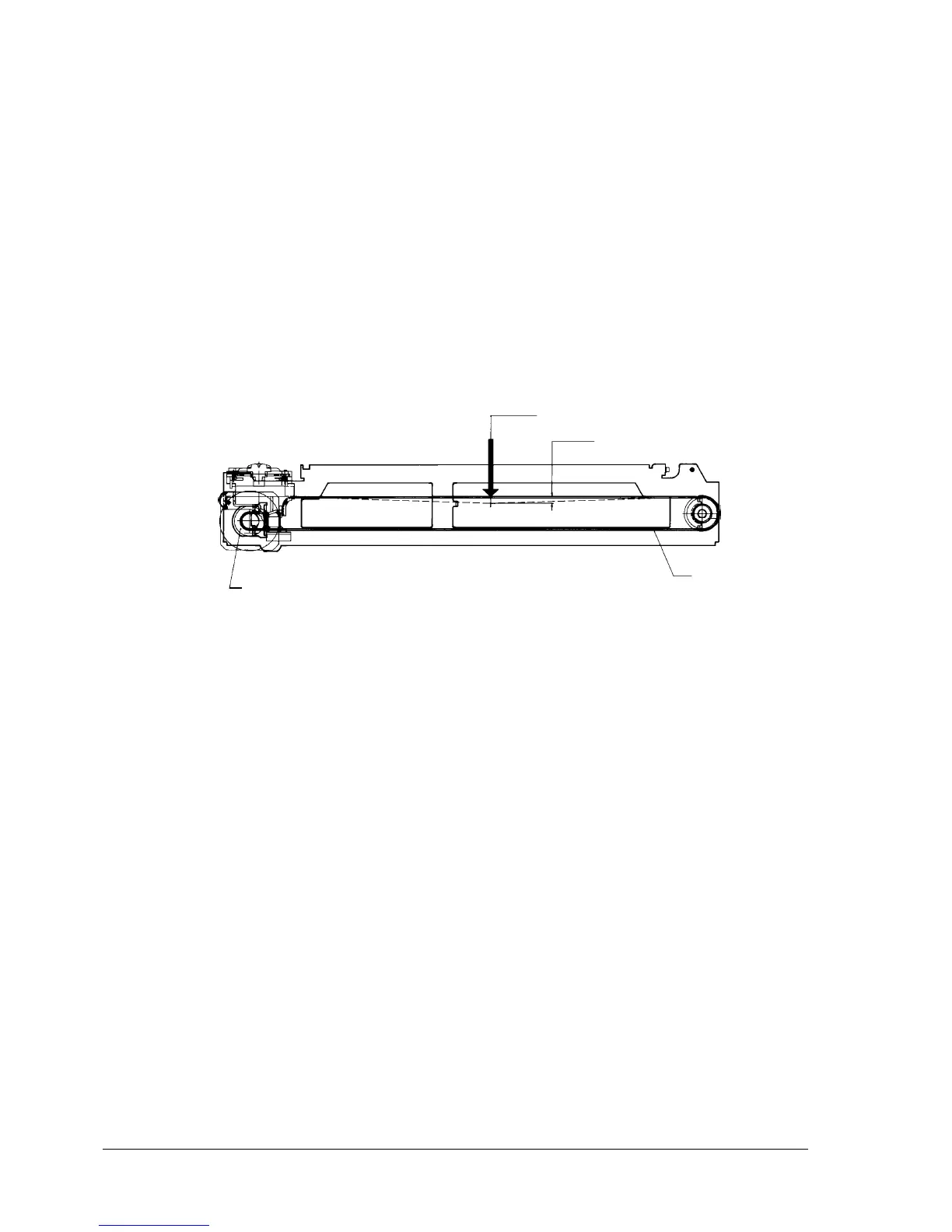

Fig. 8-9
2
1
f = 5 mm
P = 60 gr
