3.7.4 EXPULSION OF PROCESSED DOCUMENTS
The processed documents can be expelled from the printer, according to the application program, in
the following ways:
- Returning back to where the documents were manually inserted (paper feed slot)
- From the printer's rear slot, starting from the front feed slot
If the documents that are expelled from the front feed slot:
- are less than 100 mm long, they will be released from the feed rollers
- are 100 mm long or longer, they will remain gripped by the last set of rollers to avoid that the document
tails off the front shelf.
3.7.5 REPLACING THE RIBBON CARTRIDGE
The ribbon cartridge must be changed when printing is incomplete or faded, or when there are frequent
optical read errors on the printed documents. This procedure is to be performed with the machine powered
off; if necessary, however, it can even be performed with the machine powered off.
3.7.5.1 REPLACING THE RIBBON CARTRIDGE WITH THE MACHINE POWERED OFF
Proceed as follows to change the ribbon cartridge:
- Power off the machine.
- Open the printer top cover.
- Lift the upper mechanical assembly by pushing the appropriate lever.

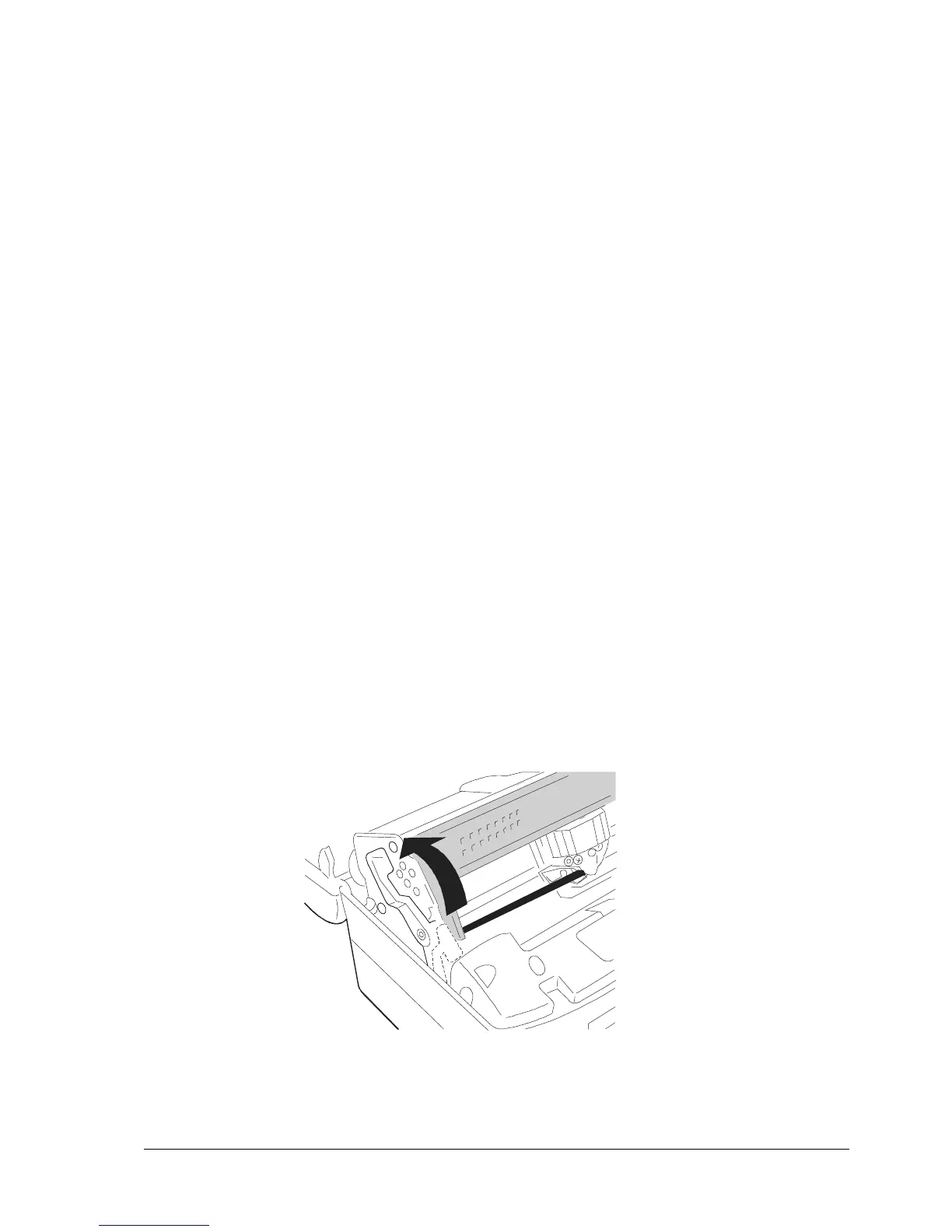

Fig. 3-16 Lifting the Upper Mechanical Assembly
