9-16
Y100250-4
9.2.13 FEEDER PHOTOSENSORS DISASSEMBLY/REASSEMBLY
- Remove the mechanical assembly (9.2.3).
- Remove the upper part of the mechanical assembly (9.2.7).

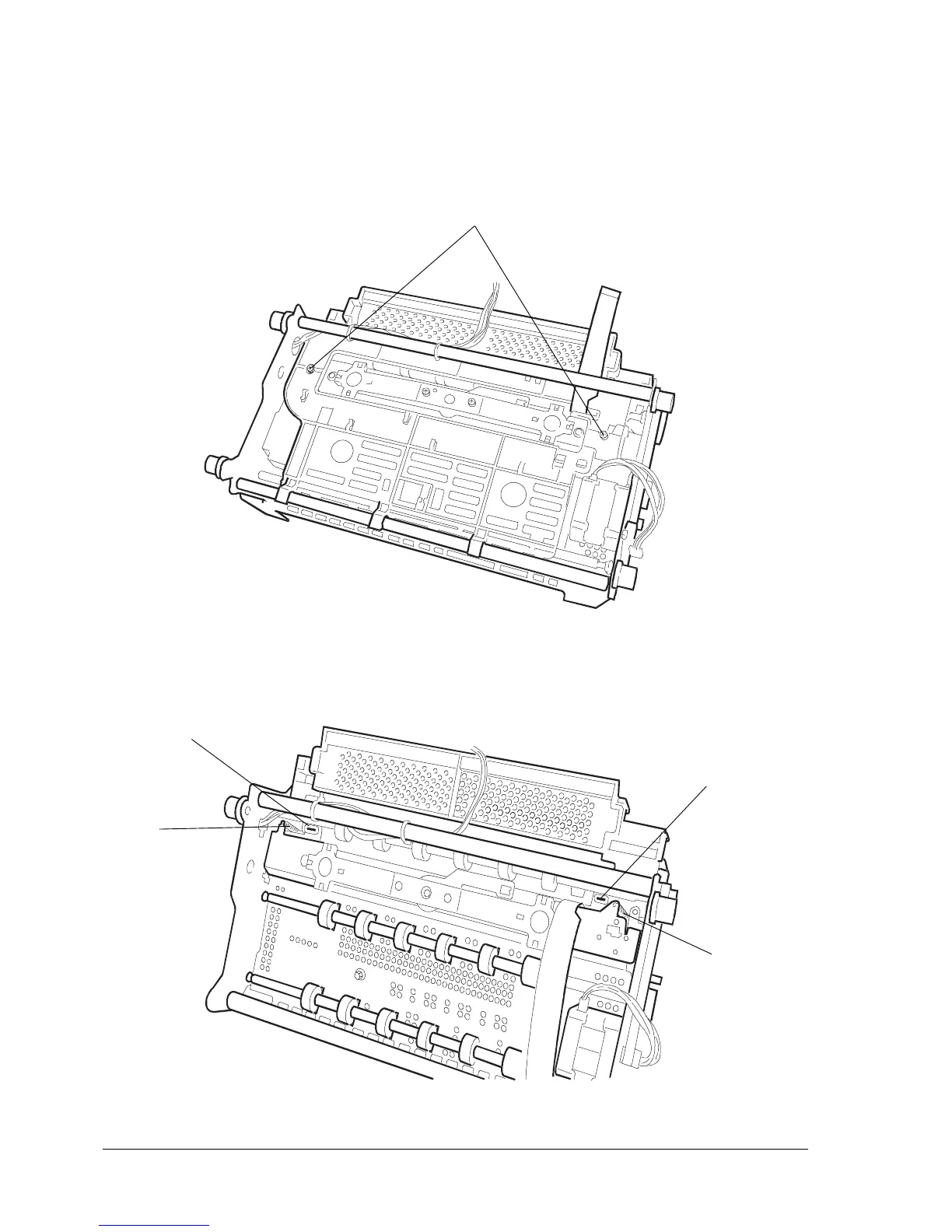

- Remove the roller shield after remov ing its M3 securing screws (1).
Fig. 9-15
- Unhook the two springs (2), straighten the document stop bar slide-proof fins (3) and then slide the
stop bar from its guideways.
Fig. 9-16
1
3
3
2
2
