9.2.10 CARRIAGE RESET PHOTOSENSOR DISASSEMBLY/REASSEMBLY
- Remove the printer case (section 9.2.1) and console (section 9.2.2).
- Lift the front part of the mechanical assembly off the base of the printer, partly rotating it until you are
able to reach the connectors on the main board.
- Unplug the carriage reset photosensor cable from the main board and then release it from its plastic
retaining clips.
- Cut the cable clips (1) and remove the photosensor by unscrewing screw (2).

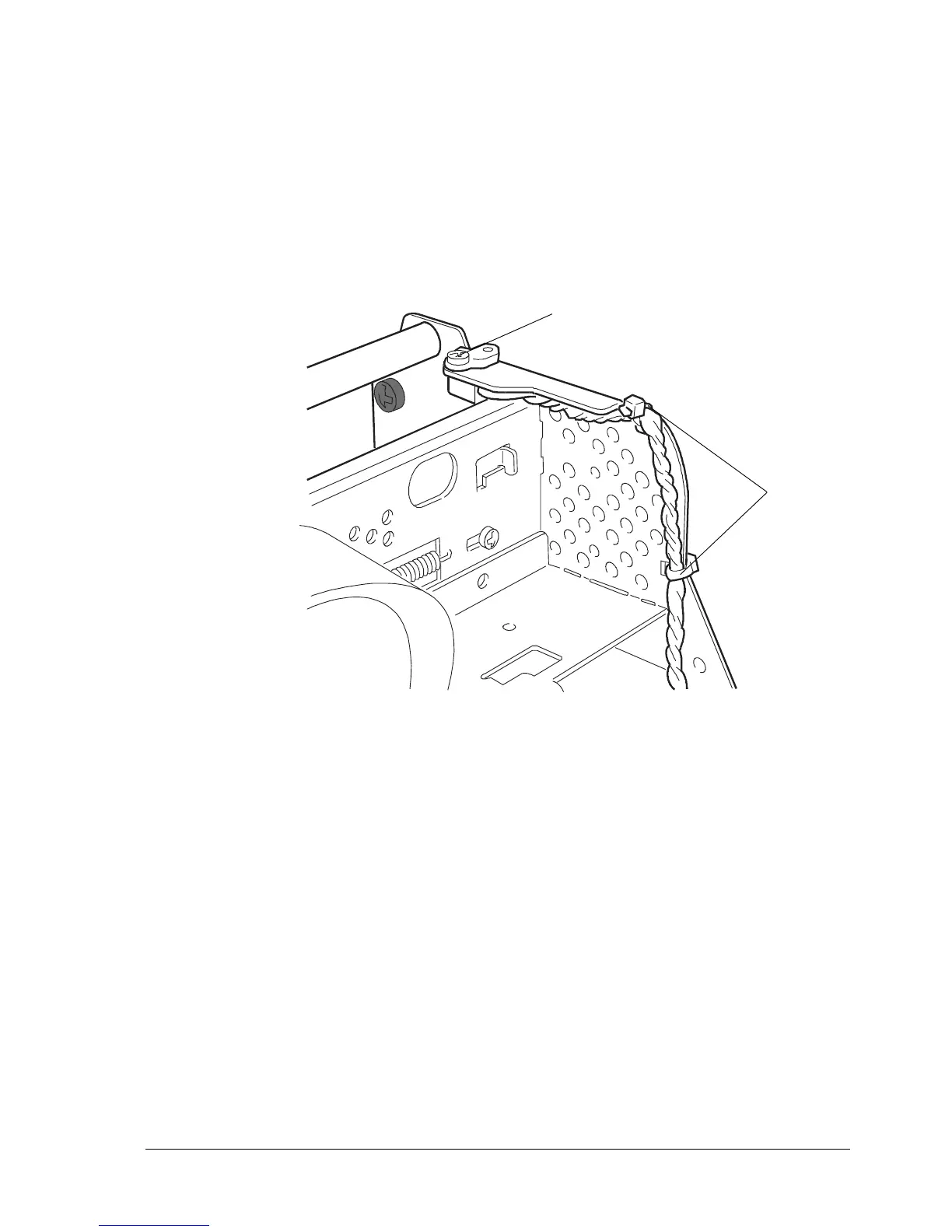

Fig. 9-11
2
1
Note: During reassembly, replace the cable clips.
