Olivetti PR2 E - BAPR2 MAIN BOARD AND CONNECTOR LOCATIONS

Y100250-46-2
6.2 BAPR2 MAIN BOARD
The BAPR2 main board has an onboard serial interface. The printer can be configured with one of the
following two interface cards:
- RS232 serial + UBS
- Centronics parallel.
6.2.1 MAIN BOARD VIEW AND LOCATION OF CONNECTORS

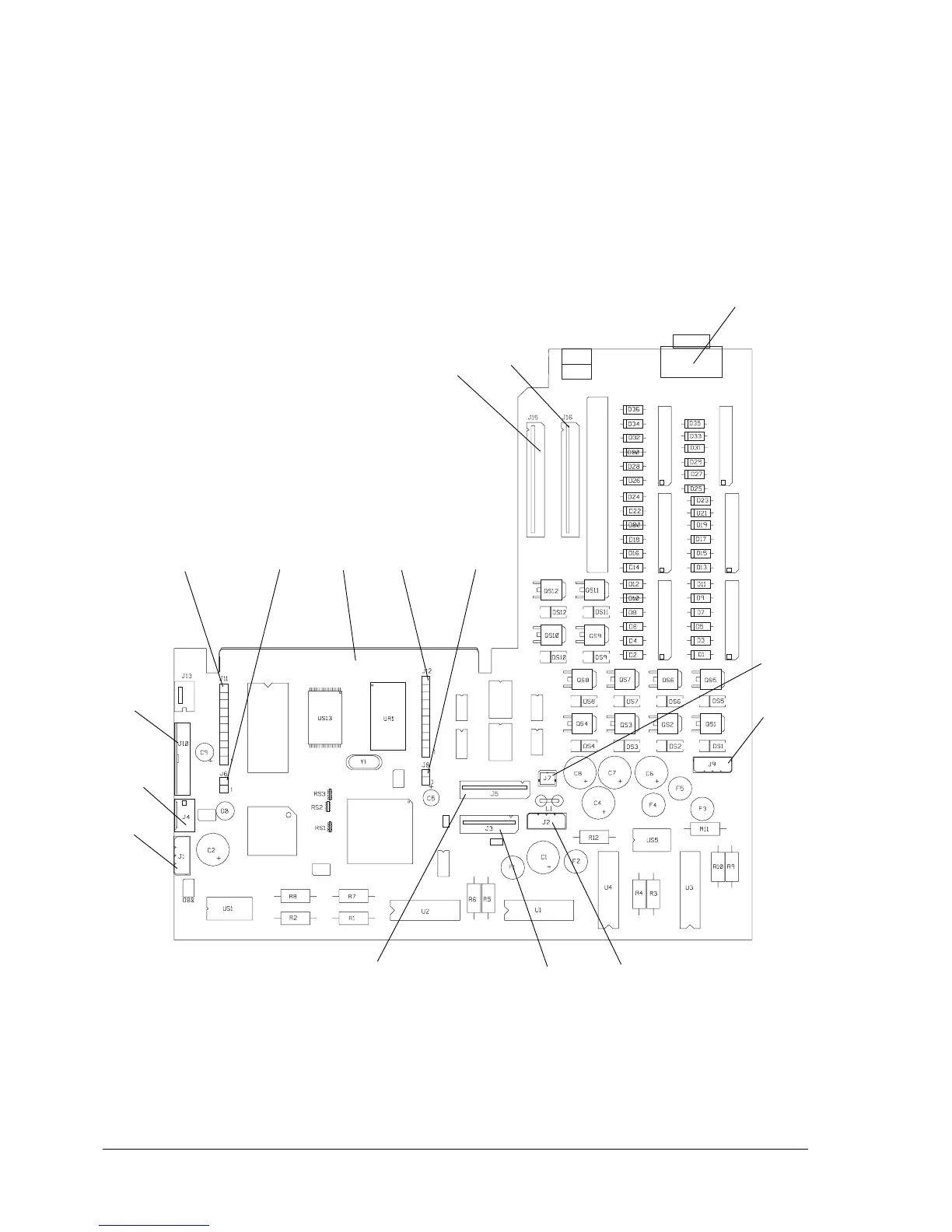

Fig. 6-1 Main Board on the PR2 E
J18
J16
J15
J14
J10
J4
J1
J5 J3 J2
J9
J7
J11 J12
J6
J8
