Y100250-48-12
8.11 HORIZONTAL MAGNETIC DEVICE/MICR PRESS POSITIONING
MACHINE CONDITION:
Cam crank (4) against the shortest cam radius.
Position press (1) inside conveyor (2) with an indent of 0.5-1 mm and then phase cam (3) so as to move
cam crank (4) against its shortest radius. Secure the cam crank on the shaft with its screw (5). Make
sure that the press is indented throughout the entire paper path).
OBJECTIVE ADJUSTMENT:
Press in ints working position.
PROCEDURE:
Rotate the cam until the cam crank (4) moves against its maximum radius; then, with the press resting
on the paper feed surface, check for a clearance in the joint at point "A".

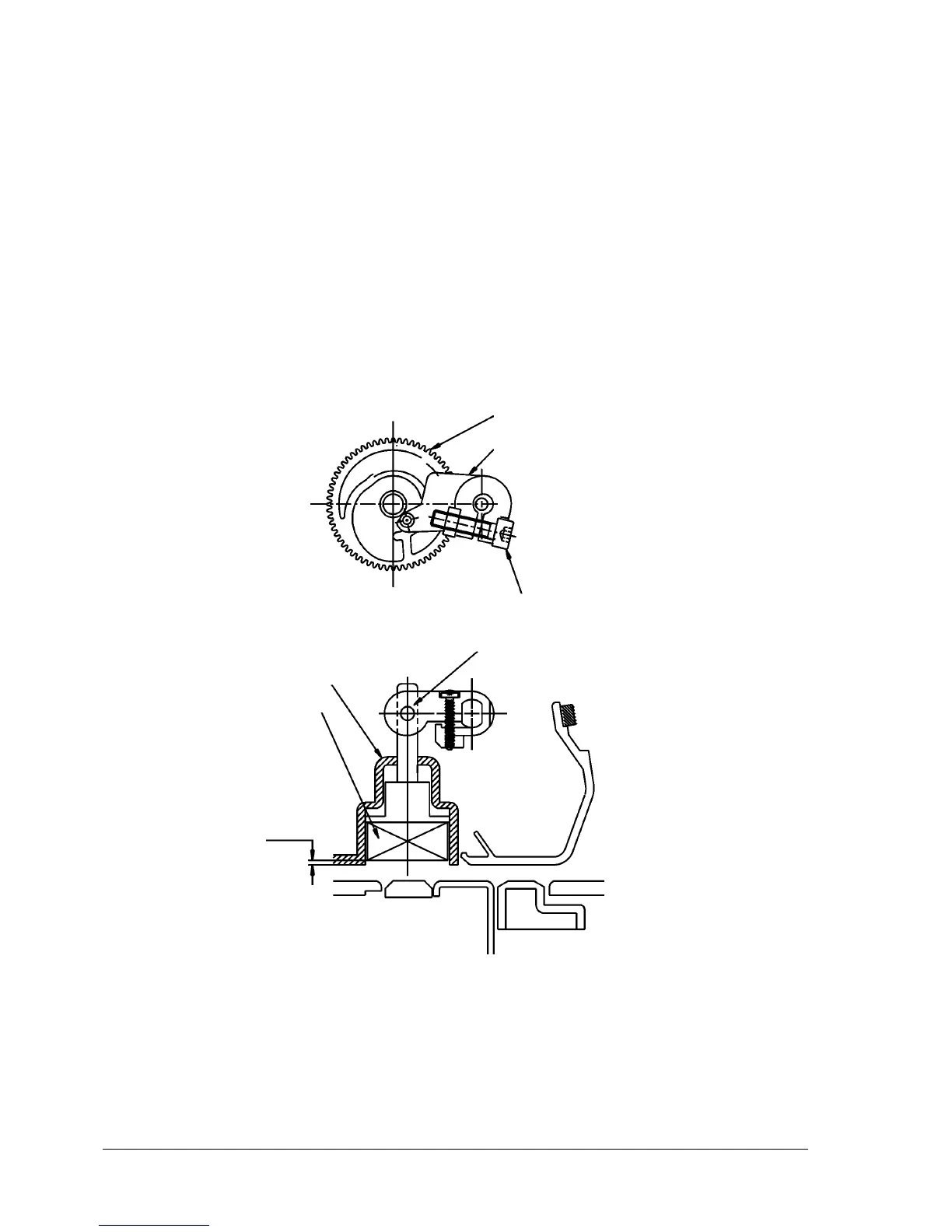

Fig. 8-11
1
2
3
4
5
A
0.5-1
