Service ManualY100250-4 8-11
8.10 HORIZONTAL MAGNETIC DEVICE/MICR DOOR ADJUSTMENT
MACHINE CONDITION:
Read/write carriage at its reset position (end-of-stroke at motor side) and semi-tie rod joining screw (1)
loose.
OBJECTIVE ADJUSTMENT:
Coplanarity between the door and the front surface of the frame.
PROCEDURE:
Fit the door (2) against the slot (3), working in the area between the leaf spring and the semi-tie rod tooth
(4); tighten the screw.

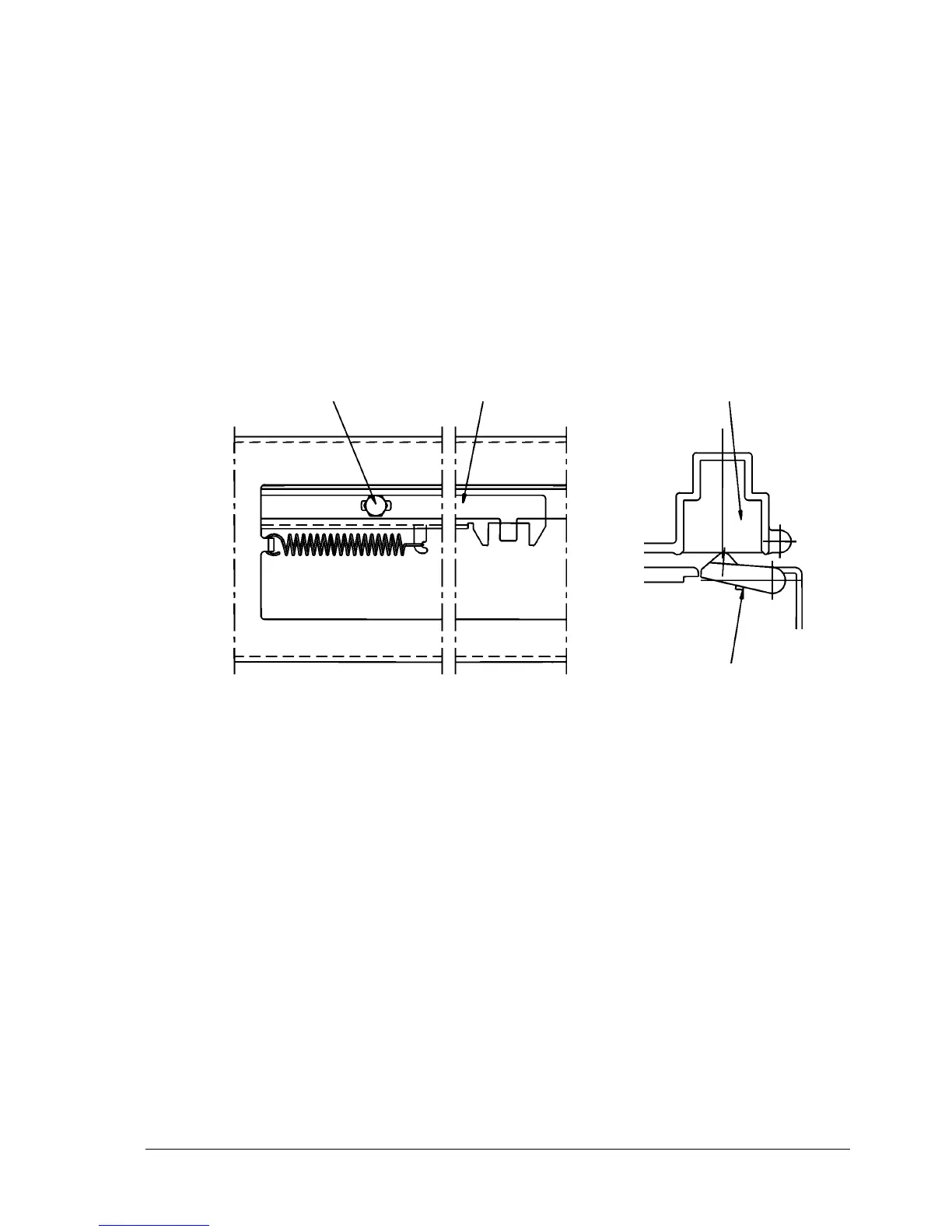

Fig. 8-10
31
2
4
ADJUSTMENT
AREA
