Service ManualY100250-4 9-15
9.2.12 SERVICES MOTOR DISASSEMBLY/REASSEMBLY
- Remove the printer case (section 9.2.1)
- Lift the front part of the mechanical assembly off the base of the printer, partly rotating it until you are
able to reach the connectors on the main board
- Unplug the services motor connection cable from the main board.

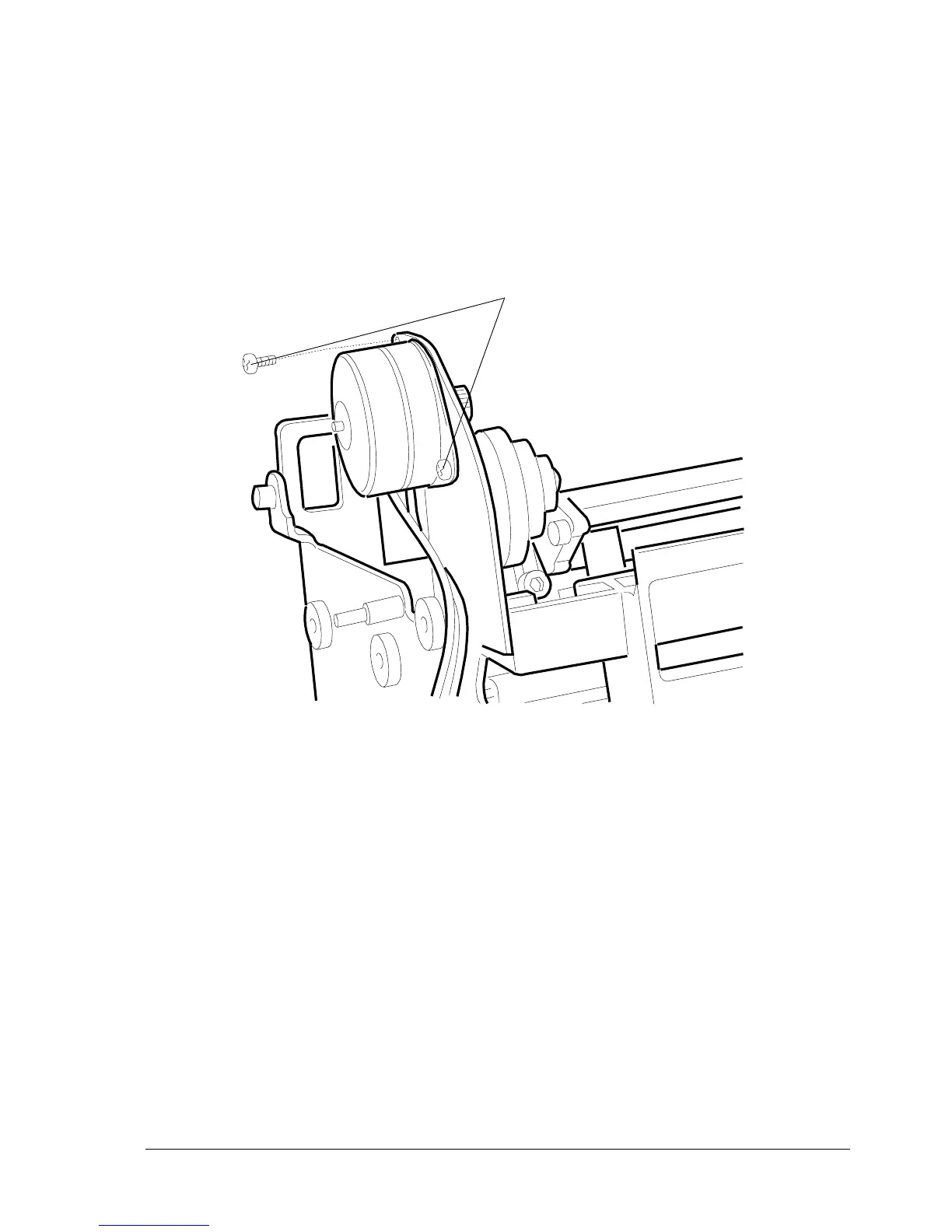

- Remove the two screws (1) that secure the motor to the left-hand side of the frame and remove the
motor from the machine.
Fig. 9-14
1
