3.7.6.1 PAPER JAMS AT THE FRONT DOCUMENT FEED SLOT
To remove a jammed document from the front feed slot, carefully pull the document from the printer to
avoid ripping it.
3.7.6.2 PAPER JAMS INSIDE THE PRINTER
Proceed as follows to remove a document from inside the printer:
- Open the cover without powering off the machine.
- Lift the upper mechanical assy by using the upper mechanical assy lifting lever.
- Remove the jammed document by carefully pulling it from the printer.
Fig. 3-22 Removing a Document from Inside the Printer

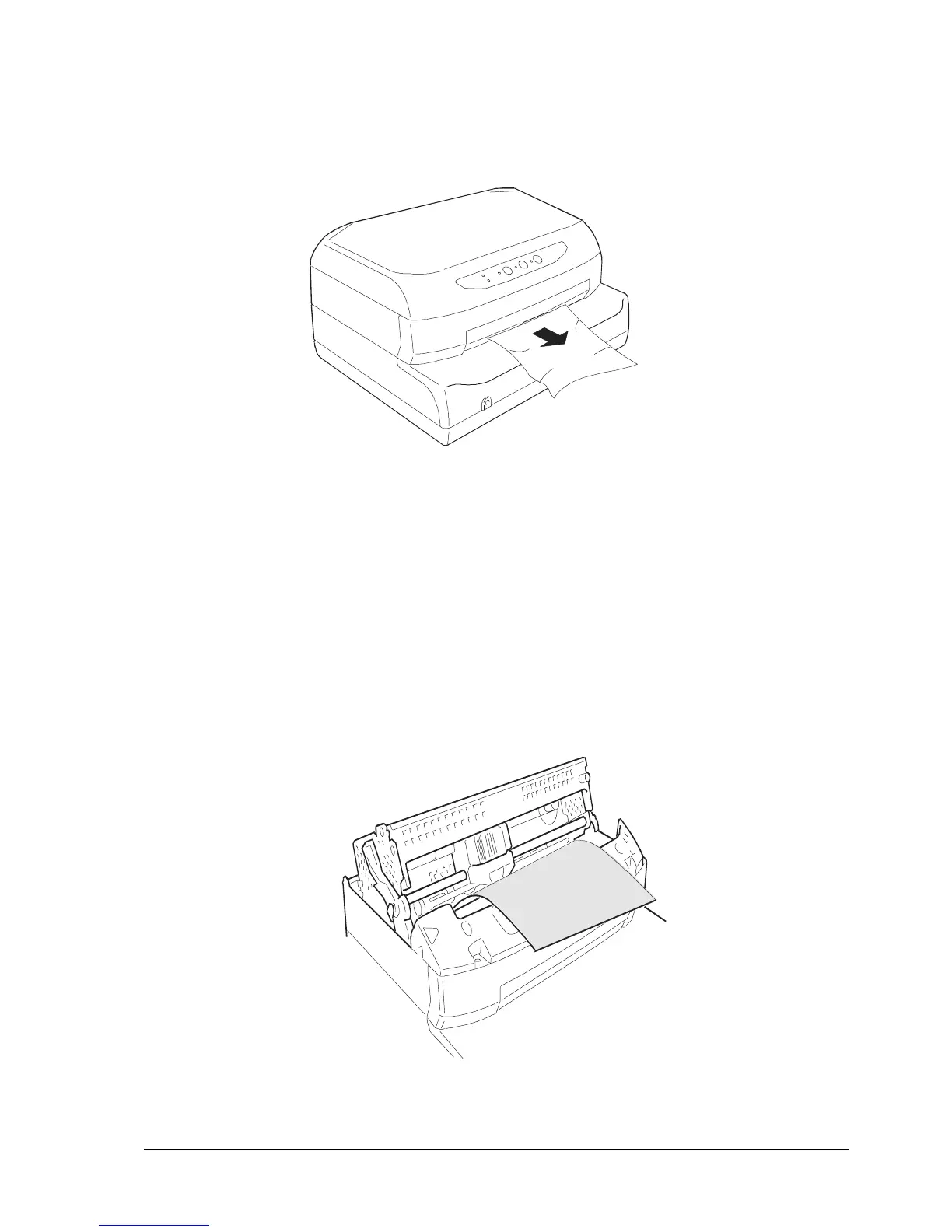

Fig. 3-21 Removing the Document from the Front Feed Slot
