Inverter Positioning Section 5-3

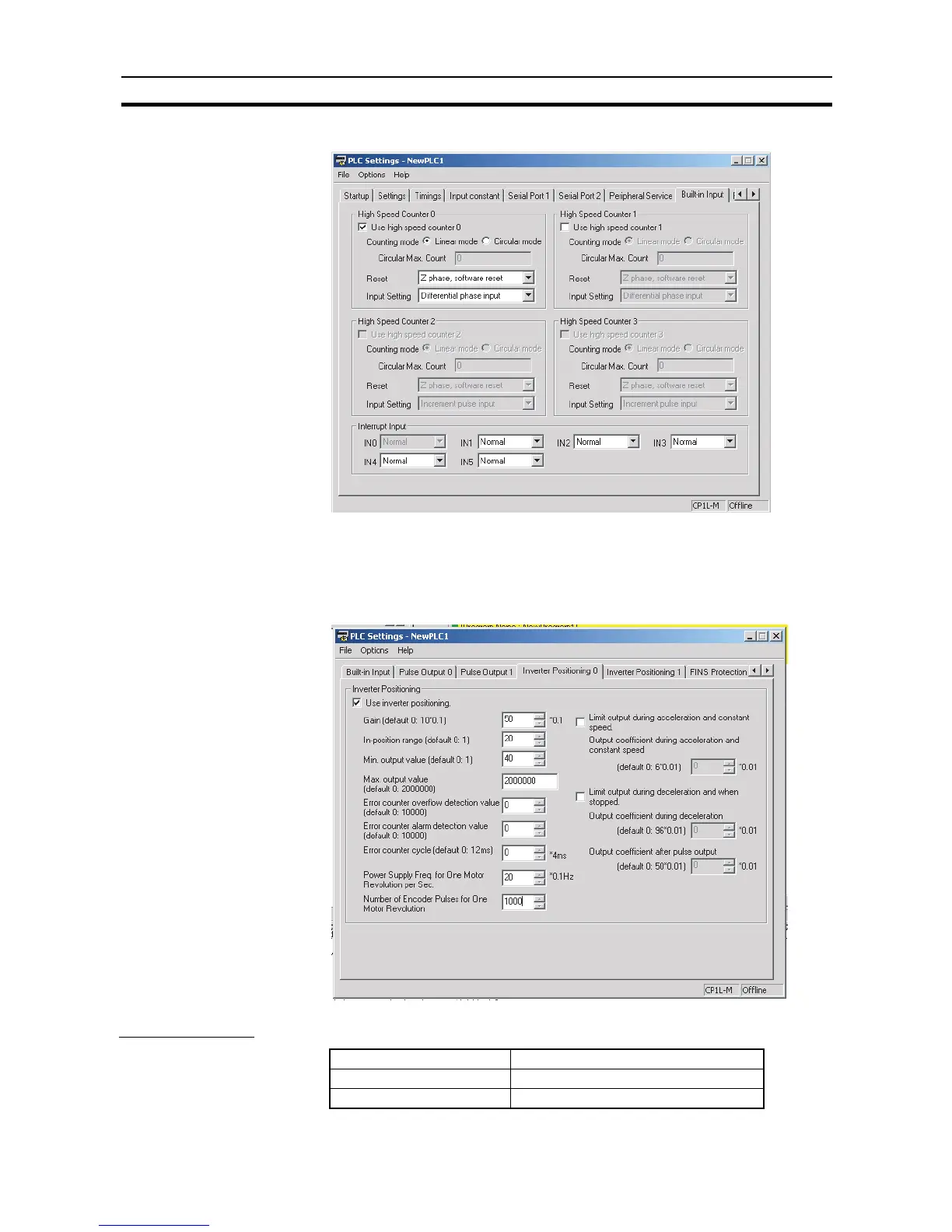

■ High-speed Counter Settings (on Built-in Input Tab Page)
Note (1) Set high-speed counter 0 when using inverter positioning 0. Set high-
speed counter 1 when using inverter positioning 1.
(2) Use linear mode for inverter positioning.
■ Inverter Positioning Settings (on Inverter Positioning 0 or 1 Tab Page)
Ladder Program The following Modbus-RTU communications parameters are used.
Baud rate 9,600 bits/s
Format 8, 1, E
Serial communications mode Serial Gateway
To Next Page
