Omron CQM1H - PROGRAM User Manual

212
Data Areas, Definer Values, and Flags Section 5-3
can, however, be crossed for a single operand, i.e., the last bit in the IR area
may be specified for an operand that requires more than one word as long as
the SR area is also allowed for that operand.
The Flags subsection lists flags that are affected by execution of an instruc-
tion. These flags include the following SR area flags.
ER is the flag most commonly used for monitoring an instruction’s execution.
When ER goes ON, it indicates that an error has occurred in attempting to
execute the current instruction. The Flags subsection of each instruction lists
possible reasons for ER being ON. ER will turn ON if operands are not
entered correctly. Instructions are not executed when ER is ON. A table of
instructions and the flags they affect is provided in Appendix B Error and
Arithmetic Flag Operation.

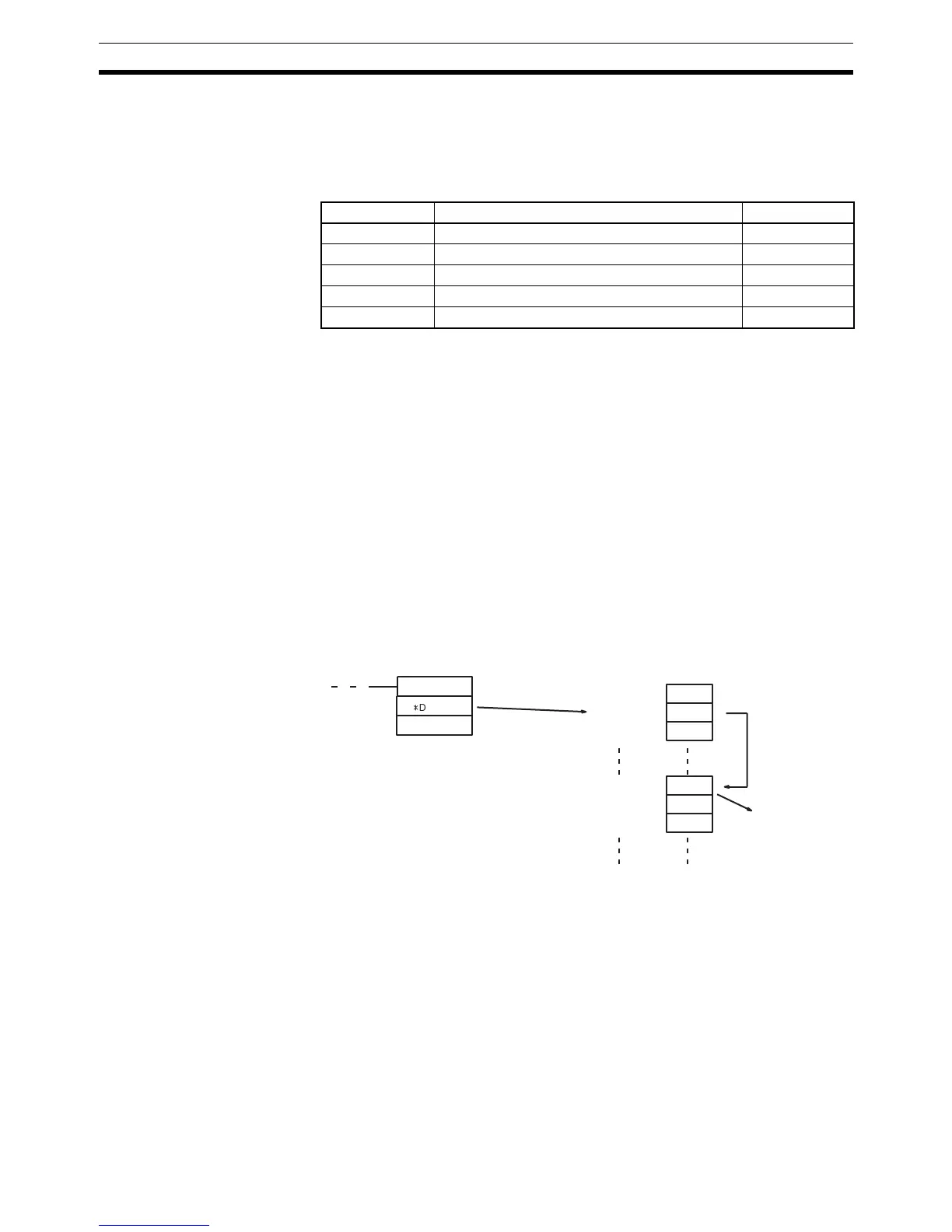

Indirect Addressing When the DM area is specified for an operand, an indirect address can be
used. Indirect DM addressing is specified by placing an asterisk before the
DM: *DM.
When an indirect DM address is specified, the designated DM word will con-
tain the address of the DM word that contains the data that will be used as the
operand of the instruction. If, for example, *DM 0001 was designated as the
first operand and LR 00 as the second operand of MOV(21), the contents of
DM 0001 was 1111, and DM 1111 contained 5555, the value 5555 would be
moved to LR 00.
When using indirect addressing, the address of the desired word must be in
BCD and it must specify a word within the DM area. In the above example, the
content of *DM 0000 would have to be in BCD between 0000 and 1999.
Designating Constants Although data area addresses are most often given as operands, many oper-
ands and all definers are input as constants. The available value range for a
given definer or operand depends on the particular instruction that uses it.
Constants must also be entered in the form required by the instruction, i.e., in
BCD or in hexadecimal.
Abbreviation Name Bit
ER Instruction Execution Error Flag 25503
CY Carry Flag 25504
GR Greater Than Flag 25505
EQ Equals Flag 25506
LE Less Than Flag 25507
MOV(21)
* DM 0001
LR 00
Word Content
DM 0000 4C59
DM 0001 1111
DM 0002 F35A
DM 1111 5555
DM 1113 2506
DM 1114 D541
5555 moved
to LR 00.
Indicates
DM 1111.
Indirect
address
