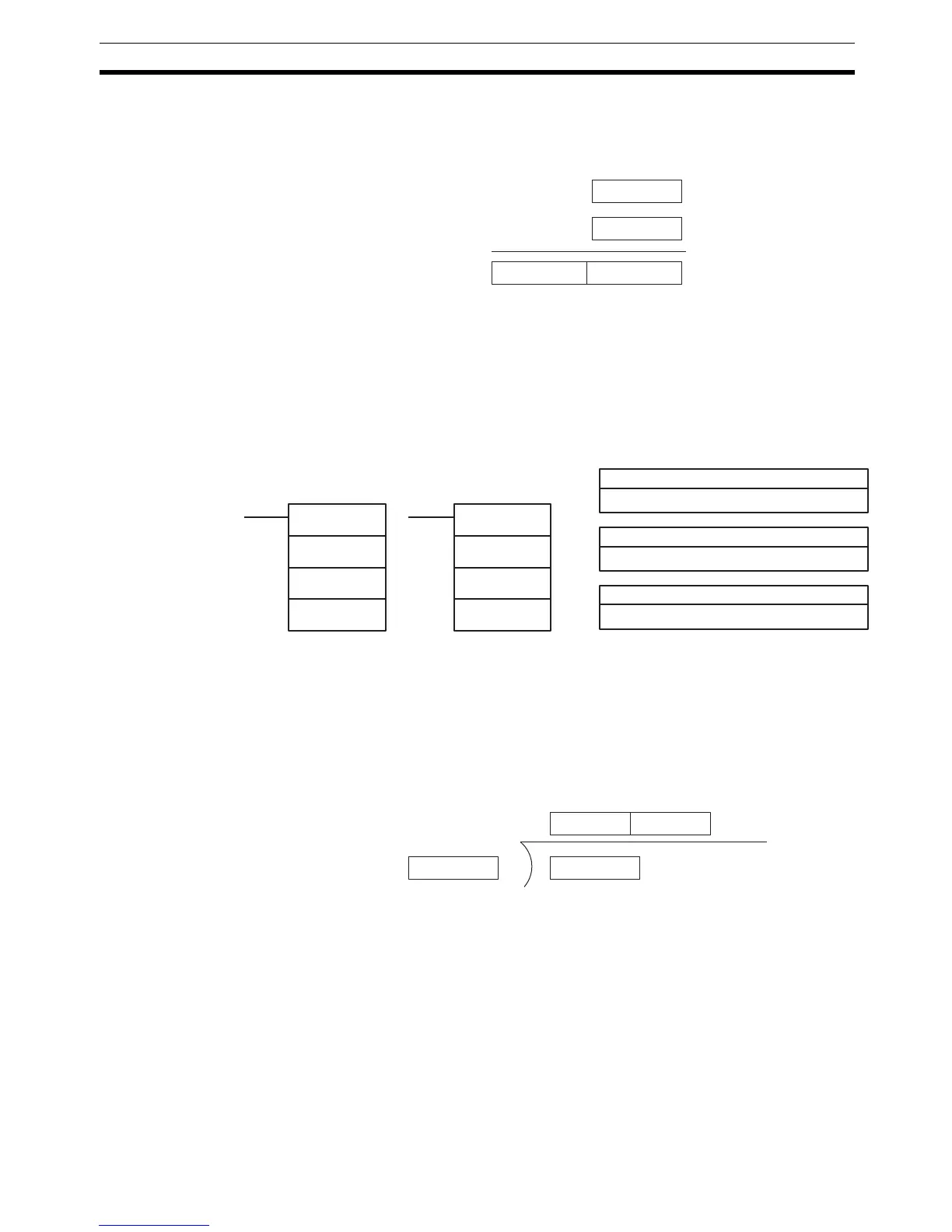

331
Binary Calculation Instructions Section 5-22
Description When the execution condition is OFF, MLB(52) is not executed. When the exe-
cution condition is ON, MLB(52) multiplies the content of Md by the contents
of Mr, places the rightmost four digits of the result in R, and places the left-
most four digits in R+1.
Flags ER: Indirectly addressed EM/DM word is non-existent.
(Content of *EM/*DM word is not BCD, or the EM/DM area boundary
has been exceeded.)
EQ: ON when the result is 0.
5-22-4 BINARY DIVIDE – DVB(53)
Limitations DM 6143 to DM 6655 cannot be used for R.
DVB(53) cannot be used to divide signed binary data, but DBS(––) can be
used. Refer to 5-22-9 SIGNED BINARY DIVIDE – DBS(––) for details.
Description When the execution condition is OFF, DVB(53) is not executed. When the exe-
cution condition is ON, DVB(53) divides the content of Dd by the content of Dr
and the result is placed in R and R+1: the quotient in R, the remainder in R+1.
Flags ER: Dr contains 0.
Indirectly addressed EM/DM word is non-existent.
(Content of *EM/*DM word is not BCD, or the EM/DM area boundary
has been exceeded.)
EQ: ON when the result is 0.
Md
Mr
R +1 R
X
Dd: Dividend word (binary)
IR, SR, AR, DM, EM, HR, TIM/CNT, LR, #
Dr: Divisor word (binary)
IR, SR, AR, DM, EM, HR, TIM/CNT, LR, #
Ladder Symbols
Operand Data Areas
R: First result word
IR, SR, AR, DM, EM, HR, LR
DVB(53)
Dd
Dr
R
@DVB(53)
Dd
Dr
R
Dd Dr
R R + 1
Quotient Remainder
