Omron CQM1H - PROGRAM User Manual

491
Cycle Time Section 7-3
7-3-3 I/O Response Time
The I/O response time is the time it takes after an input signal has been
received (i.e., after an input bit has turned ON) for the PC to check and pro-
cess the information and to output a control signal (i.e., to output the result of
the processing to an output bit). The I/O response time varies according to the
timing and processing conditions.
The minimum and maximum I/O response times are shown here, using the
following program as an example.

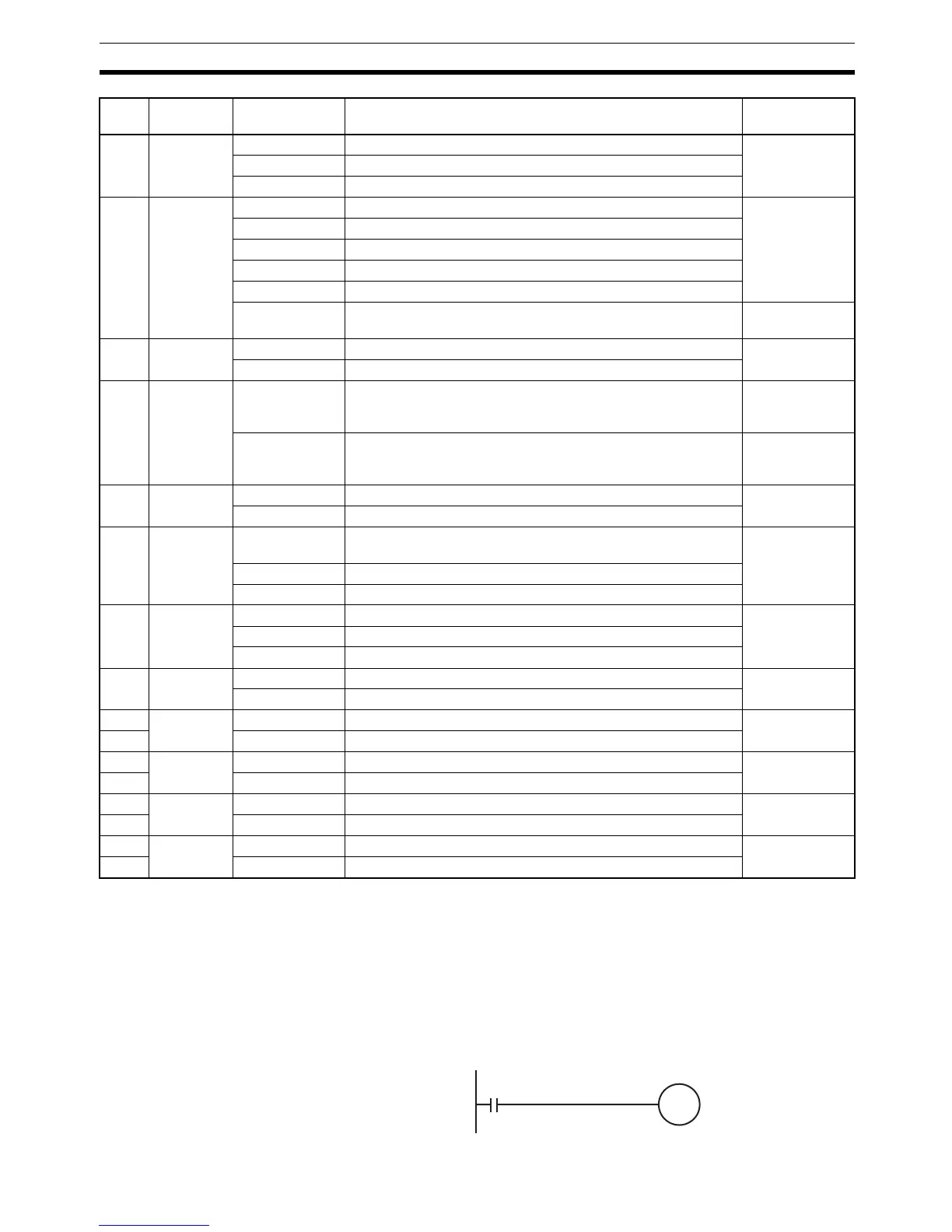

–– SRCH 49.5 Searching word, results to word 1.875
1.99 ms Searching 1,024 word via *DM, results to *DM
11.34 ms Searching 6,144 word via *DM, results to *DM
–– STUP 160.8 Built-in RS-232C port, word designation 1.875
177.0 Built-in RS-232C port, *DM designation
160.8 Peripheral port, word designation
177.0 Peripheral port, *DM designation
300.0 Serial Communications Board port 1 or 2, word designation
317.0 Serial Communications Board port 1 or 2 port, *DM designa-
tion
–– TAN 1.10 ms Word → word 1.875
1.14 ms *DM → *DM
–– TTIM 41.8 Set value specified in word Reset: 40.0
IL: 39.4
JMP: 21.0
63.2 Set value specified in *DM Reset: 59.4
IL: 60.1
JMP: 34.0
–– SUM 57.4 Adding one word, results to word 1.875
5.15 ms Adding 999 words via *DM, results to *DM
–– XFRB 29.2 Transferring 1 bit between words with a constant for control
data
1.875
45.3 Transferring 1 bit between words with a word for control data
226.5 Transferring 255 bits between *DM with *DM for control data
–– ZCP 31.4 Comparing a constant to a word range 1.875
36.3 Comparing a word to a word range
88.7 Comparing *DM to a *DM range
–– ZCPL 61.0 Comparing words to a word range 1.875
116.3 Comparing *DM to a *DM range
–– +F 110.4 Word + word → word 1.875
–– 162.4 *DM + *DM → *DM
–– –F 122.0 Word – word → word 1.875
–– 173.8 *DM – *DM → *DM
–– *F 120.0 Word x word → word 1.875
–– 172.0 *DM x *DM → *DM
–– /F 135.6 Word ÷ word → word 1.875
–– 187.0 *DM ÷ *DM → *DM
Code Mnemonic ON execution
time (µs)
Conditions OFF execution
time (µs)
Input
Output

Omron CQM1H - PROGRAM Specifications

General

I/O Capacity	Up to 512 points
Power Supply	100 to 240 VAC, 50/60 Hz or 24 VDC (depending on model)
Instruction Set	Basic and advanced instructions
Operating Temperature	0 to 55°C
Program Capacity	7.2K to 15.2K steps
Communication Ports	RS-232C
Expansion Slots	Up to 3 expansion units
Type	Programmable Logic Controller (PLC)
CPU Type	RISC
Program Memory	7.2K to 15.2K steps
I/O Points	512 max
Expansion Capability	Up to 3 expansion units
Data Memory	RAM (battery backup)
