362
Floating-point Math Instructions Section 5-24
Flags ER: Indirectly addressed EM/DM word is non-existent.
(Content of *EM/*DM word is not BCD, or the EM/DM area boundary
has been exceeded.)
ON if the source data is not recognized as floating-point data.
EQ: ON if both the exponent and mantissa of the result are 0.
OF: ON if the absolute value of the result is too large to be expressed as a
32-bit floating-point value. (The result will be output as
±∞.)
UF: ON if the absolute value of the result is too small to be expressed as a
32-bit floating-point value. (The result will be output as 0.)
5-24-11 SINE: SIN(––)
Limitations The source data in S+1 and S must be in IEEE754 floating-point data format.
DM 6143 to DM 6655 cannot be used for R.
Description When the execution condition is OFF, SIN(––) is not executed. When the exe-
cution condition is ON, SIN(––) calculates the sine of the angle (in radians)
expressed as a 32-bit floating-point value in S+1 and S and places the result
in R+1 and R. (The floating point source data must be in IEEE754 format.)
Specify the desired angle (–65,535 to 65,535) in radians in S+1 and S. If the
absolute value of the angle exceeds 65,535, an error will occur and the
instruction won’t be executed. For information on converting from degrees to
radians, see 5-24-9 DEGREES TO RADIANS: RAD(––).

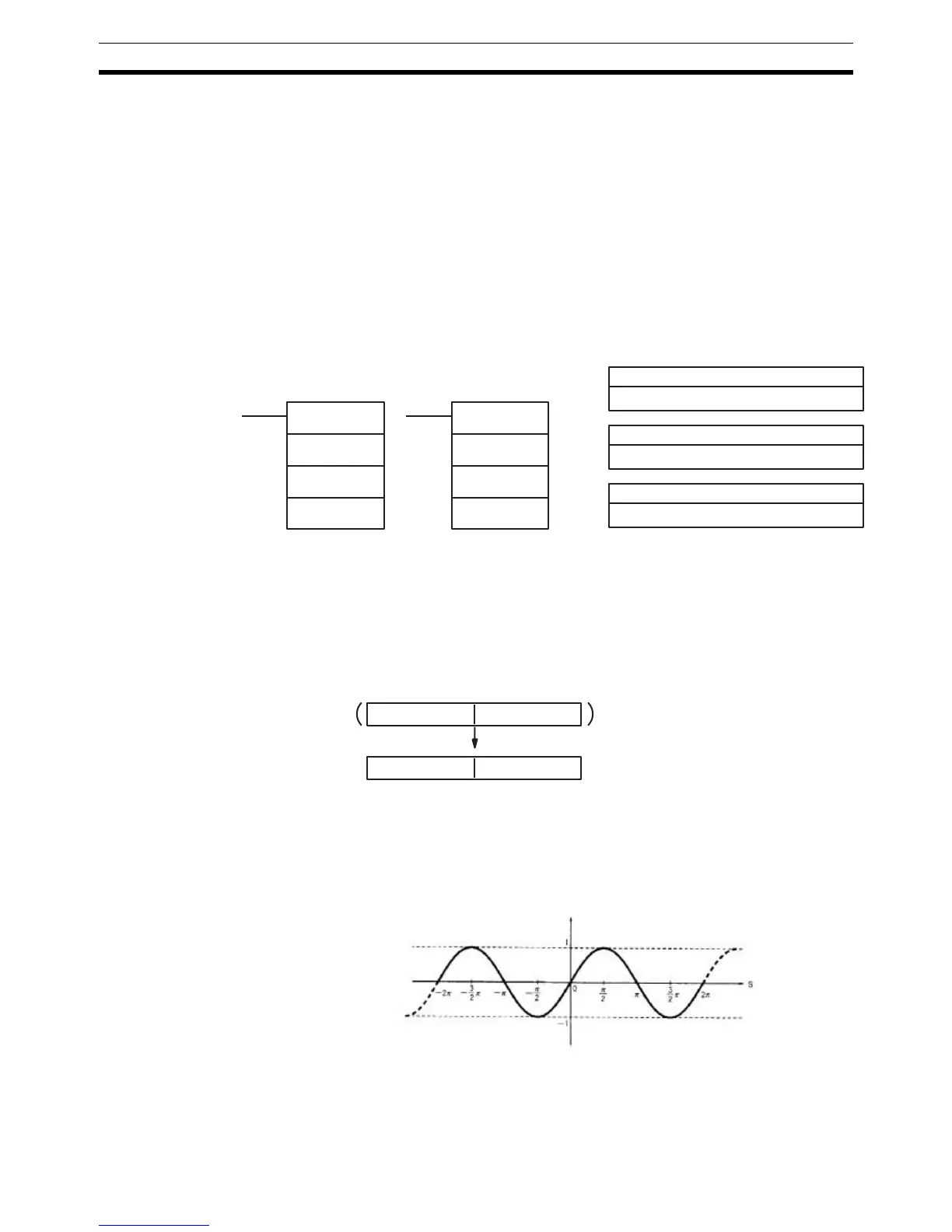

The following diagram shows the relationship between the angle and result.
Flags ER: Indirectly addressed EM/DM word is non-existent.
(Content of *EM/*DM word is not BCD, or the EM/DM area boundary
has been exceeded.)
S: First source word
IR, SR, AR, DM, EM, HR, TIM/CNT, LR
R: First result word
IR, SR, AR, DM, EM, HR, LR
Ladder Symbols
Operand Data Areas
Third operand: Always 000
−−−
SIN(−− )
S
R
000
@SIN(−− )
S
R
000
R+1 R
S
Source (32-bit floating-point data)
S+1
Result (32-bit floating-point data)
SIN
S: Angle (radian) data
R: Result (sine)
R
