Omron CQM1H - PROGRAM User Manual

287
Comparison Instructions Section 5-19
Precautions Placing other instructions between CPS(––) and the operation which
accesses the EQ, LE, and GR flags may change the status of these flags. Be
sure to access them before the desired status is changed.
Flags ER: Indirectly addressed EM/DM word is non-existent.
(Content of *EM/*DM word is not BCD, or the EM/DM area boundary
has been exceeded.)
EQ: ON if Cp1 equals Cp2.
LE: ON if Cp1 is less than Cp2.
GR: ON if Cp1 is greater than Cp2.

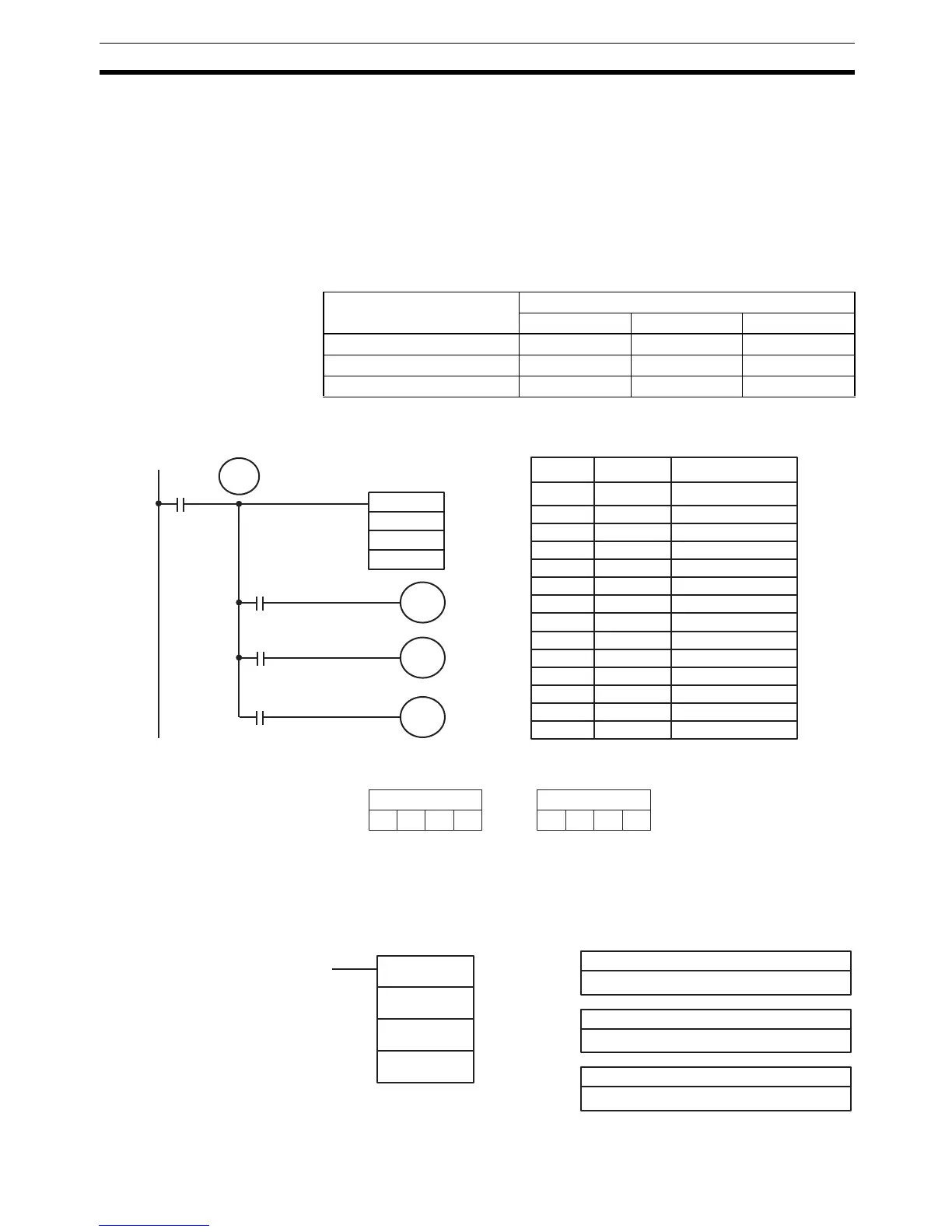

Example In the following example, the content of 102 is greater than that of DM 0020,
so 10000 is turned ON and the other bits, 10001 and 10002, are turned OFF.
5-19-7 DOUBLE SIGNED BINARY COMPARE – CPSL(––)
Comparison result Flag status
GR (SR 25505) EQ (SR 25506) LE (SR 25507)
Cp1 < Cp2 0 0 1
Cp1 = Cp2 0 1 0
Cp1 > Cp2 1 0 0
CPS(−−)
DM 0020
102
00500
25505
10000
25507
10002
TR
0
25506
10001
Greater Than
Equal
Less Than
000
Address Instruction Operands
00000 LD 00500
00001 OUT TR 0
00002 CPS(−−)
102
DM 0020
000
00003 AND 25505
00004 OUT 10000
00005 LD TR 0
00006 AND 25506
00007 OUT 10001
00008 LD TR 0
00009 AND 25507
00010 OUT 10002
Cp2: DM 0020
AE3 5
>
Cp1: 102
6FA4
(28,580 decimal) (−20,939 decimal)
Cp1: First compare word
IR, SR, AR, DM, EM, HR, TIM/CNT, LR, #
Cp2: Second compare word
IR, SR, AR, DM, EM, HR, TIM/CNT, LR, #
Ladder Symbols Operand Data Areas
CPSL(−− )
Cp1
Cp2
000
000
Not used. Set to 000.
